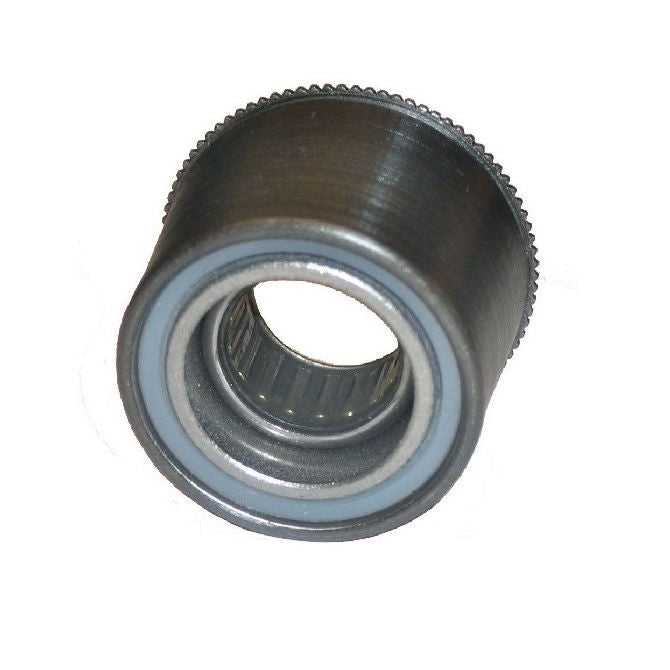

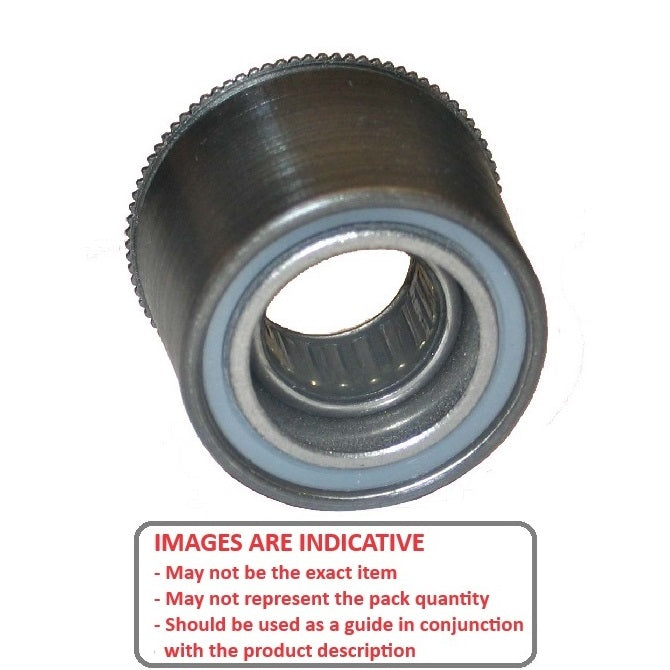

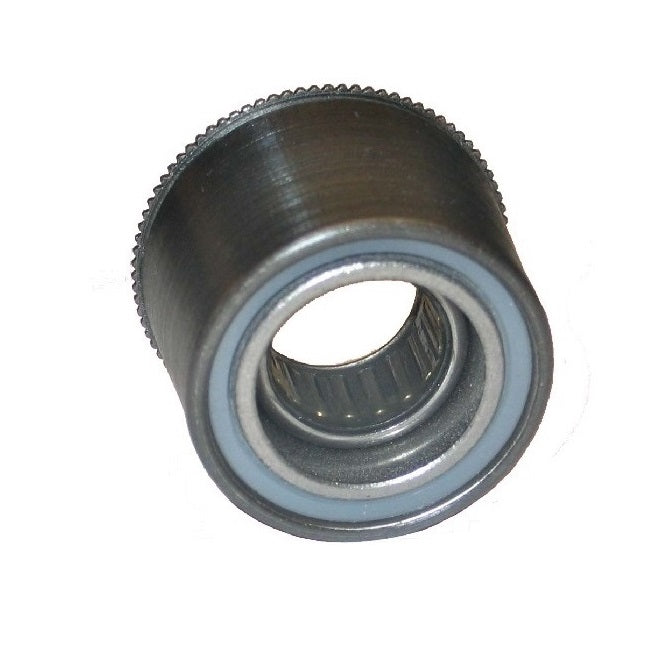

SBS1-187
Bearings - 4.762 mm x 16.256 to 16.332 x 7.14 mm
MBA
Qty: 5 available now
Couldn't load pickup availability
Base Category: Bearings - Self Clinching
Top Level Category: Bearings - Self Clinching - Self Aligning - Miniature
Product Details:Nominal Shaft Size: 4.762mm
Chrome Steel in Carbon Steel

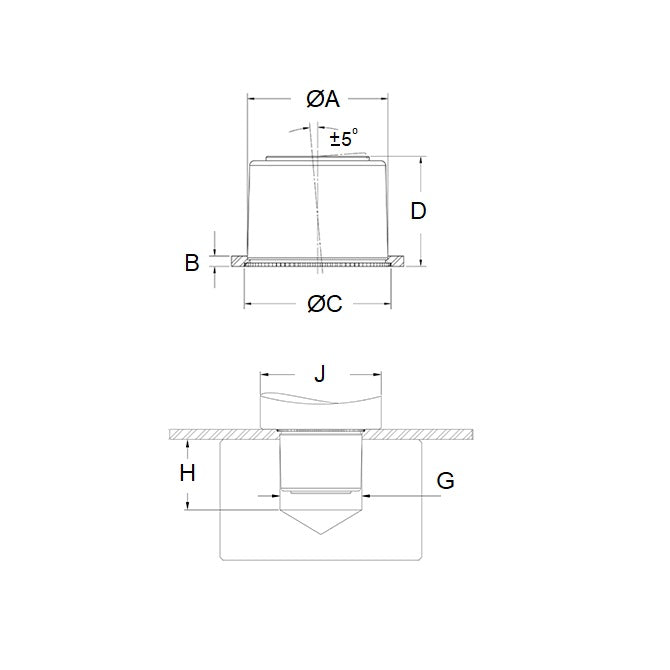

- Min. Panel Hole (A): 16.256 to 16.332mm
- Overall Width (B): 7.14mm
- Max Speed: 40000RPM
- Clinching Diameter (C): 17.5mm
- Max. Radial Dynamic Load: 50kgf
- Radial Static Load Capacity: 27kgf
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: 1437N12
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
