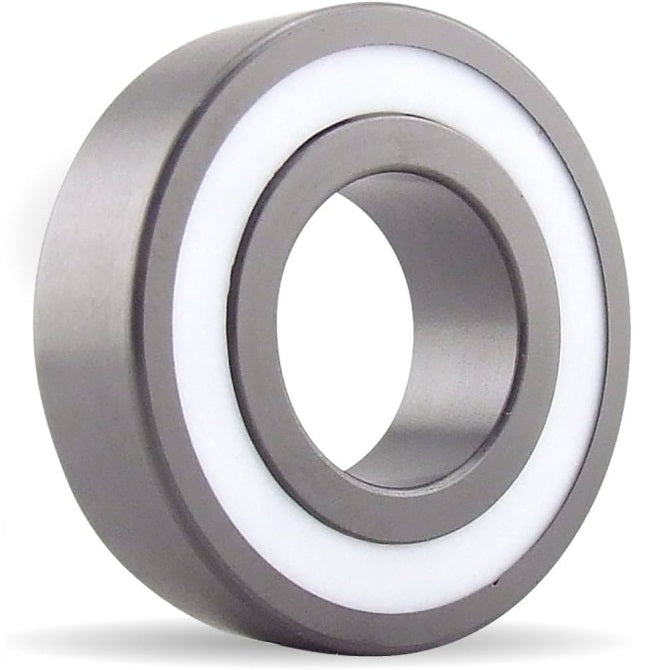

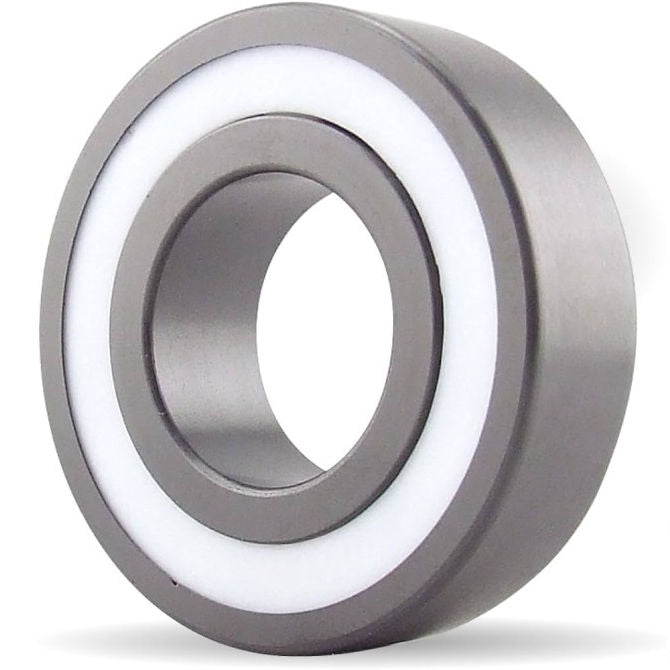

Single Row Ball Bearings - 3x10x4 mm Unflanged - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals Bearing

CSN-623-TTS-MC34-PK-DRY (Each)

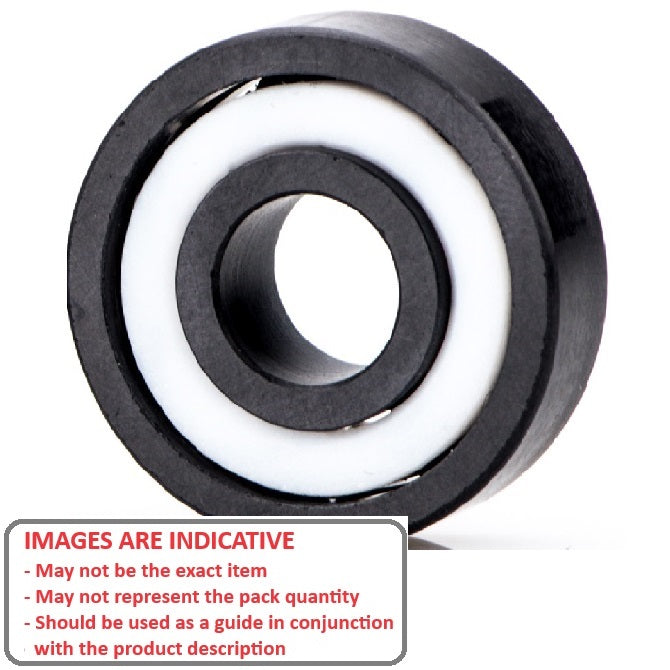

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 3x10x4 mm - Ceramic Silicon Nitride - PEEK Cage - PTFE Seals
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Ceramic Bearings PDF Download
Price:
$34.05 AUD
$34.05 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now

Order 50 or more
for $30.65 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 04, 2026

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4

Product Details


Full ceramic with Peek retainer and PTFE Seals

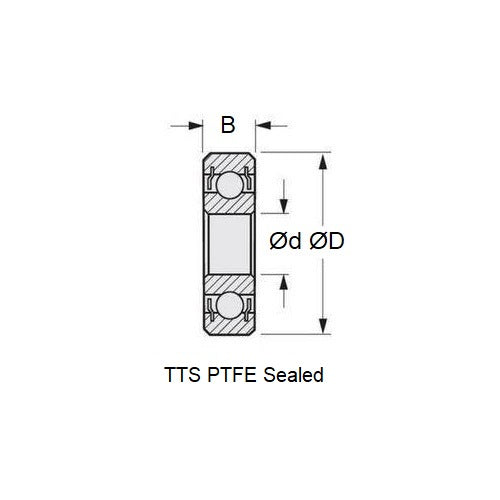

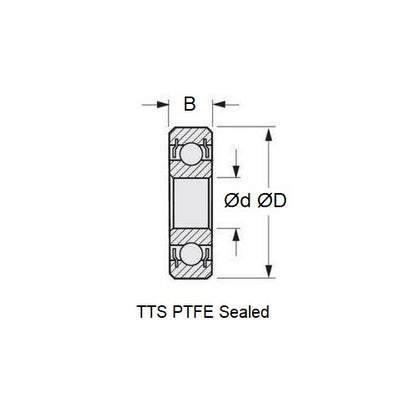

ID (d): 3.000mm
+ 0.000 / - 0.0075
(3.000mm is 0.118 in.)

Ceramic Silicon Nitride - PEEK Cage - PTFE Seals
  • ID (d): 3.000mm
    + 0.000 / - 0.0075
    (3.000mm is 0.118 in.)
  • O.D. (D): 10.000mm
    + 0.000 / - 0.0075
    (10.000mm is 0.394 in.)
  • Width (B): 4.000mm
    + 0.000 / - 0.125
    (4.000mm is 0.157 in.)
  • Precision Grade: Abec 1
  • Closure Type: TTS
  • Bearing Type: Radial
  • Lubricant: No Lube

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • SHIMANO® 194
  • CSN623TTSTFMC34PKDRY
  • CSN623PKTTS
  • CSN623PKTTSDRY
  • CSN623PKTTSMC34DRY
  • 623BASIC

Used for

  • Fishing Reel Parts
  • Abu Garcia® - 10000C-1988 - Replacement Bearing
  • Abu Garcia® - 4500C - Bearing
  • Abu Garcia® - 4600C - Bearing
  • Abu Garcia® - 5600 - Bearing
  • Abu Garcia® - 6500 - Level Wind Bearing
  • Abu Garcia® - 6500C - 6500C3 - Spool Bearing Check Size
  • Abu Garcia® - 6600C - Bearing
  • Abu Garcia® - 7000 - Spool Bearing
  • Abu Garcia® - 7000-C3 - Spool Bearing
  • Abu Garcia® - 7500 - Spool Bearing
  • Abu Garcia® - 9000C - Replacement Bearing
  • Abu Garcia® - BM3600C - Spool Bearing
  • Abu Garcia® - BM5600C - Spool Bearing
  • Abu Garcia® - PM1600C - Spool Bearing
  • Abu Garcia® - SM1600C - Spool Bearing
  • Abu Garcia® - T3000C - Spool Bearing
  • Abu Garcia® - ULTRA MAGS III,III - Bearing
  • Shimano® - Bantam 10X - Spool Bearing 3-10-4mm Right Side
  • Shimano® - Bass One - Spool Bearing 3-10-4mm Outside
  • Shimano® - Calais CL200 / CL200-5 - Spool Bearing 3-10-4mm Both Sides
  • Shimano® - Calcutta 50-100-150-200-250-251-400-600 - Bearing
  • Shimano® - Chronarch 100SF - Spool Bearing 3-10-4mm
  • Shimano® - Curado 200 - Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
