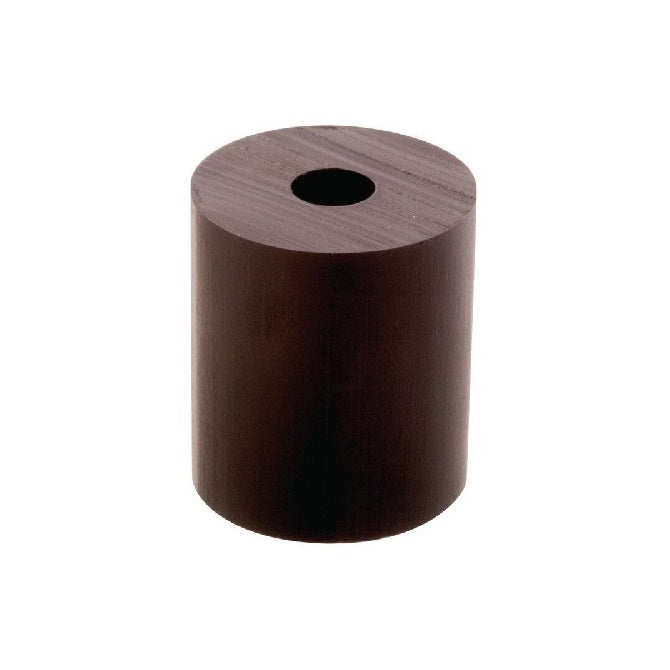

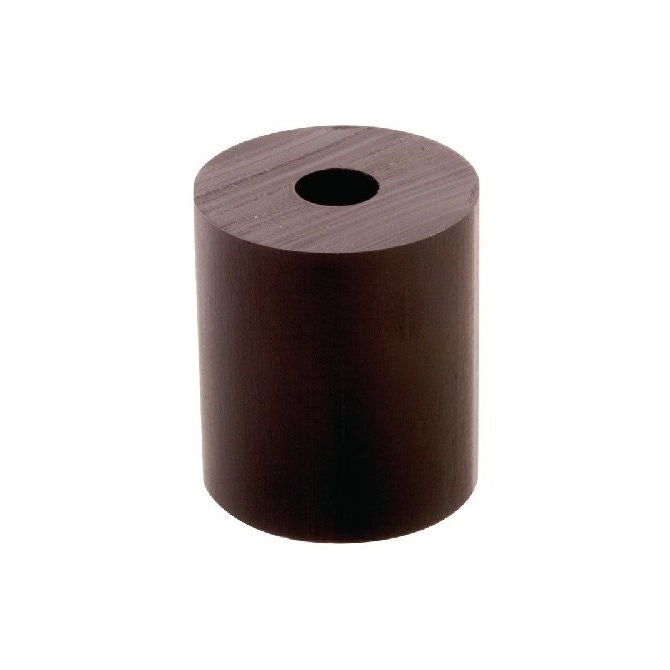

Bumpers Mounts - 38.1x19.1x38.1 mm Urethane Springs - Polyurethane Spring

CSU-0381-038 (Each)

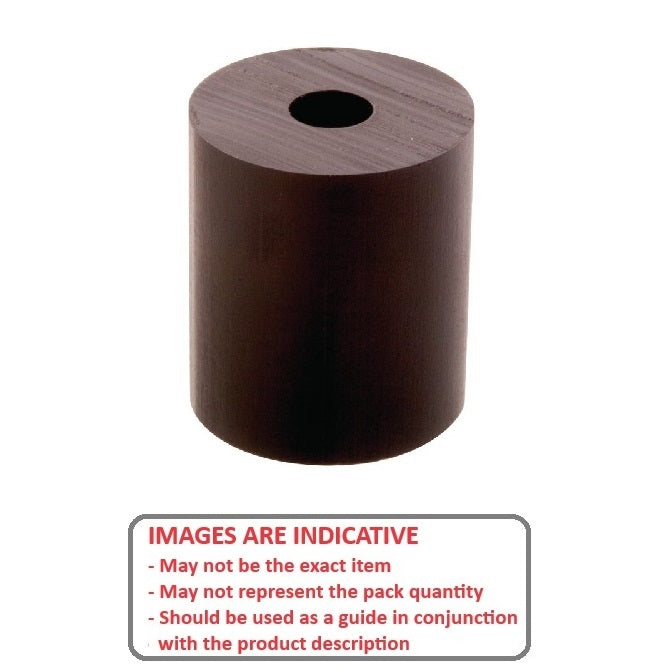

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Bumpers Mounts - 38.1x19.1x38.1 mm - Polyurethane
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Spings Catalogue PDF
Price:
$32.50 AUD
$39.00 AUD $32.50 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 4 available now

Order 50 or more
for $29.25 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 16, 2026

1-1/2x3/4x1-1/2 inch Spring - 38.1x19.1x38.1 mm Bumpers Mounts - Polyurethane - Sold Per Each:

Base Category: Mounts - Bumpers

Top Level Category: Mounts - Bumpers - Urethane Springs

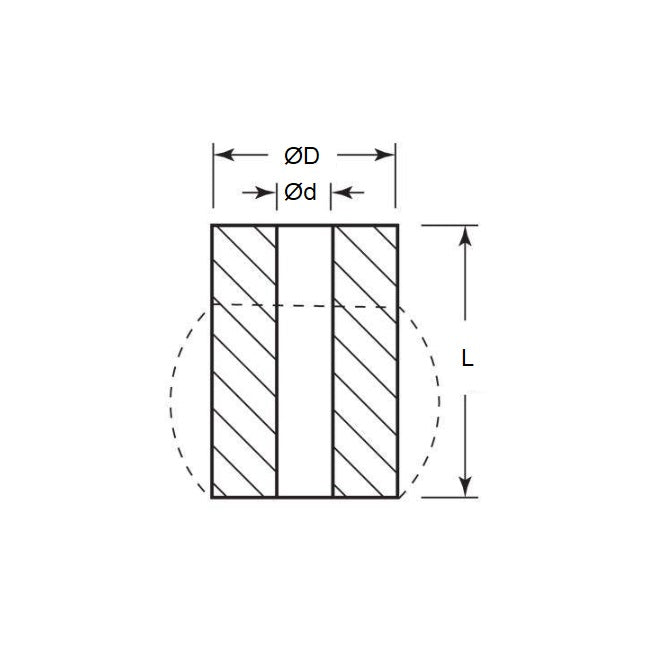

Product Details

Outside Diameter: 38.10mm
(38.10mm is 1.5 in.)

Polyurethane
  • Outside Diameter: 38.10mm
    (38.10mm is 1.5 in.)
  • Inside Diameter: 19.1mm
    (19.1mm is 0.752 in.)
  • Free Length: 38.1mm
    (38.1mm is 1.5 in.)
  • Load at 3.2mm Deflection: 328Kg
    +/- 20 Perc
  • Tensile Strength: 34470kPa

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Reid Tool® US-105
  • US105

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CSU0381038, CSU0381
View full details
