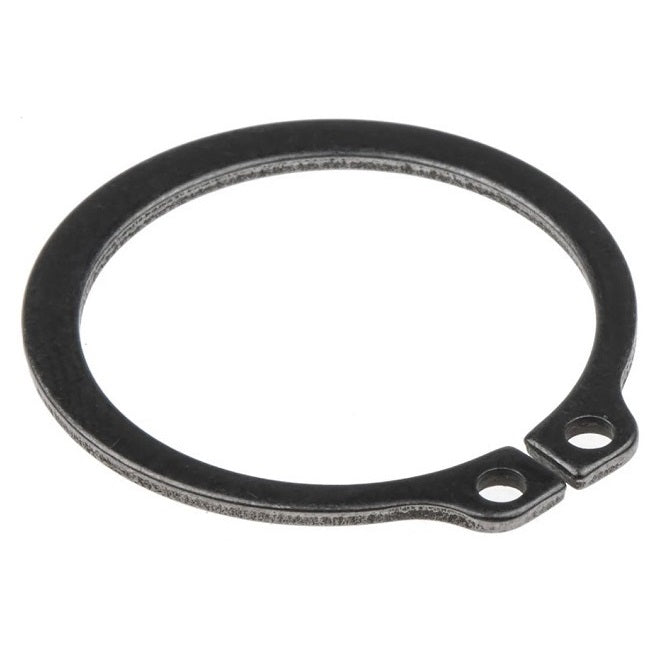

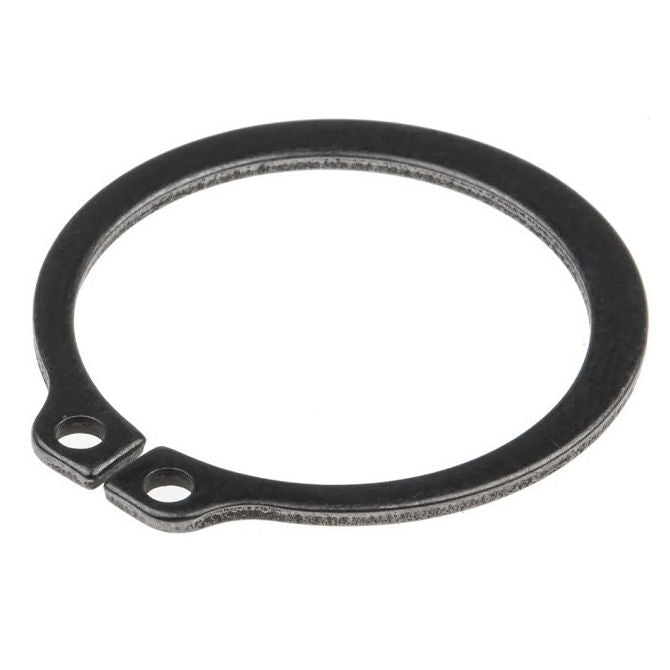

External Retaining Rings - 36x1.75x34 mm Circlips - Carbon Steel Circlip

Name: 1148497 | CCE-03600-C (PK-2) --- External Retaining Rings - 36x1.75x34 mm Circlips - Carbon Steel Circlip
Rating: 5.0 (1 reviews)

CCE-03600-C (PK-2)

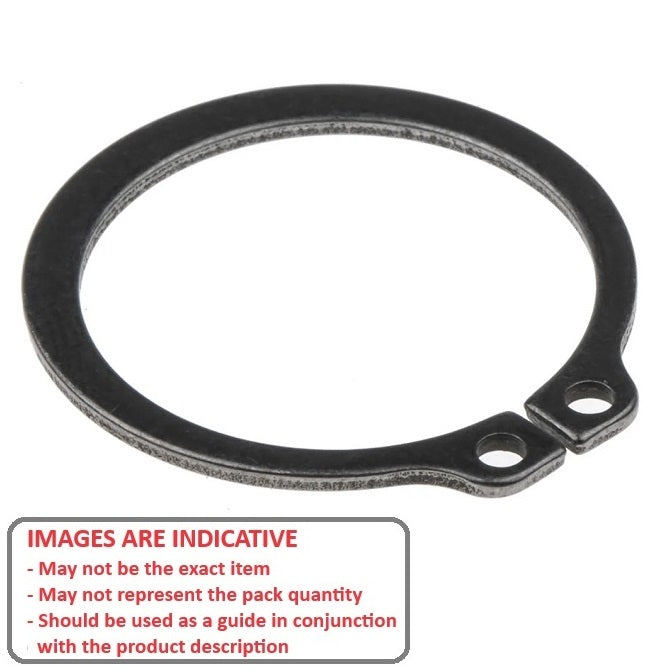

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

Equivalent

CCE-03600-C has been identified as a possible equivalent to 471036. Please take care when ordering equivalents, and check the product data displayed on this page to ensure it meets your requirements..

MBA

Store Name: Small Parts & Bearings

Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$3.95 AUD

Priced, Stocked and Sold Per 2 Units

Excludes GST and overseas Taxes & Duties

Qty: 72 available now
Order 50 or more for $3.56 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 1040

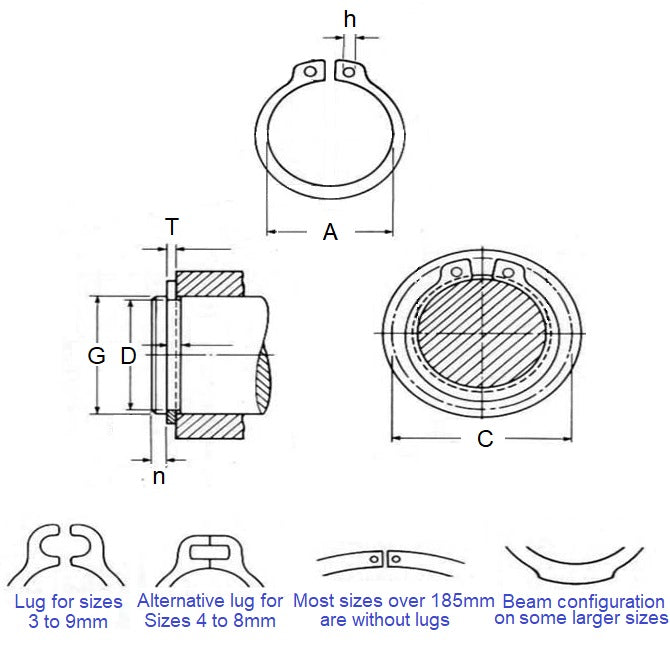

Shaft Diameter (Ds): 36.00mm
_{(36.00mm is 1.417 in.)}

Carbon Steel

Shaft Diameter (Ds): 36.00mm
_{(36.00mm is 1.417 in.)}
Clip Thickness (T): 1.75mm
_{+ 0.00 / - 0.25}
_{(1.75mm is 0.069 in.)}
Groove Dia. (Dg): 34.00mm
_{+ 0.00 / - 0.06}
_{(34.00mm is 1.339 in.)}
Approx. Loose Circlip ID (A): 33.20mm
Groove Width (W): 1.85mm
Clearance on Shaft (C1): 47.80mm
Clearance in Groove (C1): 45.20mm
Min. Lug Diameter (h): 2.50mm
Min. Extension (n): 3.00
Standard: DIN471

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison 471-036
ALTPART
98541A149
Seeger A-036
Seeger A36
Seeger A36-BLS
Seeger A36X1.75
Bossard BN818-036
Waldes D1400-036
NoCor DSH-036
Rotor Clip DSH-036
Seeger NZT.A36
BN818036
DSH036
471036
A036
1400-0360
14000360APP
1400-0360APP
A36BLS
D14000360
D1400-0360
D14000360APP
D1400-0360APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
