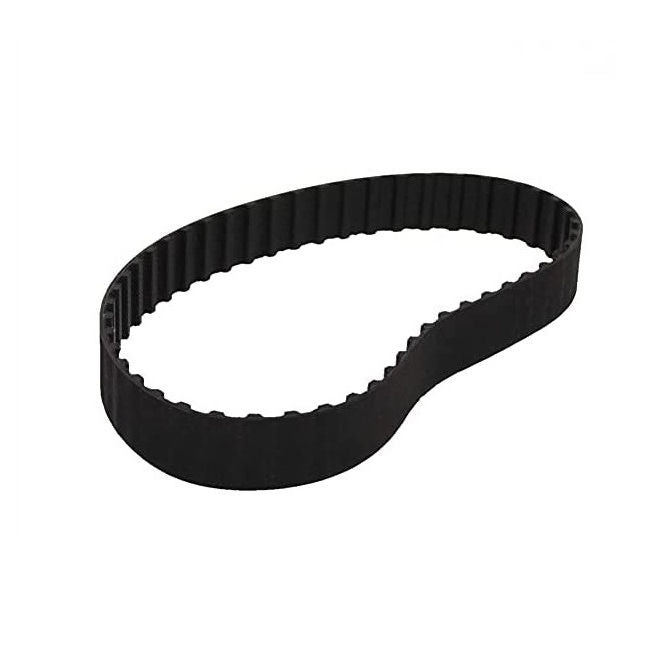

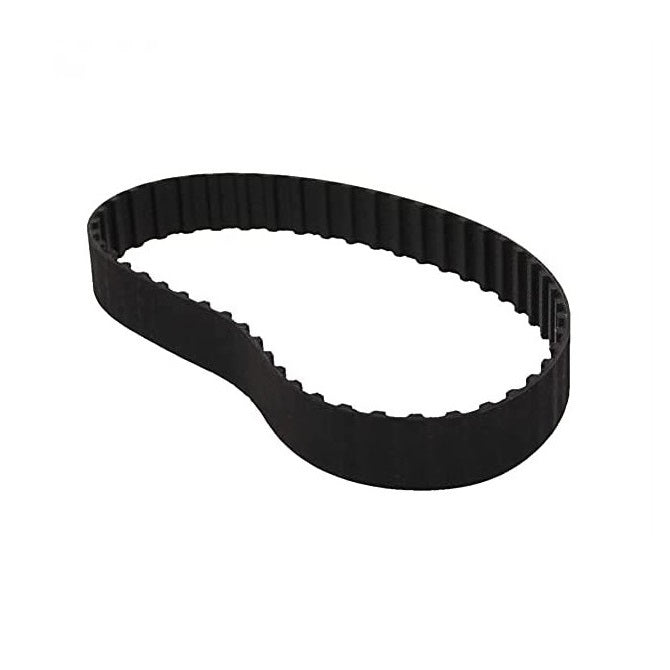

Inch Timing Belts - 35 tooth - 177.8x7.9 mm - Polyurethane with Kevlar Cords

B-XL-0035-0079-PKB

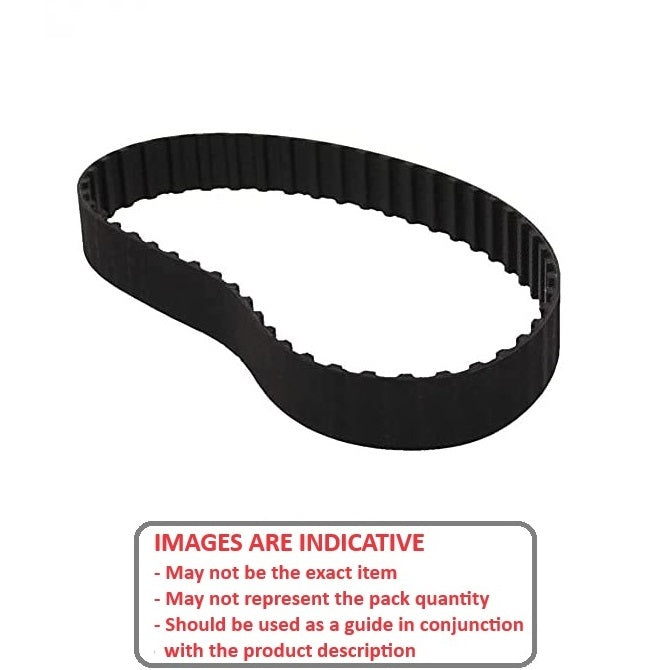

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Price:
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Qty: 2 available now
Only 2 may be ordered online. If you need a large quantity, please contact us.

Pickup available at Shop Location

Usually ready in 4 hours

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 5.080mm Pitch XL - 7.9mm Wide

Product Details:

Teeth: 35
Polyurethane with Kevlar Cords
  • Length: 177.8mm
  • Width: 7.9mm
  • Reinforcement: Kevlar
  • Appearance: Black
  • Breaking Strength: 1912N
  • Min Temperature (C): -18Deg C
  • Max Temperature (C): 66Deg C

Brand: MBA
Country of Origin: US

Alternative Parts Include: BXL00350080PK, A6B3M035080, A6B3035031, A6B3-035031, 70XL031UK, 1679K112, ALTPART, Gates

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
