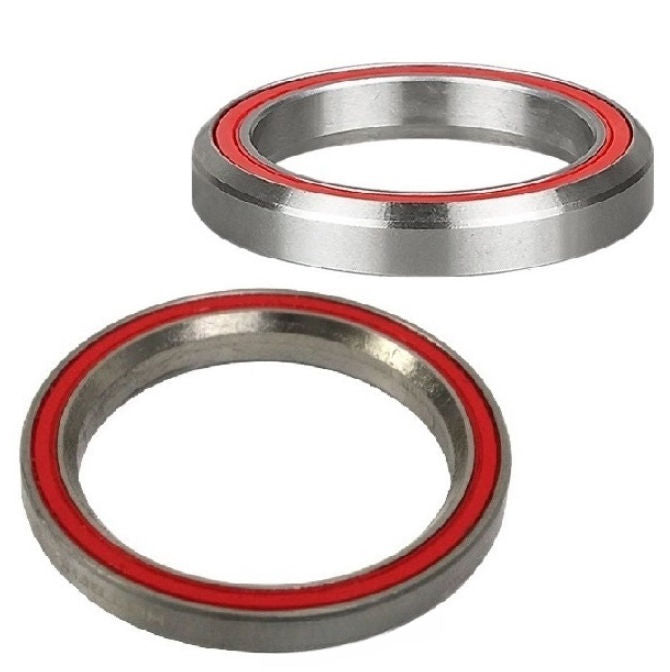

Single Row Ball Bearings - 30.5x41.8x8 mm - Chrome Steel SAE 52100

AMR418305-CEP-45-2RS-ECO

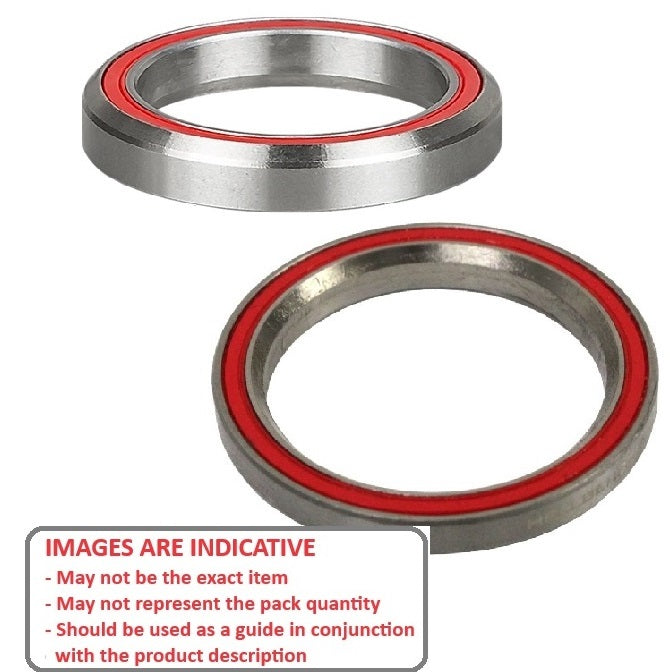

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

ECO

Additional resources:
Shafting
Price:
$9.95 AUD
$11.95 AUD $9.95 AUD
Each
Qty: 22 available now
Order 50 or more for $8.96 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Apr 24, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Chamfered Edges

Product Details:

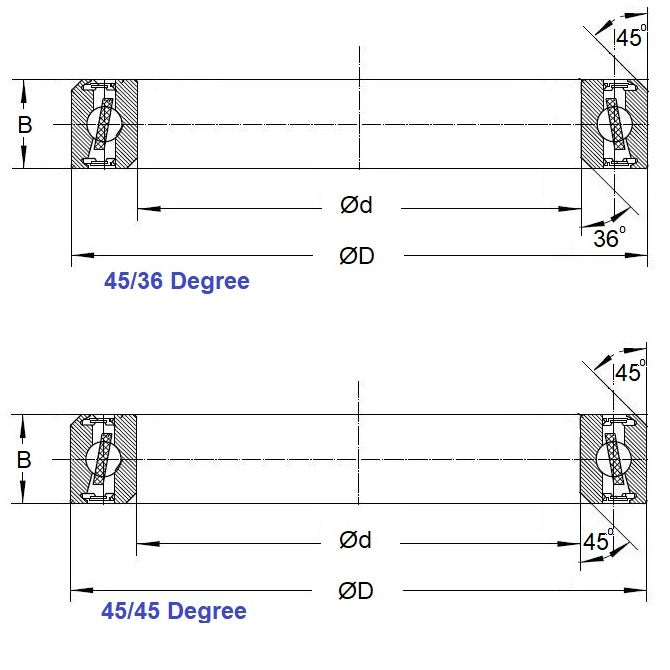

ID (d): 30.500mm
Chrome Steel SAE 52100
  • OD (D): 41.800mm
  • Width (B): 8.000mm
  • Precision: Bike
  • Closures: 2RS
  • Bearing Type: Chamferred Outer Edges
  • Chamfer Angle: 45°

Brand: ECO
Country of Origin: TW

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
