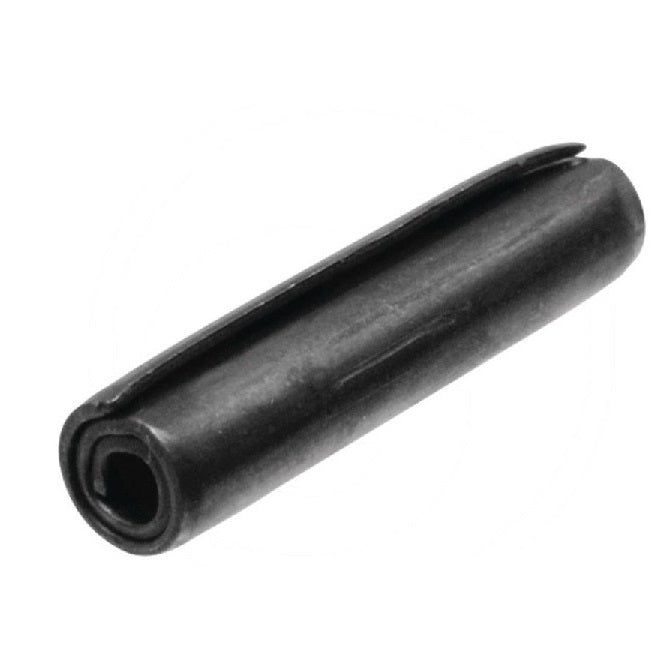

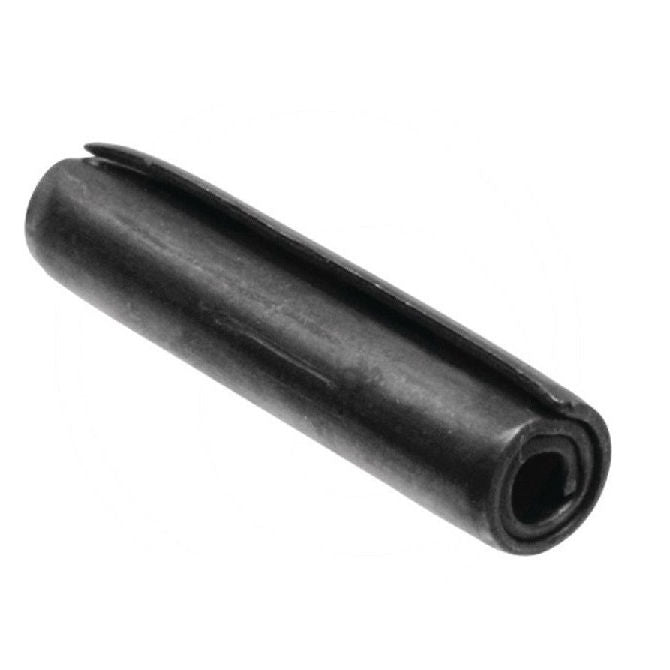

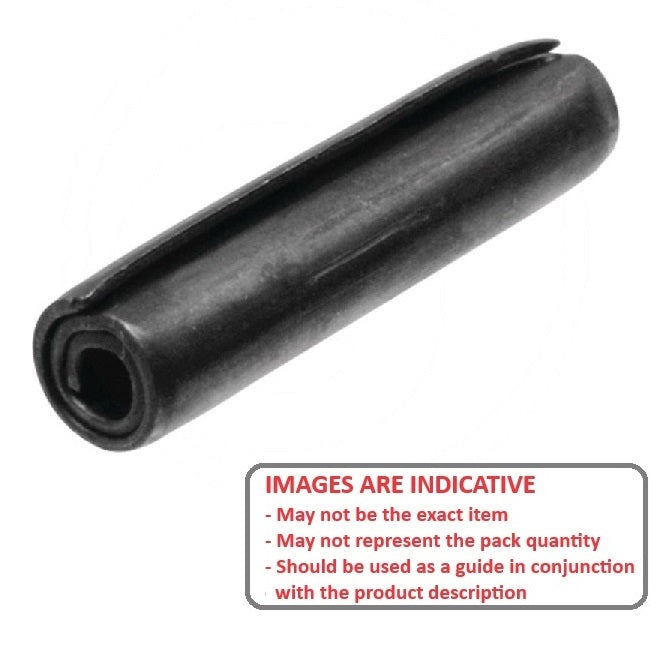

PSP-032-051-C (5 Pcs)

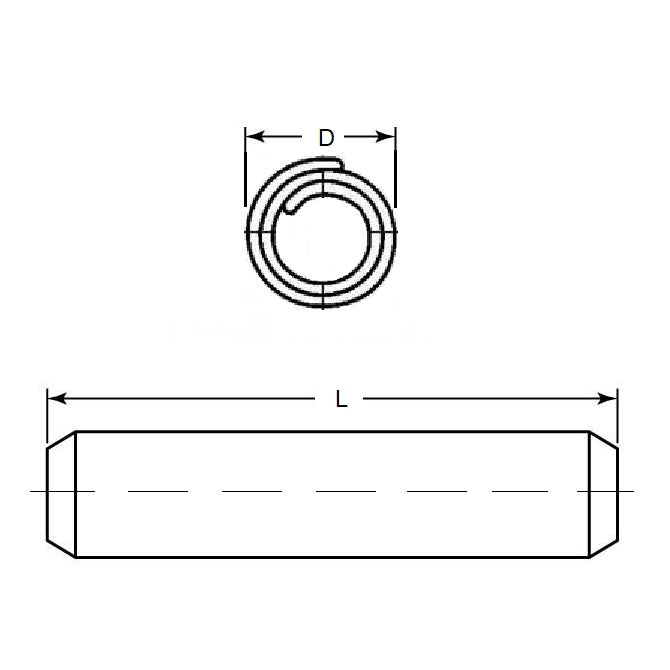

Pins - 3.18 mm x 50.8 mm 3.18 - 3.28
MBA
Master Pins Catalogue PDF
Roll Pins
Qty: 12 available now (60 pcs)
Order 50 or more (250 pcs) for $4.95 AUD per 5
Couldn't load pickup availability
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Plain - Standard Duty
Product Details:Additional stock available from USA subject to Prior Sale = 23142
Nom. Hole Diameter: 3.18mm
High Carbon Steel
- Length: 50.80mm
+/-0.50
- Drill Size: 3.18 - 3.28mm
- Loose Diameter: 3.33 - 3.51mm
- ISO: Standard Duty ASME B18.8.2
- Hardness: RC 46-53 (HV 420 to 545)
Brand: MBA
Country of Origin: US
Alternatives: 91598A268, SPC-125-2000
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
