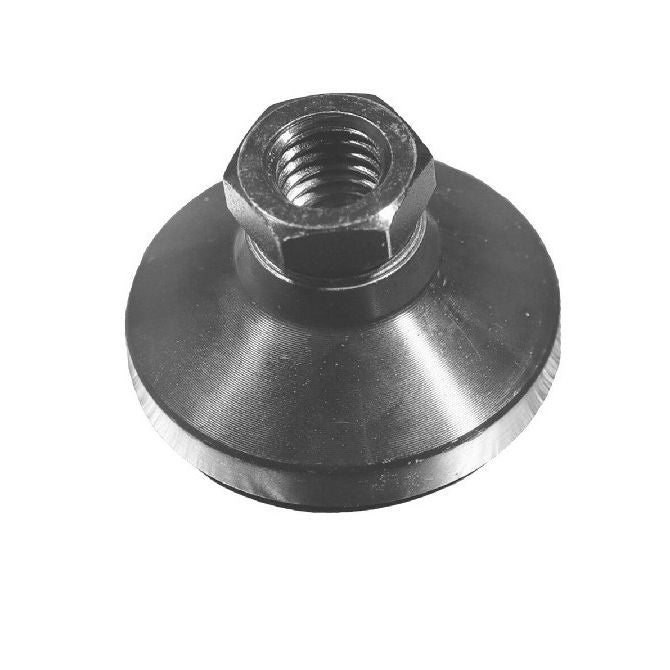

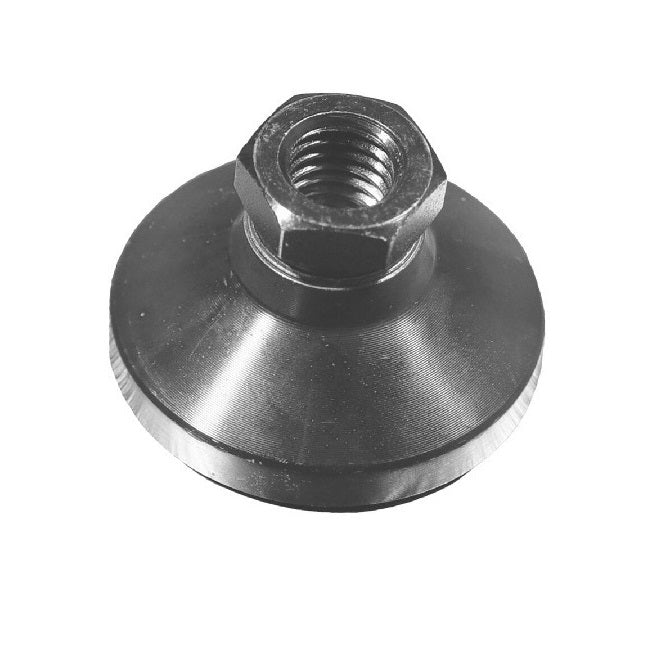

Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel

Name: 1056325 | MSF-048F-CBC (15 Pcs) --- Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel
Rating: 5.0 (1 reviews)

MSF-048F-CBC (15 Pcs)

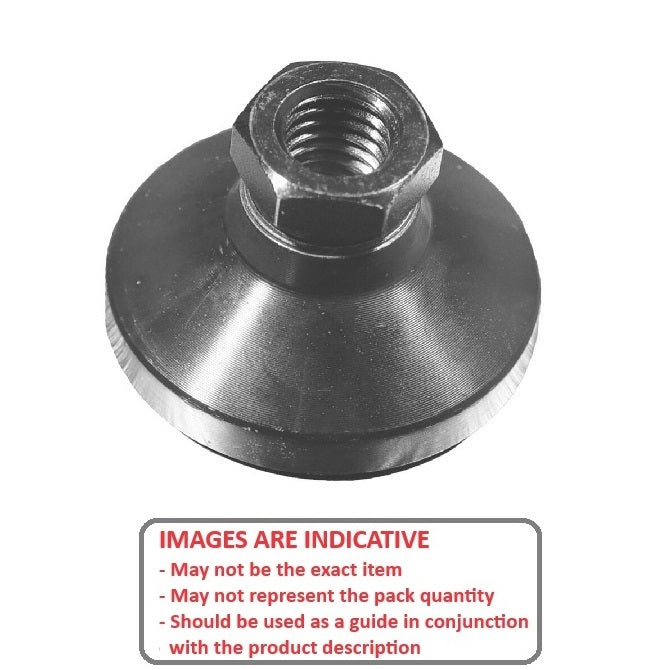

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Mounts - Levelling Socket - Swivel - Black Chromate - Standard

Price:

$119.05 AUD

per 15
Backorder
Order 50 or more pack (750 pcs) for $107.15 AUD per 15

Product Details:

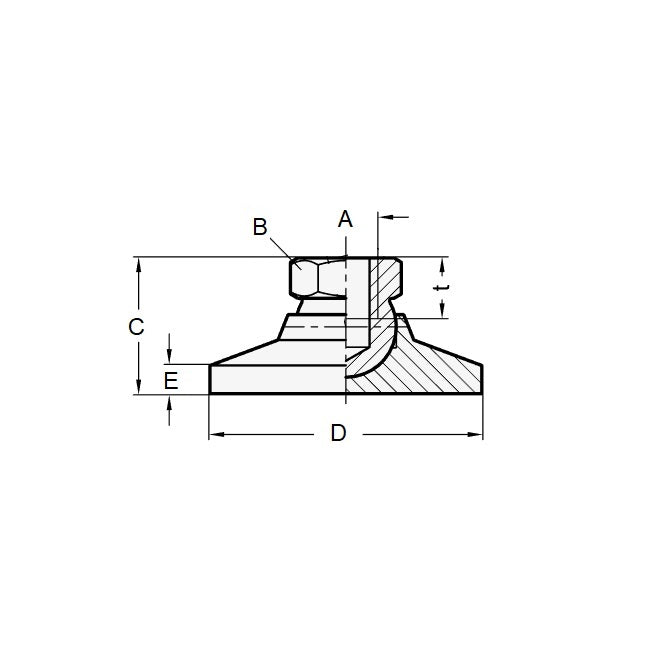

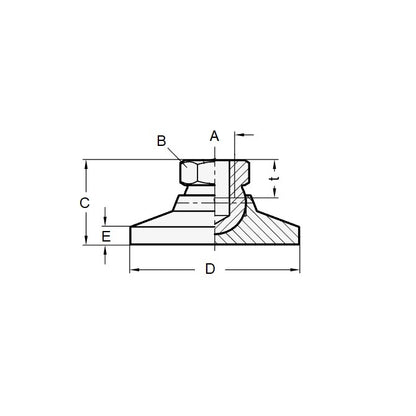

Thread Size (A): 10-32 UNF (4.76mm)

Steel

Base Diameter (D): 19.1mm
_{(19.1mm is 0.752 in.)}
Foot Height (C): 13.5mm
_{(13.5mm is 0.531 in.)}
Min. Thread Depth: 4.3mm
Base Height (E): 2.79mm
Load Rating: 270Kg
Finish: Black Chromate
Hex Flats (B): 9.53mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

ALTPART 6103K124
LBK5
LBK-5
MSF0270048FB

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
