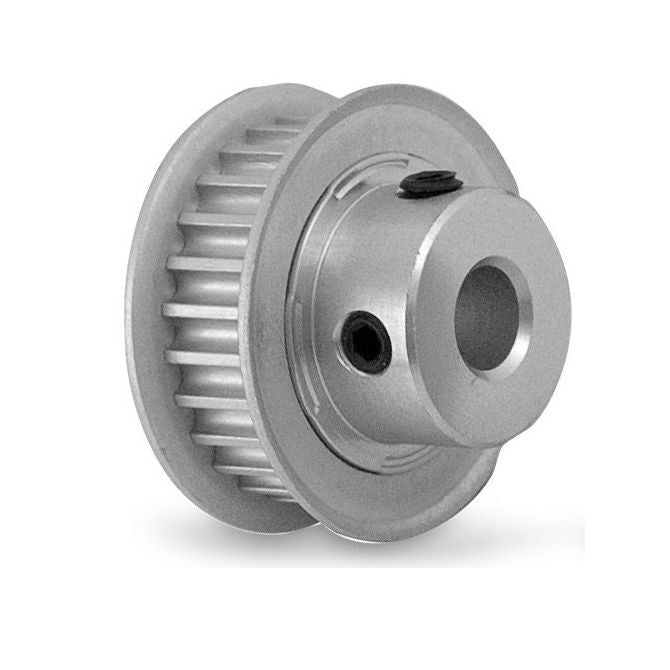

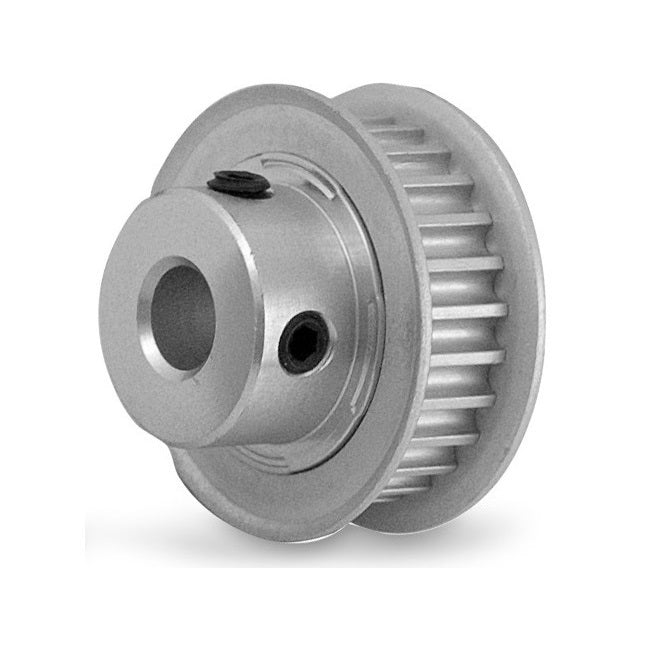

Metric Timing Pulleys - 25 tooth - 9x6.35 mm - Aluminium

P-030G-025-090FF-AL-G-064

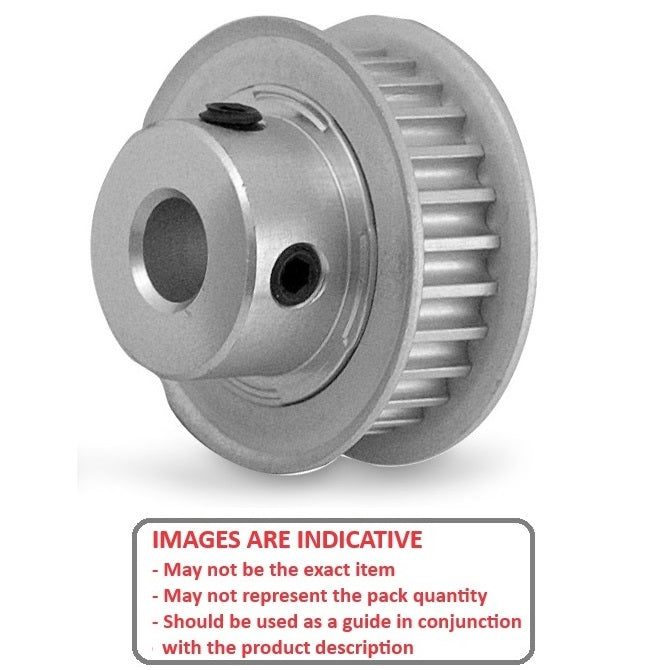

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$33.86 AUD
$33.86 AUD
Each
Qty: 1 available now
Order 50 or more for $30.47 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 02, 2025

Base Category: Pulleys - Metric Timing

Top Level Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - Through

Product Details:

Teeth: 25
Aluminium
  • Max Belt Width: 9.00mm
  • Bore (d): 6.350mm
  • Bore Type: Finished
  • Locking Type: Set Screw

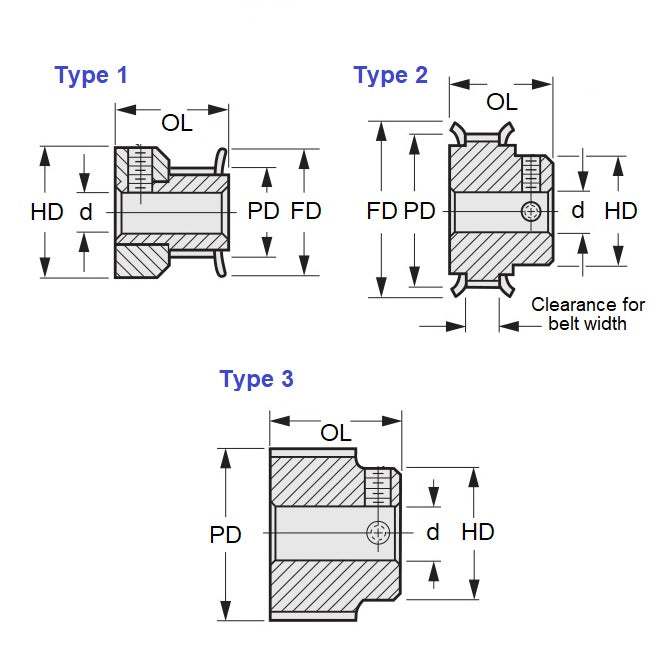

  • Type: 2
  • Pitch Dia. (PD): 23.86mm
  • Flange Diameter (FD): 26.9mm
  • Overall Length: 20.6mm
  • Hub Diameter (HD): 15.9

Brand: MBA
Country of Origin: IN

Alternative Parts Include: A6A53-025DF0908, A6A53025DF0908, 3764N131, 253P096FA3, 25-3P09-6FA3, Gates, ALTPART

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
