Flange Mount Ball Transfer Units - 25 kg - 22x61 mm Standard - Carbon Steel

BTU0025-010-F-C (Each)

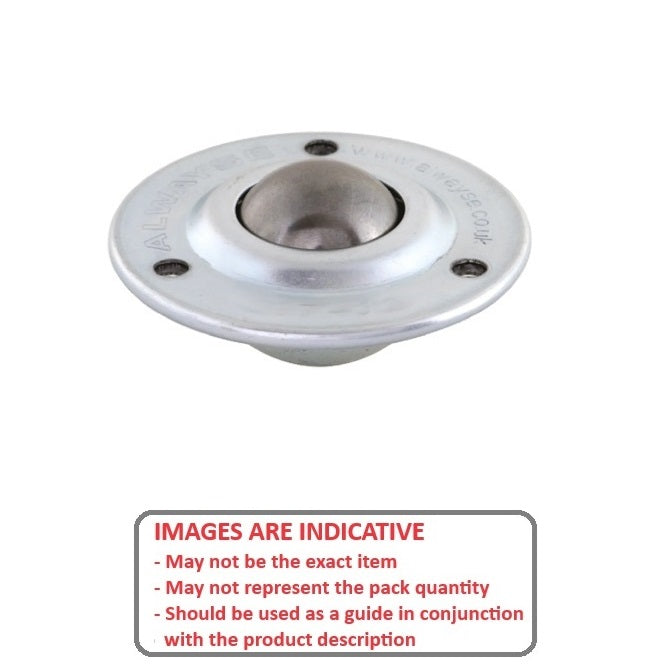

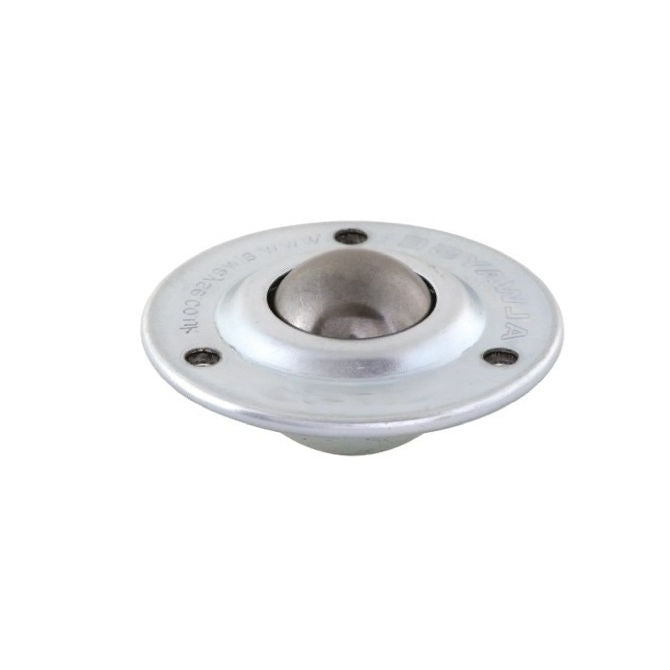

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

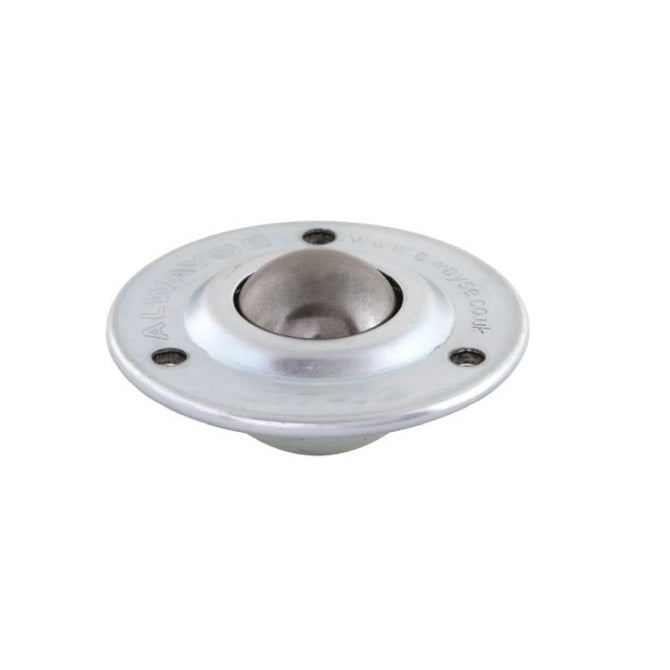

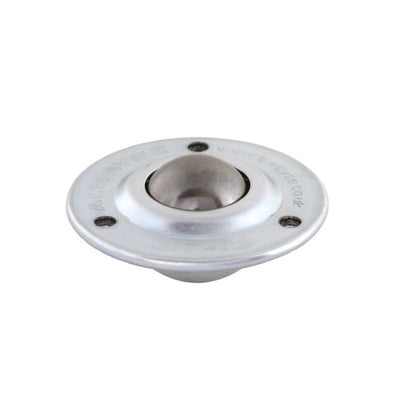

  • Flange Mount Ball Transfer Units - 25 kg - 10x61 mm - Carbon Steel
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

25 kg - 22x61 mm Flange Mount Ball Transfer Units - Carbon Steel - Sold Per Each:

Base Category: Ball Transfer Units - Flange Mount

Top Level Category: Ball Transfer Units - Flange Mount - Standard - Steel - Slim

Product Details


Deleted Item. Available while stocks last.

Max Load: 25kg

Carbon Steel

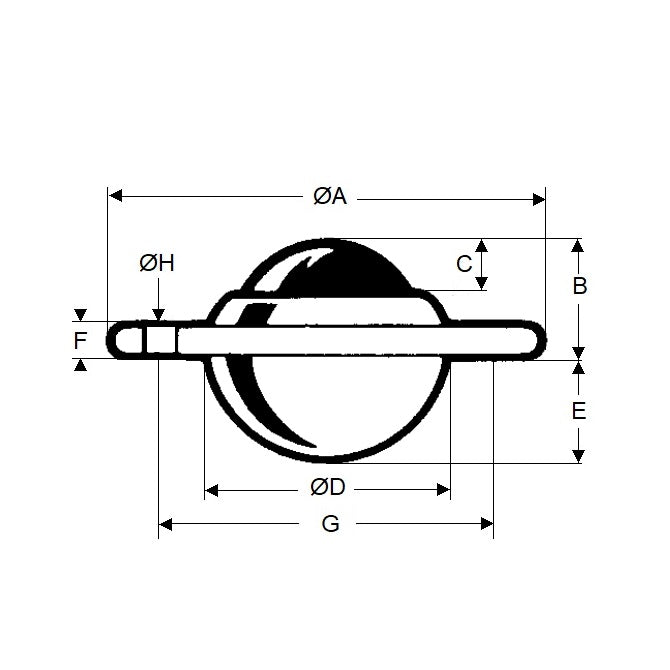

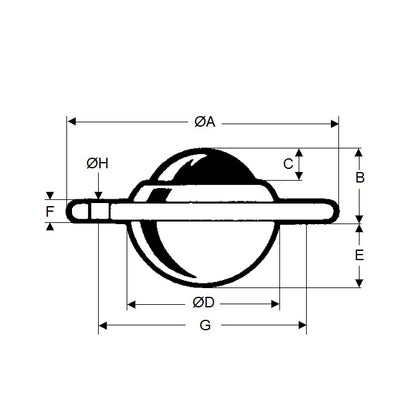

  • Max Load: 25kg
  • Overall Height (L): 22.0mm
    (22.0mm is 0.866 in.)
  • Body Diameter (D): 61.0mm
    +/- 0.2
    (61.0mm is 2.402 in.)
  • Ball Height from Flange (B): 10mm
  • Ball Diameter: 19.0mm
  • Body Height (E): 12.0mm
  • Flange Diameter (A): 61.0mm
    +/- 0.2
  • Flange Thickness (F): 3.2mm
  • Fixing Hole Size (H): 5.1mm
  • Fixing Hole Distance (G): 44.5mm

Brand: MBA
Country of Origin: GB

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • BISF-19C
  • BISF19C

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BTU0025010FC, BTU0025010
