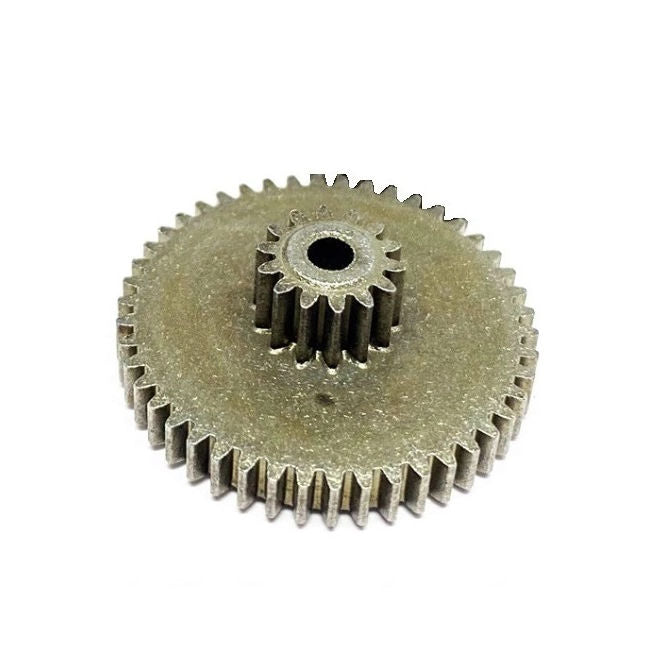

Cluster Module 0.5 Brass Gears - 25 and 10 tooth 12.5 - 5.0 - 13.0 - 5.5 - Brass and Steel Gear

GCL-013-M05-060-024-B (Pack of 2)

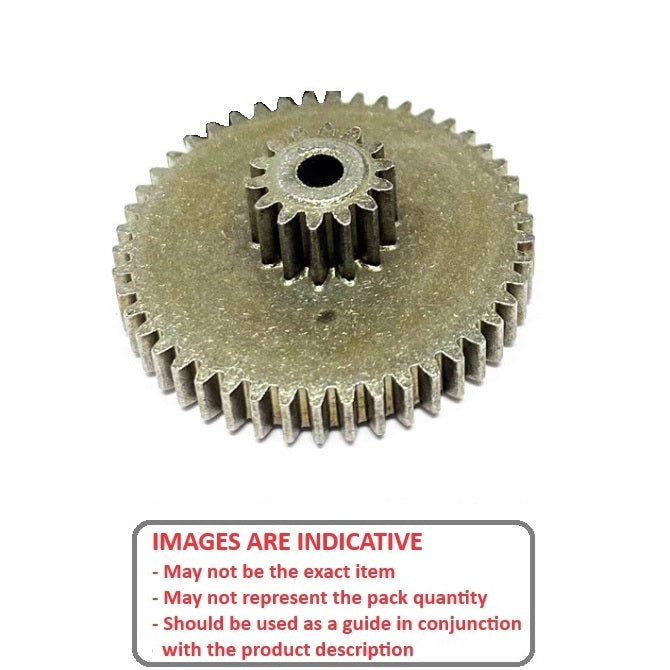

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Cluster Module 0.5 Brass Gears - 25 - 10 tooth 12.5 - 5.0 - 13.0 - 5.5 - Brass and Steel
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per pack of 2
Excludes GST and overseas Taxes & Duties
 Qty: 1 pack (2 pcs) available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

25 and 10 tooth 12.5 - 5.0 - 13.0 - 5.5 Cluster Module 0.5 Brass Gears - Brass and Steel - Sold Per 2:

Base Category: Gears - Cluster Module 0.5 Brass

Top Level Category: Gears - Cluster Module 0.5 Brass

Product Details


Deleted Item. Available while stocks last.

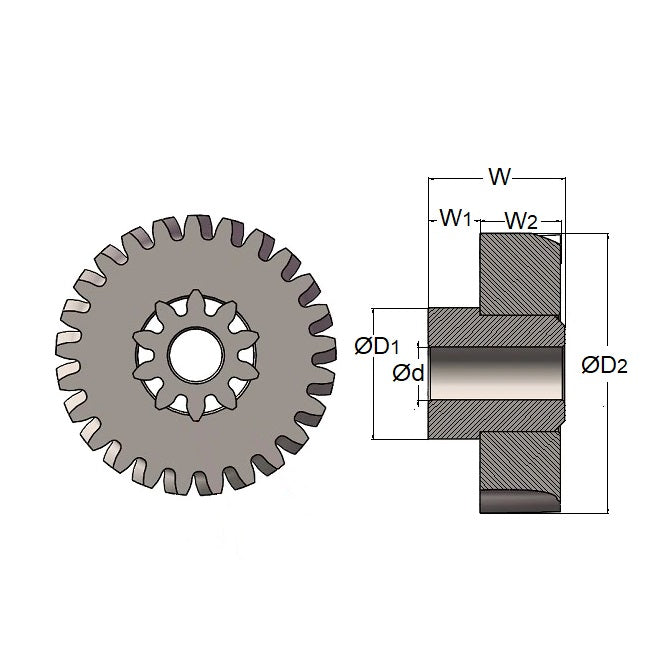

Number of Teeth: 25 and 10

Brass and Steel
  • Number of Teeth: 25 and 10
  • Pitch Diameter Large - Small: 12.5 - 5.0mm
    (12.5 - 5.0mm is 0.492 in.)
  • Outside Diameter Large - Small: 13.0 - 5.5mm
    (13.0 - 5.5mm is 0.512 in.)
  • Bore: 2.38mm
  • Face Width Large / Small: 2.2 / 3.8mm
  • Overall Width: 6.0mm
  • Hub Diameter: Hublessmm
  • Hub Projection: Hublessmm
  • Other Information: No grub screws or hub. Mounting will usually be achieved by using an adhesive.
  • Quality: Hobby Quality

Brand: MBA
Country of Origin: TW

Please contact us if you would like a price and delivery for a larger quantity than the available stock.
