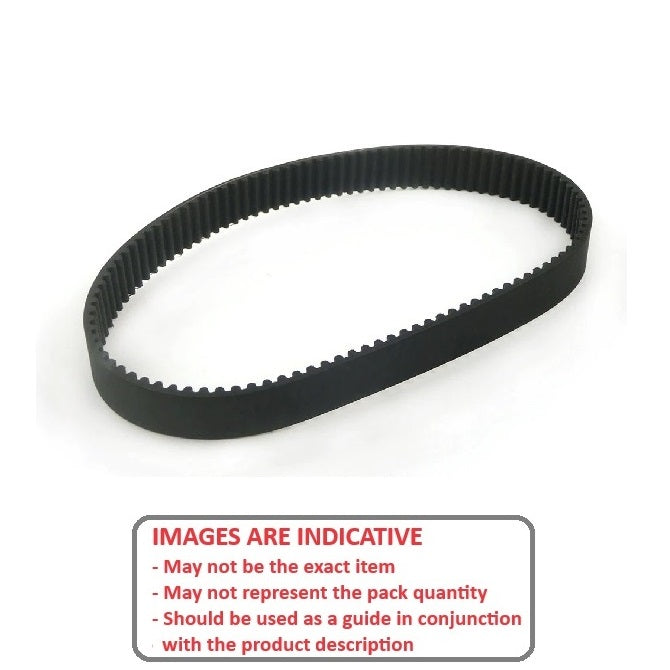

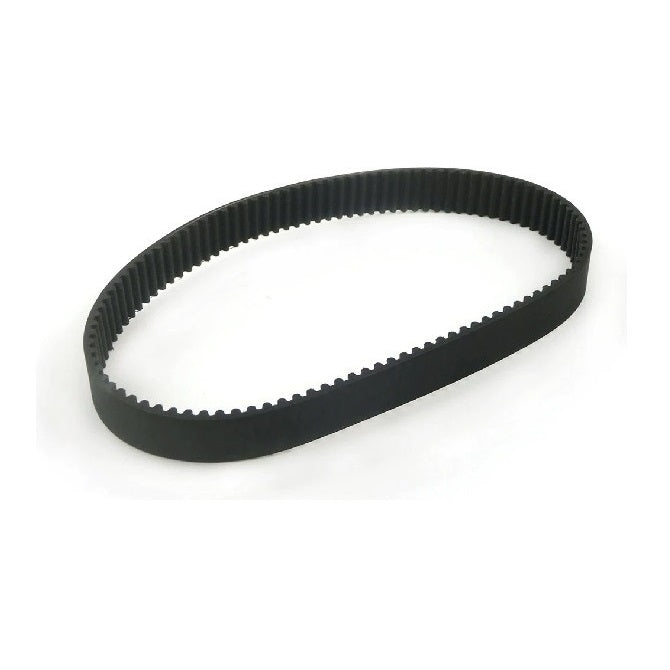

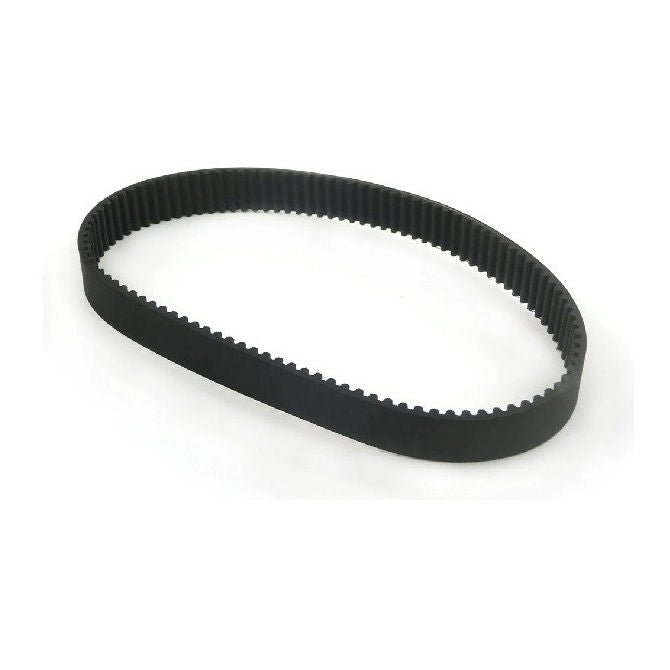

Timing 5mm Pitch Belts - 24 tooth - 120x6 mm HTD - Nylon Covered Neoprene with Fibreglass Cords Belt

B-050H-0024-0060-NFB (PK-2)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Timing 5.000mm Pitch Belts - 24 tooth - 120x6 mm - Nylon Covered Neoprene with Fibreglass Cords
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
5mm HTD Timing Pulleys
Price:
$16.00 AUD
$30.40 AUD $16.00 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Belts - Timing 5.000mm Pitch

Top Level Category: Belts - Timing 5.000mm Pitch - HTD - 6mm Wide - Single Sided

Product Details


Deleted Item. Available while stocks last.

Number of Teeth: 24

Nylon Covered Neoprene with Fibreglass Cords
  • Number of Teeth: 24
  • Length: 120mm
    (120mm is 4.724 in.)
  • Width: 6.0mm
    (6.0mm is 0.236 in.)
  • Reinforcement: Fibreglass
  • Appearance: Black
  • Breaking Strength: 1896N
  • Min Temperature: -34Deg C
  • Max Temperature: 85Deg C

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • Gates 120-5M-06
  • 1205M06
  • A6R25M024060
  • A 6R25M024060

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
