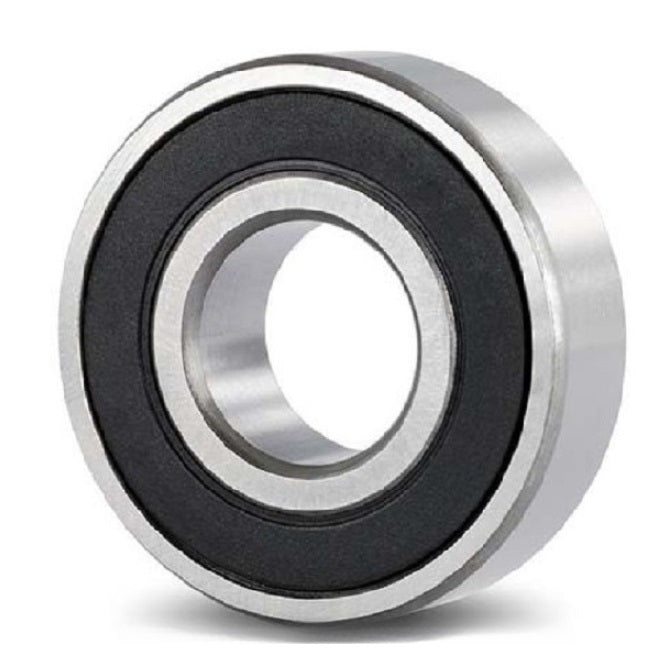

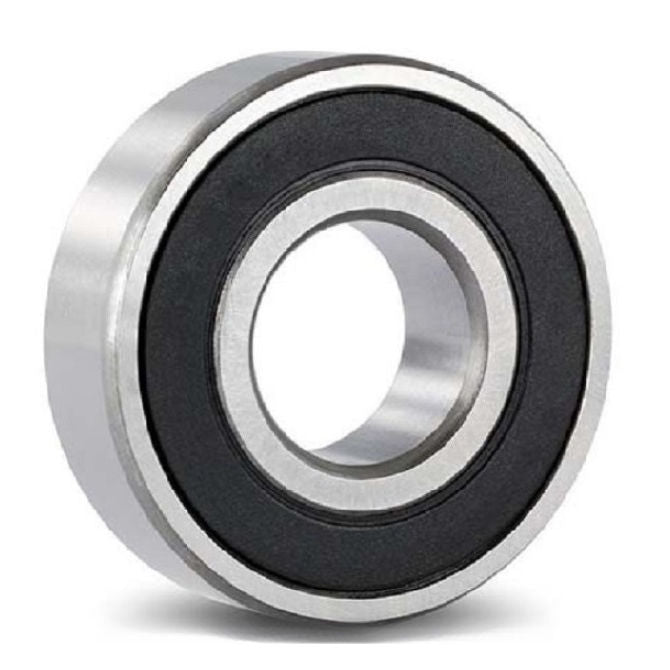

Single Row Ball Bearings - 22.225x47.625x12.7 mm - Stainless Steel AISI 440C

SR14A-2RS

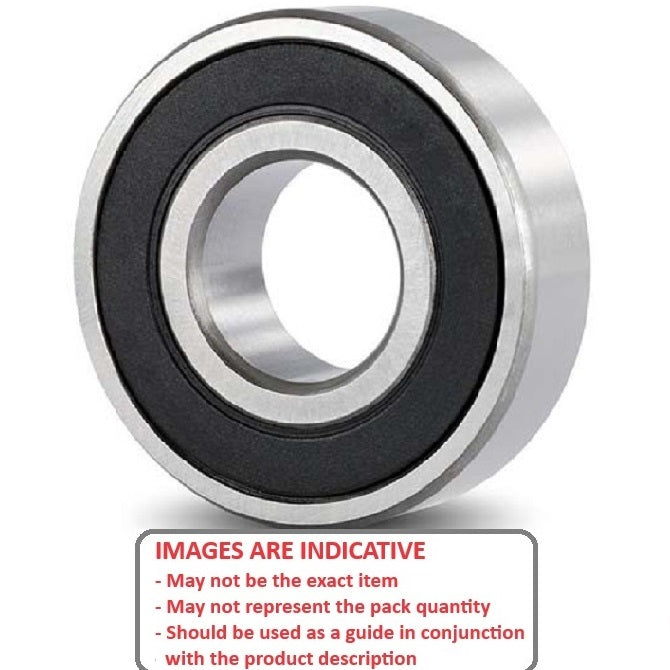

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 22.225x47.625x12.7 mm - Stainless Steel AISI 440C
1 4

MBA

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$23.36 AUD
$63.84 AUD $23.36 AUD
Each
Qty: 6 available now
Only 6 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Product Details:

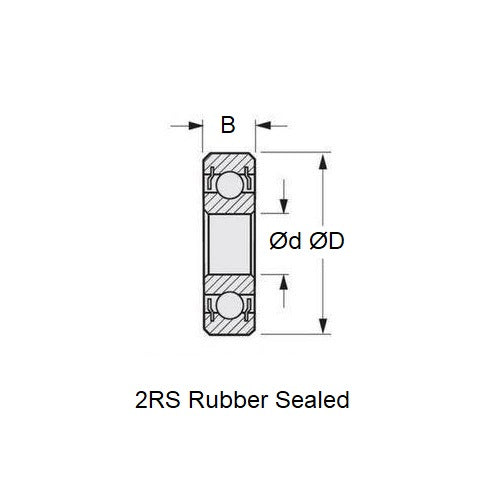

ID (d): 22.225mm
+ 0.000 / - 0.011
(22.225mm is 0.875 in.)

Stainless Steel AISI 440C
  • OD (D): 47.625mm
    + 0.000 / - 0.011
    (47.625mm is 1.875 in.)
  • Width (B): 12.700mm
    + 0.000 / - 0.120
    (12.700mm is 0.5 in.)
  • Precision Grade: Abec 1
  • Closure Type: 2RS
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Alternative Parts Include: SSR142RS, SSR14-2RS, SSR14-RS, SSR14RS, R14A2RS, R14A-2RS, R14A, SR14A / 13, SR14 / 13, SS99R14, Stainless Alternative, Sealed Width A, SMT, R14ABASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
