G008B-21-D64-032-032-AL-G
Spur Gears - 21 x 8.33 mm x 3.175 mm
MBA
64DP Gear Racks
Qty: 1 available now
Couldn't load pickup availability
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Standard - 64DP Aluminium
Product Details:Teeth: 21
Aluminium Alloy 2024

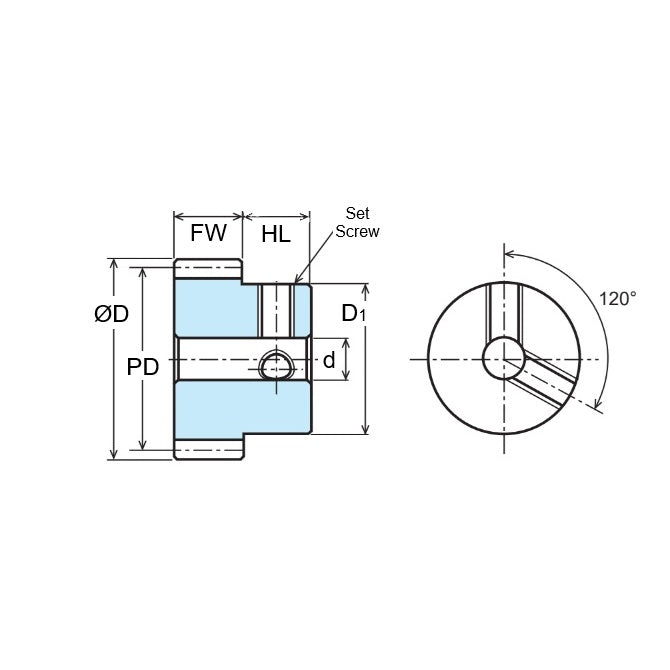

- Pitch Circle Diameter (PD): 8.33mm
- Bore (d): 3.175mm
- Outside Diameter (OD): 9.126mm
- Face Width (FW): 3.18mm
- Pitch: 64DP
- Hub Diameter (D1): 7.93mm
- Hub Projection (HL): 4.76mm
- Locking Method: Set Screw
- Pressure Angle: 20°
- Quality: AGMA Q10
Brand: MBA
Country of Origin: JP
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: S1063Z-064A021
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
