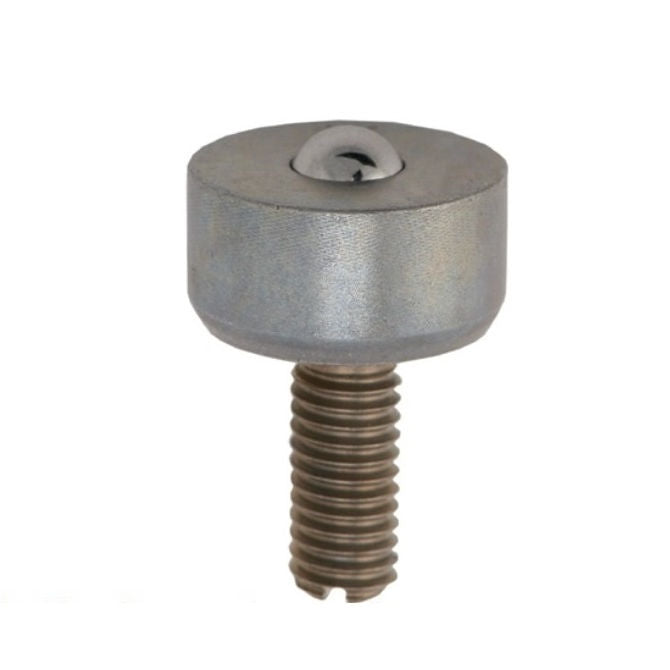

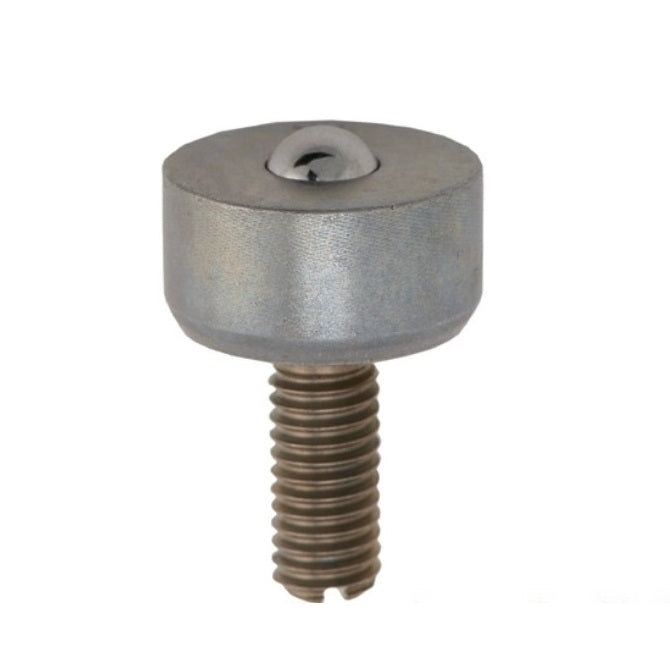

Screw Stem Ball Transfer Units - 20 kg - 24x13 mm - Steel

BTU0020-009-TS-C (Each)

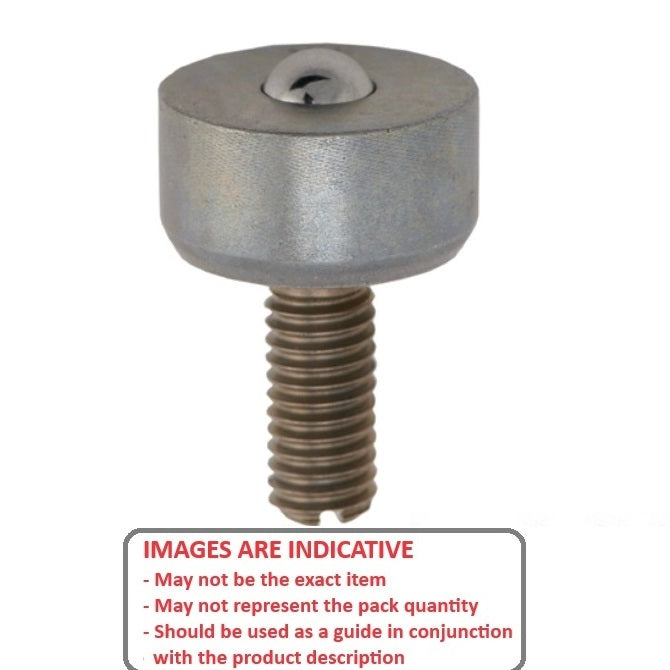

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Steel
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$60.00 AUD
$114.00 AUD $60.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

20 kg - 24x13 mm Screw Stem Ball Transfer Units - Steel - Sold Per Each:

Base Category: Ball Transfer Units - Screw Stem

Top Level Category: Ball Transfer Units - Screw Stem - Steel - Precision

Product Details


Deleted Item. Available while stocks last.

Max Load: 20kg

Steel

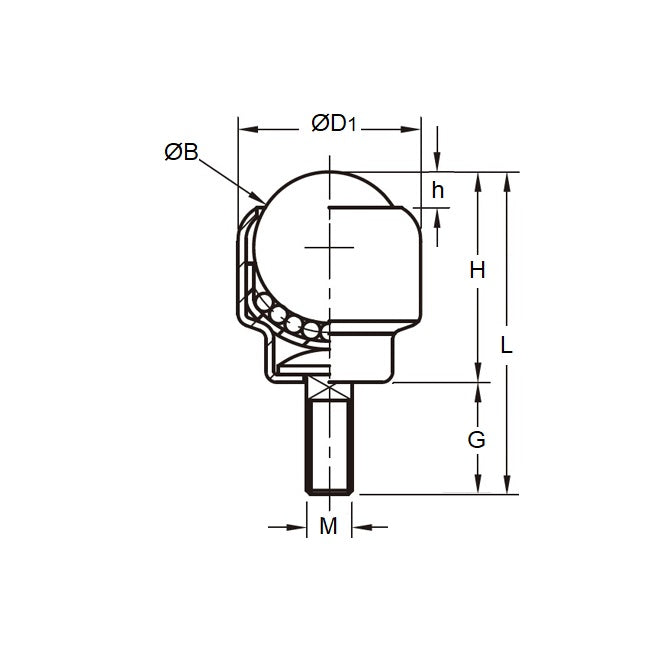

  • Max Load: 20kg
  • Overall Height (L): 24.0mm
    (24.0mm is 0.945 in.)
  • Body Diameter (D): 13mm
    (13mm is 0.512 in.)
  • Height from Base (B): 9mm
  • Ball Diameter: 4.8mm
  • Body Height (H): 9.0mm
  • Thread: M6
  • Stud Length (Sl): 15.0mm
  • 1Type

Brand: MBA
Country of Origin: TW

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • BTIS-05N
  • BTIS05N

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BTU0020009TSC, BTU0020009TS
