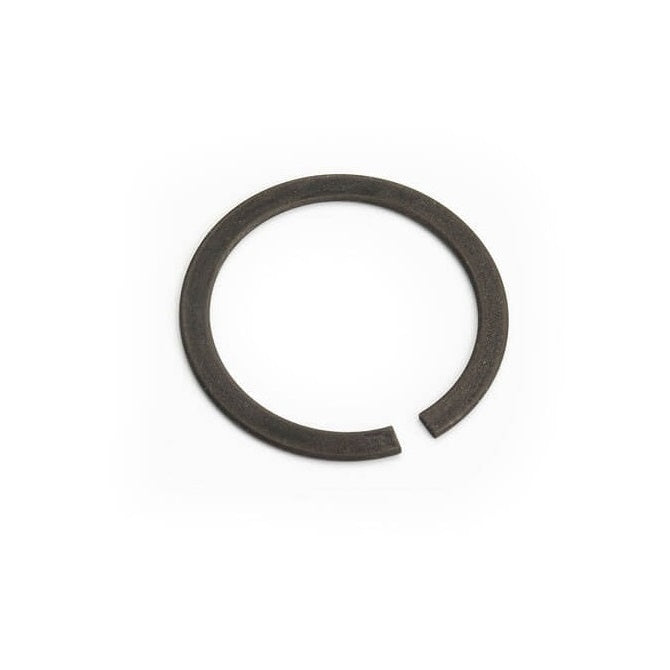

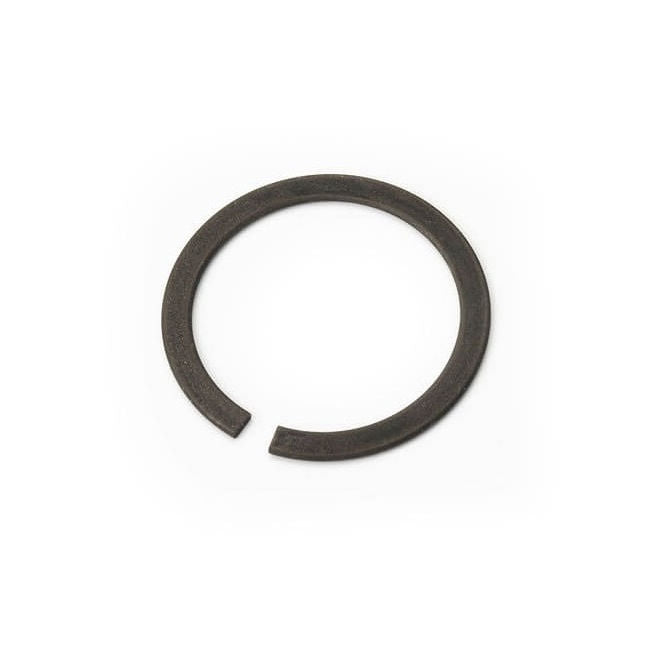

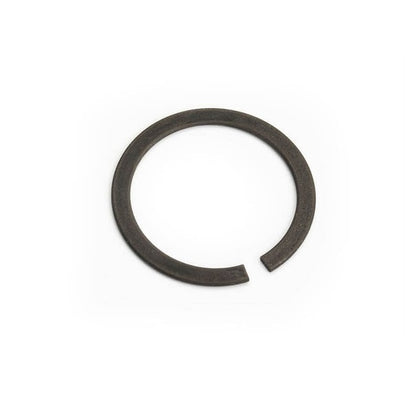

External Retaining Rings - 20x1.2x19.2 mm - Spring Steel

WRE-0200-LS

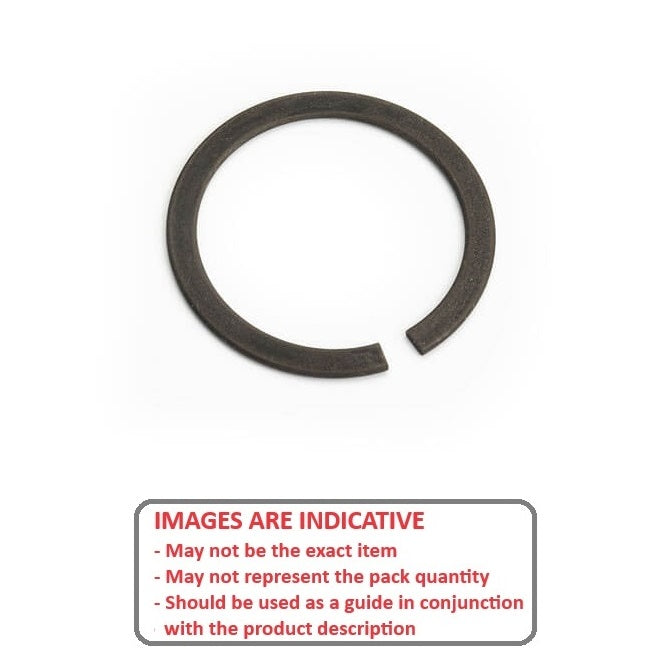

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Snap Rings and Spiral Rings PDF
Price:
$6.05 AUD
$6.05 AUD
Each
Qty: 70 available now
Order 50 or more for $5.45 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 04, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel

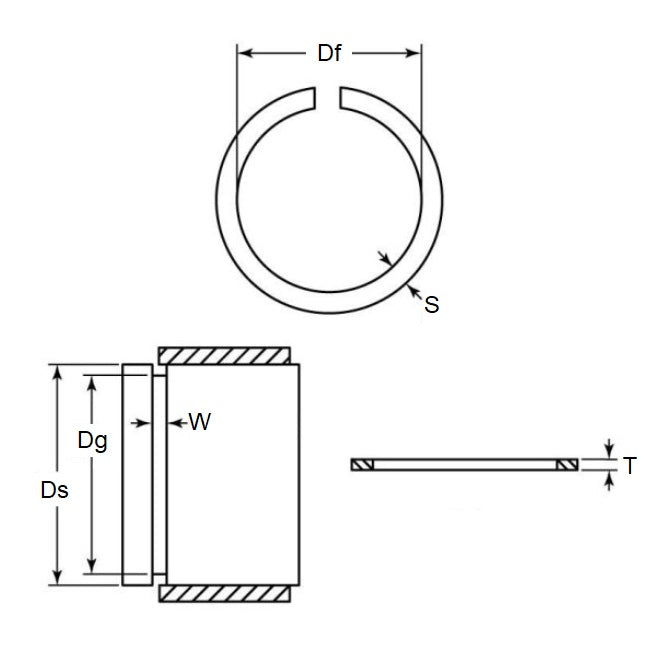

Product Details:

Shaft or Bearing OD (d1): 20.00mm
Spring Steel
  • Clip Thickness (T): 1.20mm
    + 0 / - 0.10
  • Groove Dia. (Dg): 19.20mm
    + 0 / - 0.13
  • Approx. Loose Circlip ID (A): 18.70mm
  • Radial Wall (S) min/max: 1.75mm
    + 0 / - 0.10
  • Groove Width (W): 1.30mm
  • Approx. Loose Clip OD: 22.2
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: USA

Alternative Parts Include: SW20, SW20-BLS, SW20BLS, M2400-0200, M24000200APP, M2400-0200APP, M24000200, WRE0200SQ, DSW-020, DSW20, DSW-20, DSW020, NoCor, Nachi, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
