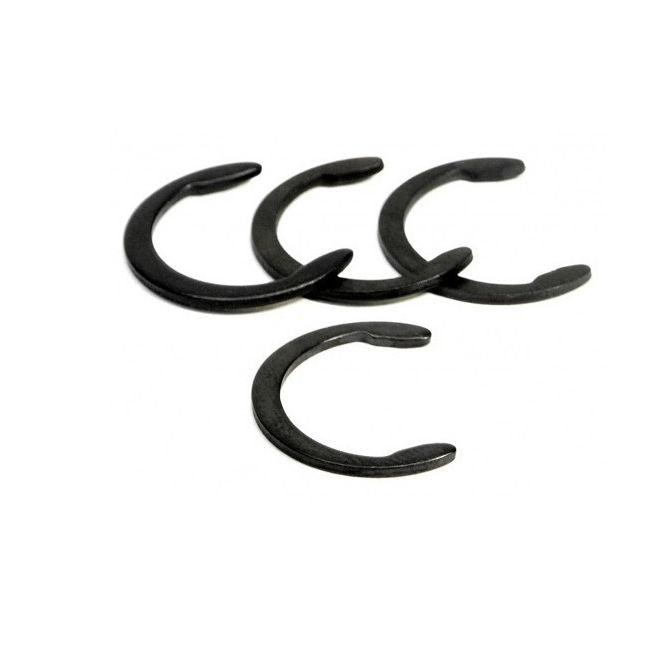

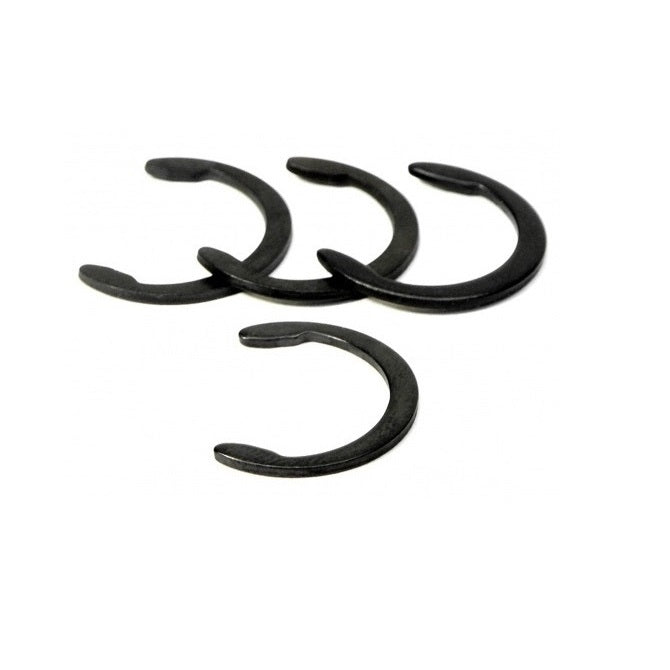

Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish

CC-200-222-C (5 Pcs)

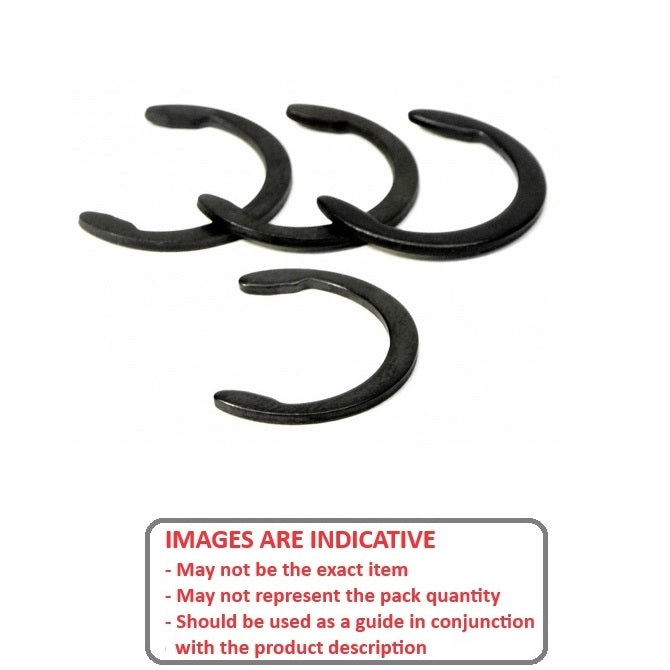

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish
1 4

MBA

Price:
$2.23 AUD
$4.66 AUD $2.23 AUD
per 5
Qty: 200 available now (1000 pcs)
Order 50 or more (250 pcs) for $2.01 AUD per 5
Only 200 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - Crescent

Top Level Category: Retaining Rings - Crescent

Product Details:

Additional stock available from USA subject to Prior Sale = 3002

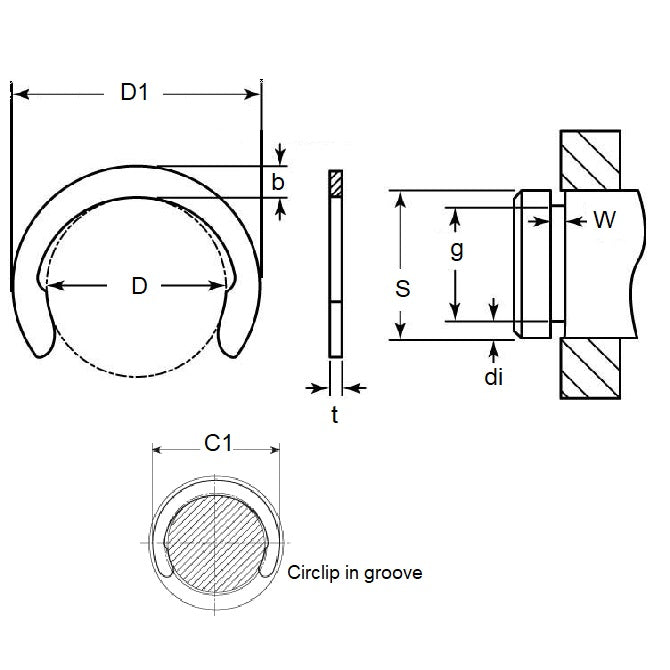

Groove Diameter (G): 20.04mm
(20.04mm is 0.789 in.)

Carbon Spring Steel Self Finish
  • Shaft Diameter (S): 22.23mm
    (22.23mm is 0.875 in.)
  • Thickness (t): 1.07mm
    (1.07mm is 0.042 in.)
  • Clip OD in groove (C1): 25.65mm
  • Clip OD Loose (D1): 25.17mm
  • Groove Width (W): 1.17

Brand: MBA
Country of Origin: US

Alternative Parts Include: 9103-087-B, 9103087, 9103-087, 9103087B, 9103-087/B, 9103087/B, C-087-B, C087, C-087, C087/B, C-087/B, C087B, N1800-087/B, N1800087B, N1800-087, N1800087, N1800087/B, N1800-087-B, N1800-0087APP, N18000087APP, 5103-087-B, 5103087, 5103-087, 5103087/B, 5103087B, 5103-087/B, 16632-087/B, 16632087/B, 16632-087, 16632087, 16632-087-B, 16632087B, Military, Waldes, Ellison, NoCor, Rotor Clip

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
