Coiled Pins - 2.38x22.23 - 2.38 - 2.46 - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin

PSP-024-022H-S2 (Each)

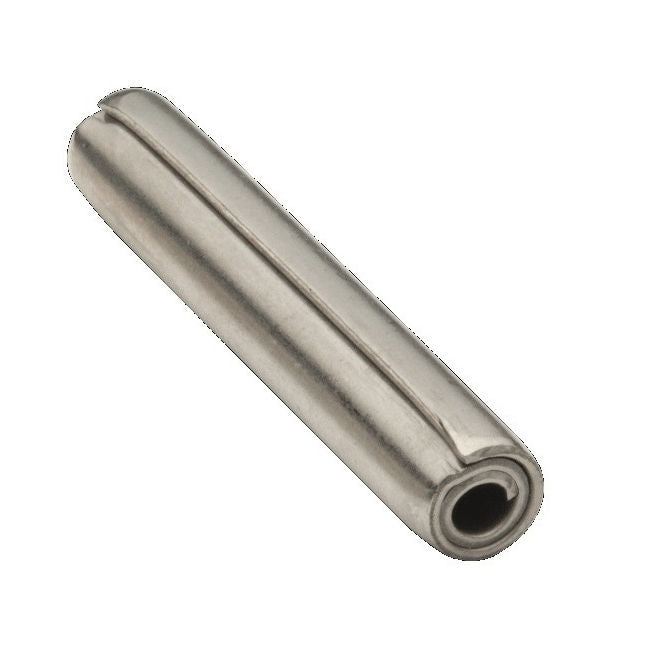

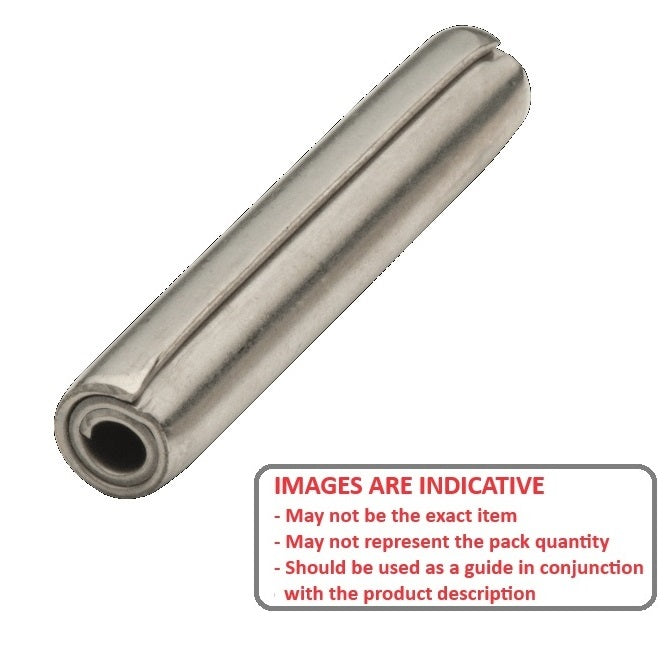

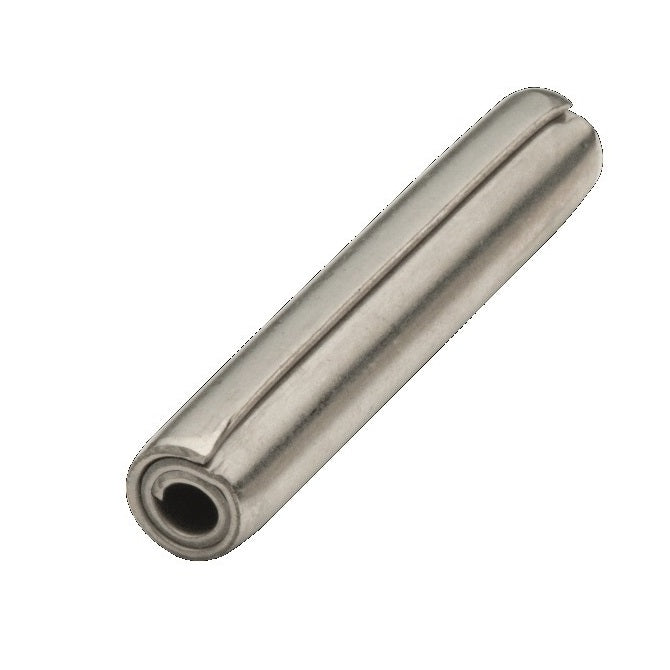

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 2.38x22.23 - 2.38 - 2.46 - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$0.73 AUD
$0.73 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 180 available now

Order 50 or more
for $0.66 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Dec 12, 2026

3/32x7/8 inch Pin - 2.38x22.23 - 2.38 - 2.46 Coiled Pins - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per Each:

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Stainless - Heavy Duty

Product Details

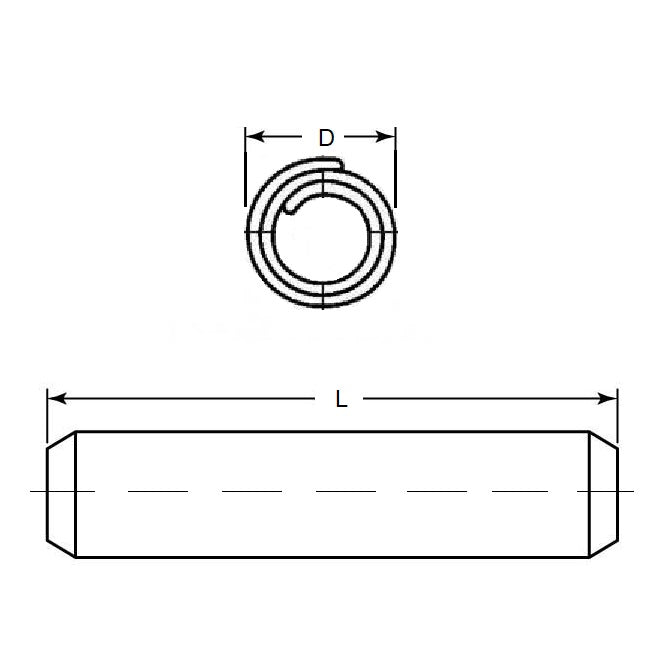

Nominal Hole Diameter: 2.38mm
(2.38mm is 0.094 in.)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Nominal Hole Diameter: 2.38mm
    (2.38mm is 0.094 in.)
  • Length: 22.23mm
    +/- 0.25
    (22.23mm is 0.875 in.)
  • Drill Size: 2.38 - 2.46mm
    (2.38 - 2.46mm is 0.094 in.)
  • Loose Diameter: 2.49 - 2.57mm
  • ISO: Heavy Duty ASME B18.8.2 / ISO 8748
  • Hardness: Unhardened

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Huyett® SPC3P-093-0875H
  • NoCor® SPC3P-093-0875H
  • SPC3P0930875H

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PSP024022HS2, PSP024
View full details
