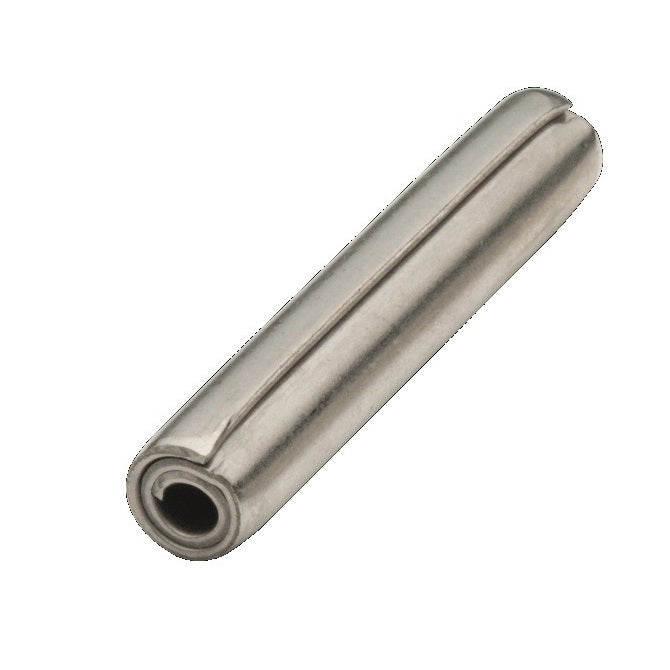

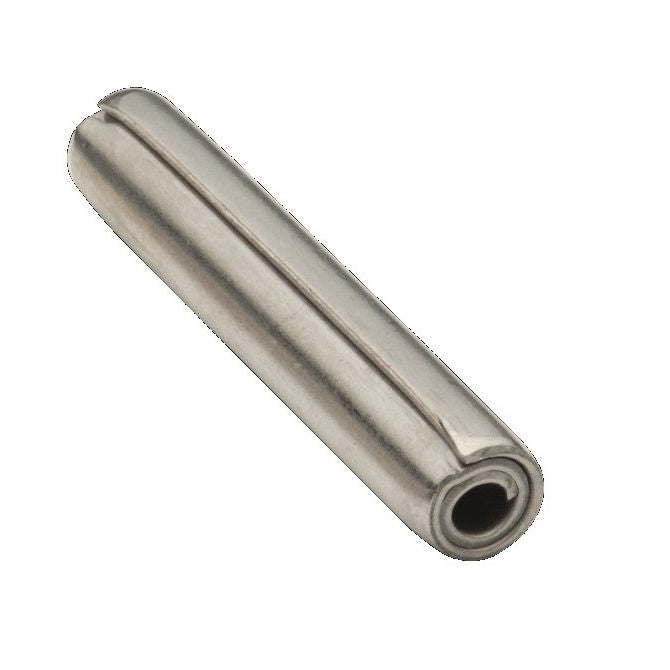

Coiled Pins - 2.38x12.7 - 2.38 - 2.46 - Stainless Steel 304 Similar to A2, 18-8 HRB80

PSP-024-013H-S2 (5 Pcs)

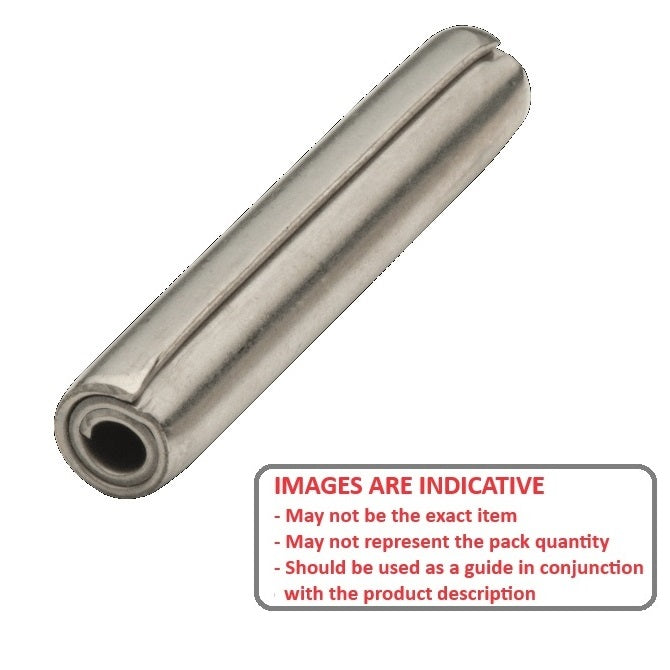

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 2.38x12.7 - 2.38 - 2.46 - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

MBA

Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$3.41 AUD
$3.41 AUD
per 5
Qty: 16 available now (80 pcs)
Order 50 or more (250 pcs) for $3.07 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 26, 2025

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Stainless - Heavy Duty

Product Details:

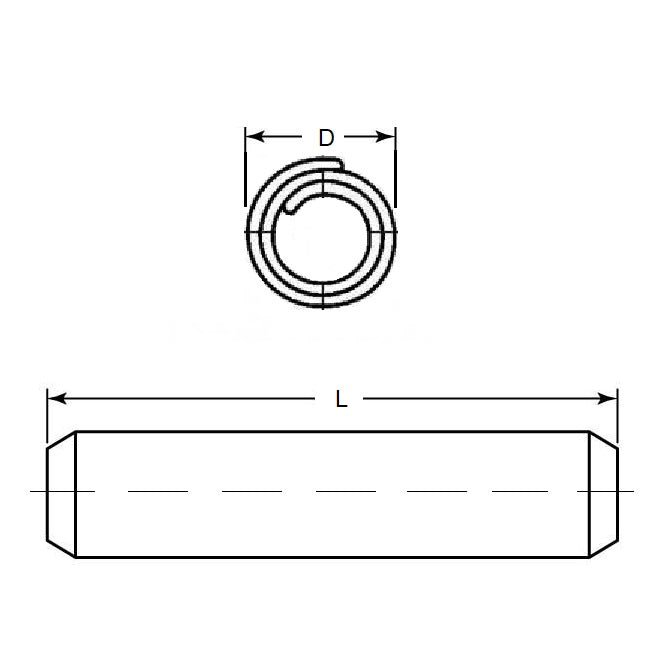

Nom. Hole Diameter: 2.38mm
(2.38mm is 0.094 in.)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Length: 12.70mm
    +/- 0.25
    (12.70mm is 0.5 in.)
  • Drill Size: 2.38 - 2.46mm
    (2.38 - 2.46mm is 0.094 in.)
  • Loose Diameter: 2.49 - 2.57mm
  • ISO: Heavy Duty ASME B18.8.2 / ISO 8748
  • Hardness: Unhardened

Brand: MBA
Country of Origin: US

Alternative Parts Include: 95765A215, SPC3P0930500H, SPC3P-093-0500H, ALTPART, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
