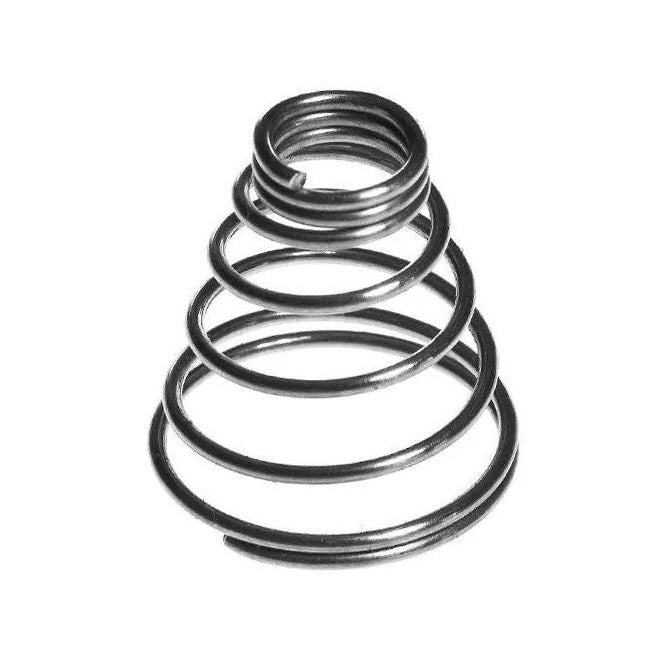

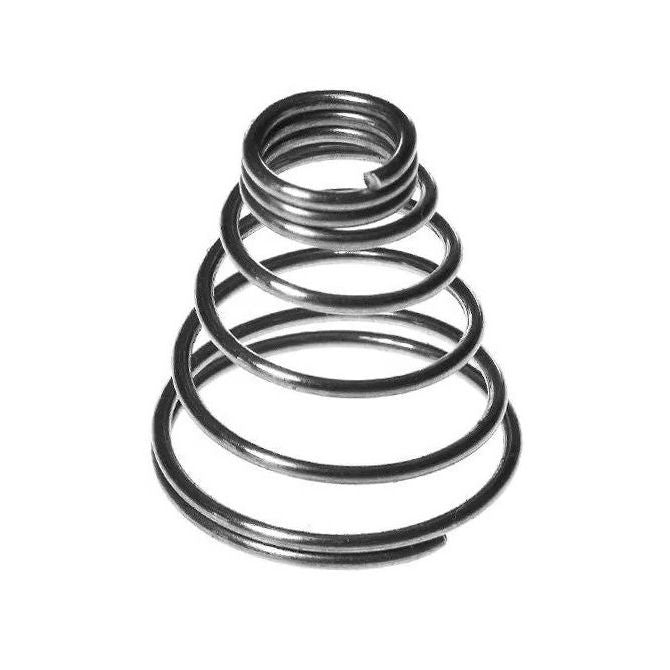

Conical Springs - 19.1x17.5x10.7 mm - Carbon Spring Steel Music Wire

Name: 1120811 | CSC-191-017-10-M --- Conical Springs - 19.1x17.5x10.7 mm - Carbon Spring Steel Music Wire
Rating: 5.0 (1 reviews)

CSC-191-017-10-M

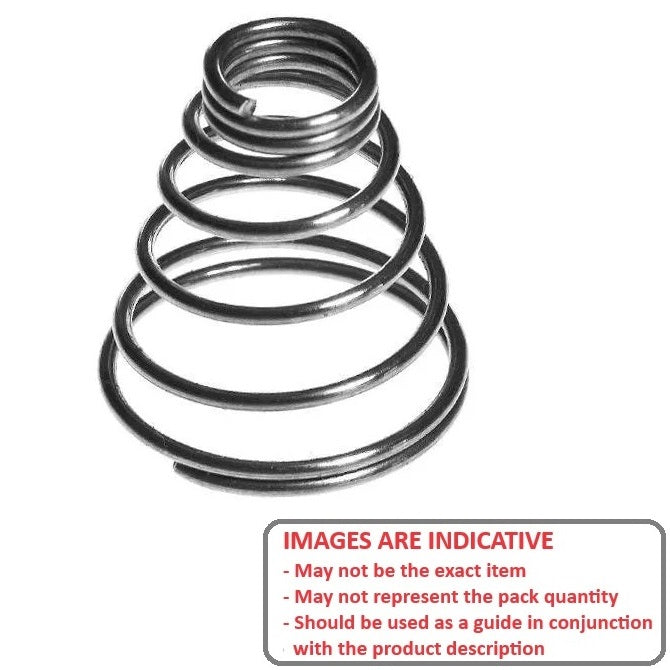

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Springs - Conical

Additional resources:
Spings Catalogue PDF

Price:

$8.41 AUD

Each
Backorder
Order 50 or more for $7.57 AUD Each

Product Details:

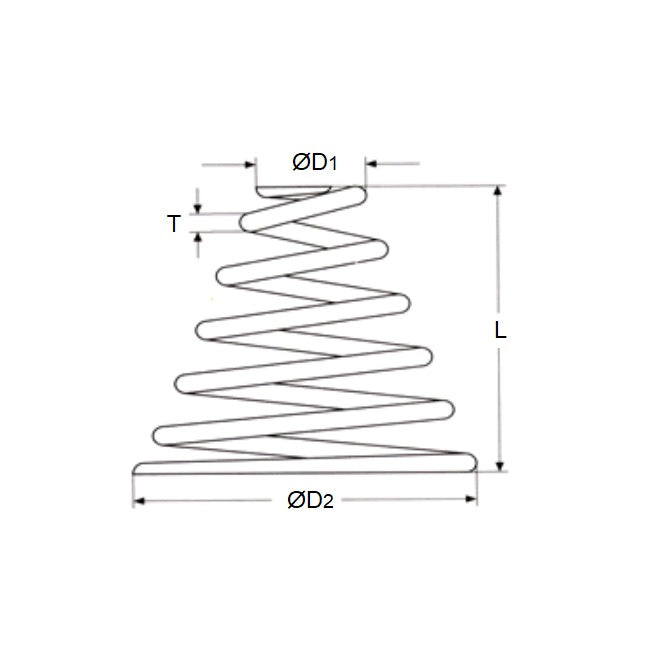

Large End OD: 19.10mm
_{(19.10mm is 0.752 in.)}

Carbon Spring Steel Music Wire

Free Length: 17.5mm
_{(17.5mm is 0.689 in.)}
Small End OD: 10.7mm
_{(10.7mm is 0.421 in.)}
Inside Diameter Clearance: 8.8mm
Wire Thickness: 0.97mm
Rate: 0.1kg/mm
Inside Diameter: 8.8mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

CX29
CX-29

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
