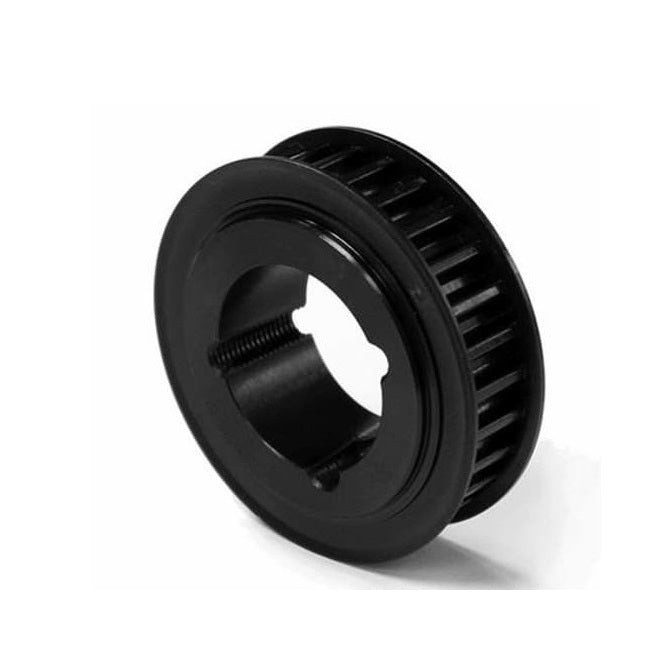

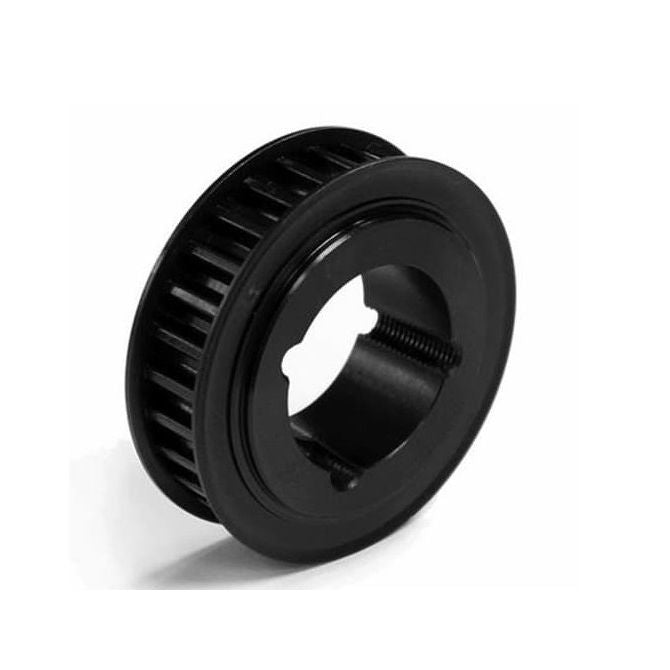

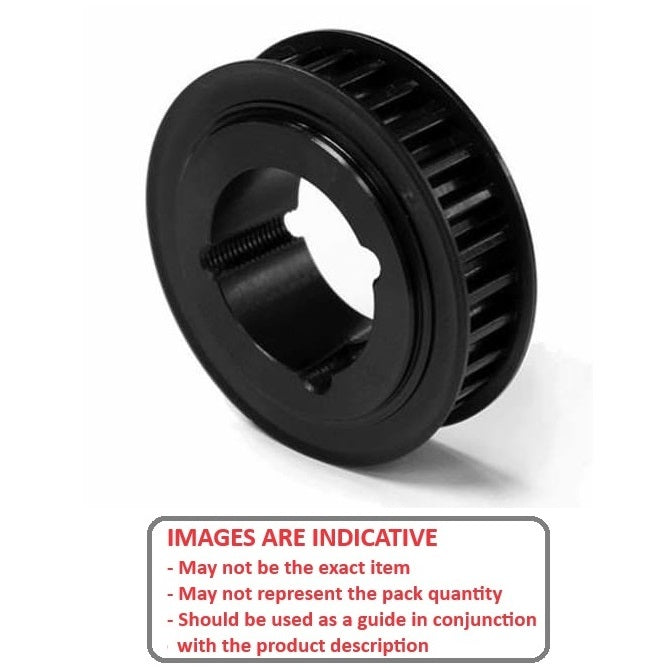

P-L9-018-254FF-SB-T1008
Pulleys - 18 Teeth x 25.4 mm x 1008
MBA
Additional resources:Timing Pulleys Catalogue PDF
L Section Timing Belts
Out Of Stock
Order 50 or more for $80.96 AUD Each
Couldn't load pickup availability
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Taperlock
Product Details:Teeth: 18Nr.
Steel - Black Oxide
- Max Belt Width: 25.40mm
- Taperlock: 1008
- Type: 2

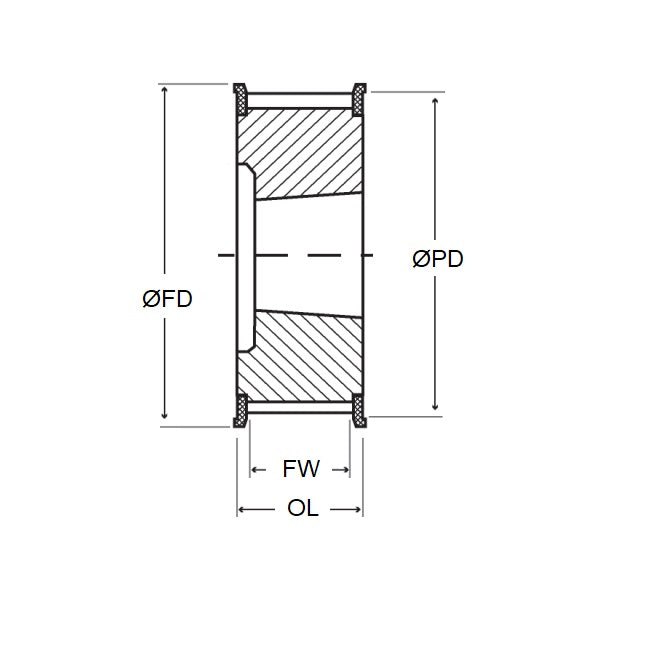

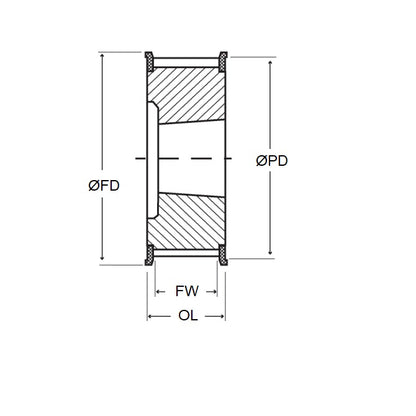

- Pitch Dia. (D): 54.55mm
- Flange Diameter (FD): 60.5mm
- Overall Length: 31.8mm
- Hub Diameter (HD): No Hub
Brand: MBA
Country of Origin: US
Alternatives: TL18L100-1008
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
