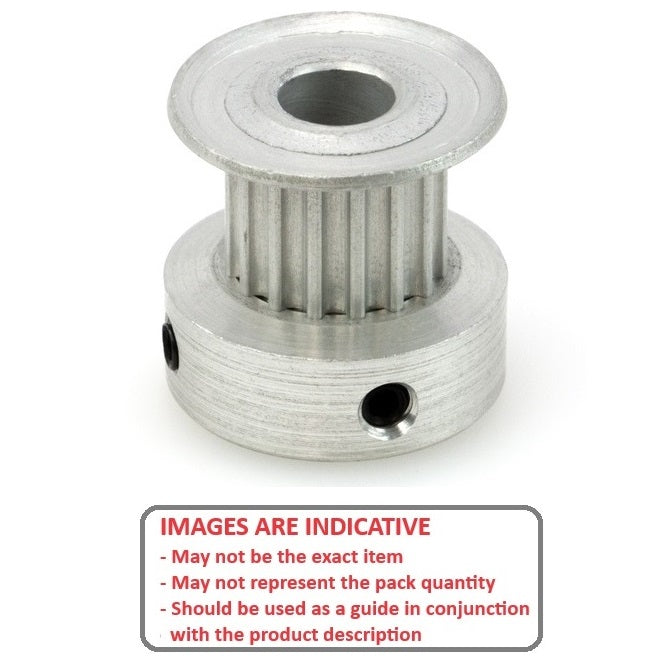

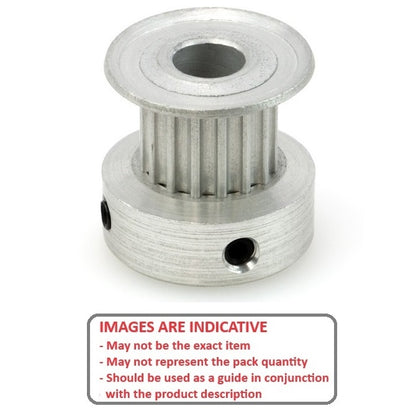

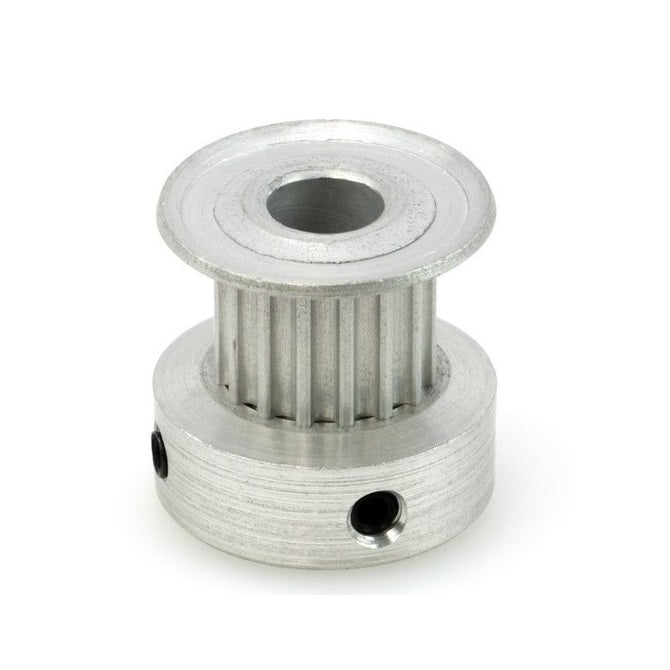

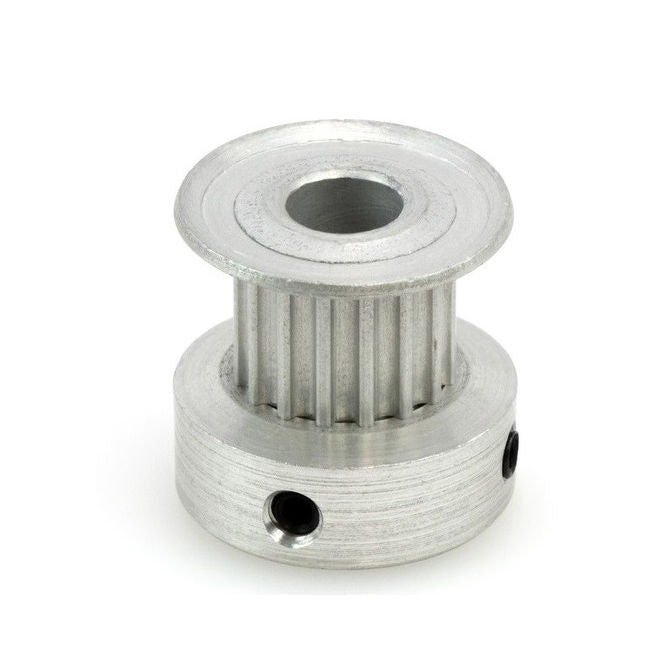

P-MXL-016-032FH-AL-G-048
Pulleys - 16 Teeth x 3.2 mm x 4.763 mm
MBA
Additional resources:Timing Pulleys Catalogue PDF
MXL Section Timing Belts
Qty: 4 available now
Order 50 or more for $25.25 AUD Each
Couldn't load pickup availability
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide
Product Details:Teeth: 16Nr.
Aluminium
- Max Belt Width: 3.20mm
- Bore (d): 4.763mm
- Bore Type: Finished
- Locking Type: Set Screw

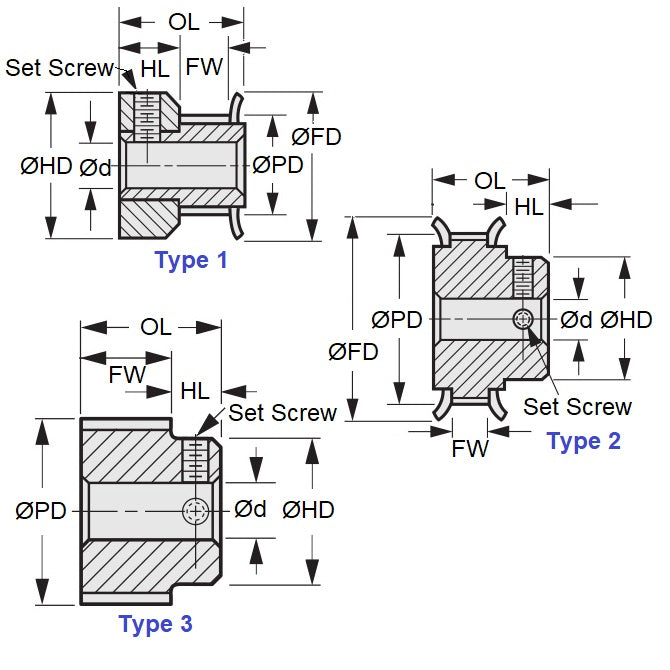

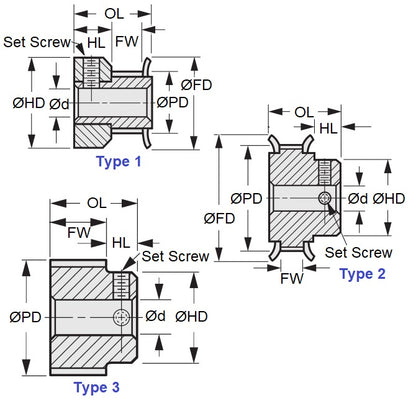

- Type: 1
- Pitch Dia. (PD): 10.34mm
- Flange Diameter (FD): 14.7mm
- Overall Length: 11.1mm
- Hub Diameter (HD): 14.7
Brand: MBA
Country of Origin: IN
Alternatives: 1375K16, 16MP012-6CA2, A6N16-016DF1206
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
