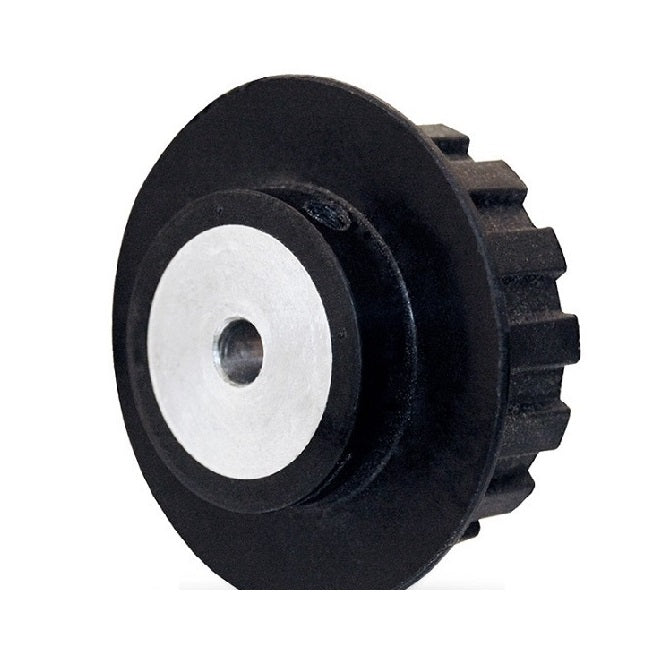

Inch Timing Pulleys - 15 tooth - 6.4x4 mm - Acetal

P-40D-015-060SF-PA-N-040

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Timing Pulleys Catalogue PDF
40DP Timing Belts
Price:
$0.50 AUD
$95.00 AUD $0.50 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Pickup available at Shop Location

Usually ready in 4 hours

Base Category: Pulleys - Inch Timing

Top Level Category: Pulleys - Inch Timing - 2.073mm Pitch 40DP - 6.4mm Wide Plastic Plain

Product Details:

Teeth: 15
Acetal
  • Max Belt Width: 6.40mm
  • Bore (d): 4.000mm

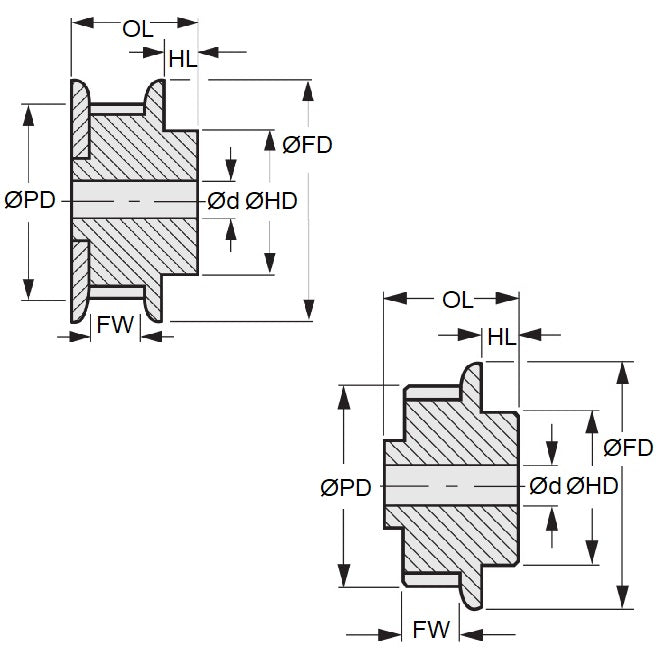

  • Type (See Diagram): Fig 1mm
  • Pitch Diameter (PD): 9.89mm
  • Flange Diameter (FD): 14.0mm
  • Overall Length: 17.5mm
  • Hub Diameter (HD): 11.0mm
  • Locking Type: No Locking Device

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: A6M6M15SF06004

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
