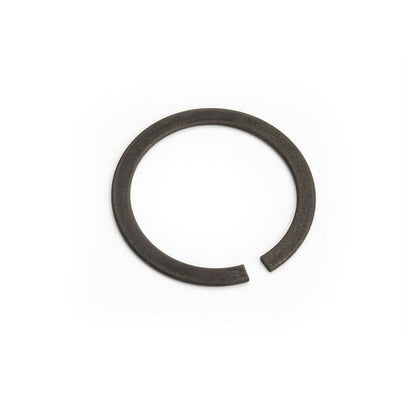

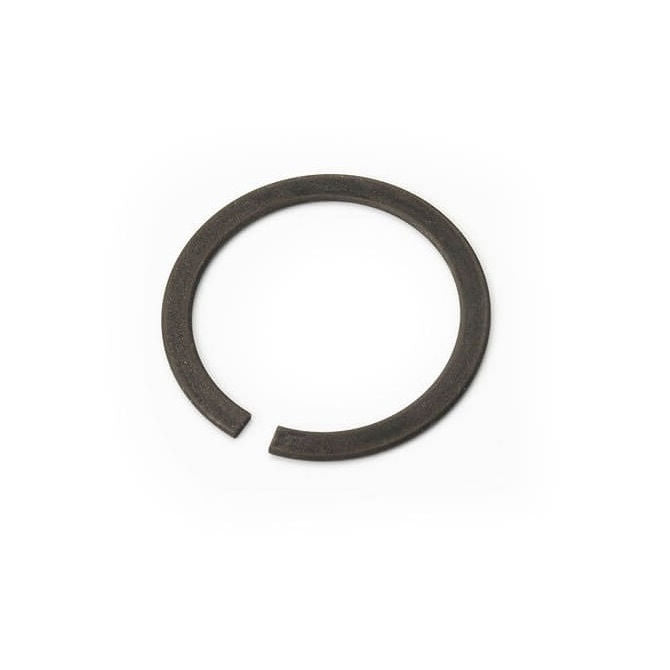

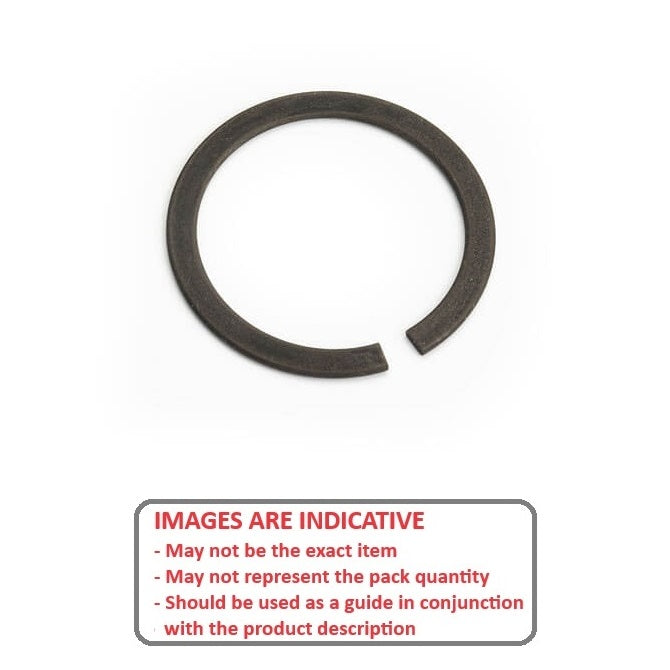

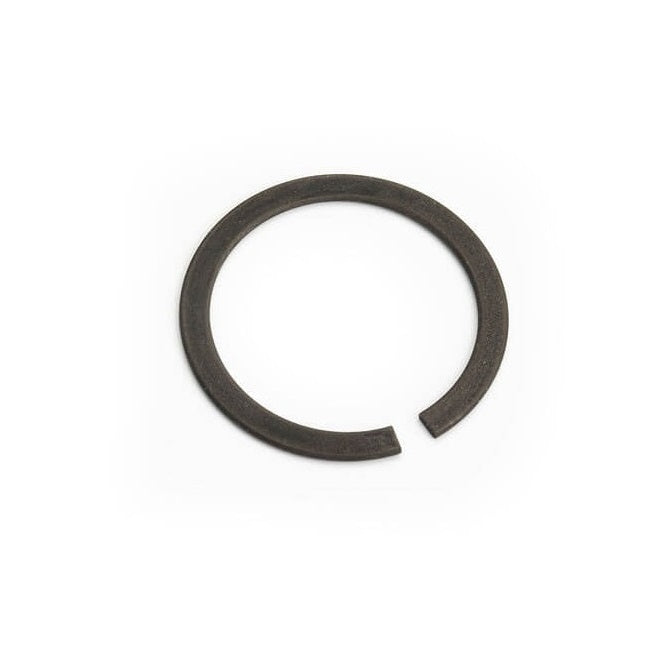

WRE-0150-LS (10 Pcs)
Snap - 15 mm x 1.2 mm x 17.5 mm
MBA
Additional resources:Spiral Rings
Wire Rings
Snap Rings and Spiral Rings PDF
Qty: 1 available now (10 pcs)
Couldn't load pickup availability
Base Category: Snap Rings - External
Top Level Category: Snap Rings - External - Basic - Carbon Steel

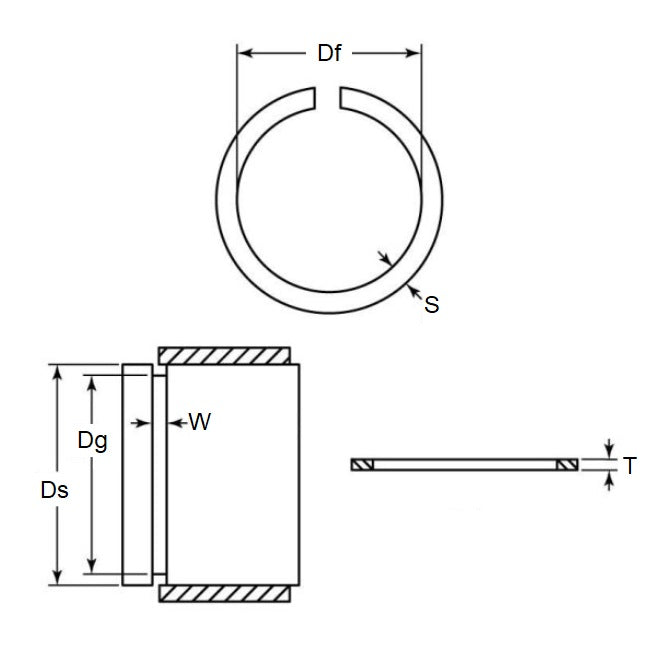

Product Details:Shaft or Bearing OD (d1): 15.00mm
Spring Steel
- Clip Thickness (s): 1.20mm
+0/-0.10
- Approx. Free OD: 17.5mm
- Free ID Max (d3): 14.00mm
- Section (b): 1.75mm
+0/-0.10
- Groove Dia. (d2): 14.40mm
+0/-0.11
- Groove Width (m): 1.30
- Spring Steel
- Section Profile: Rectangular with Square Edge
Brand: MBA
Country of Origin: USA
Alternatives: DSW-015, M2400-0150APP, SW15, SW15-BLS, WRE0150SQ
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
