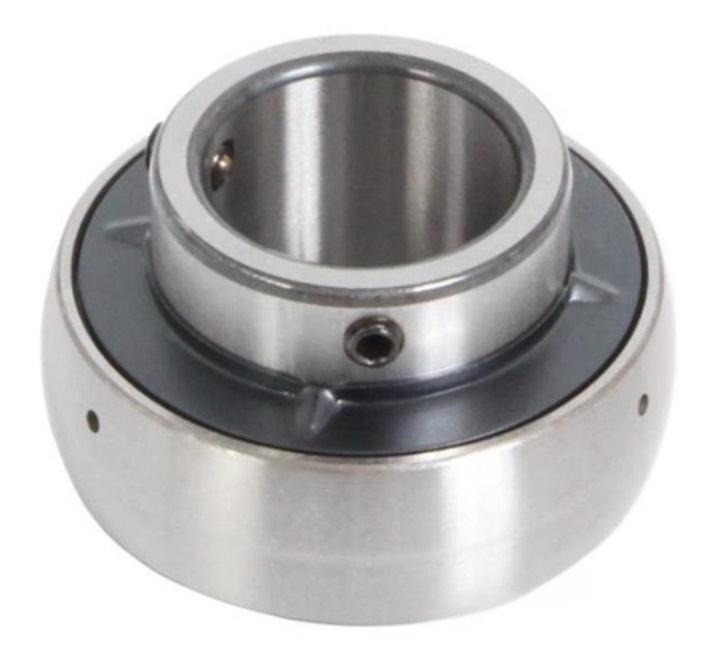

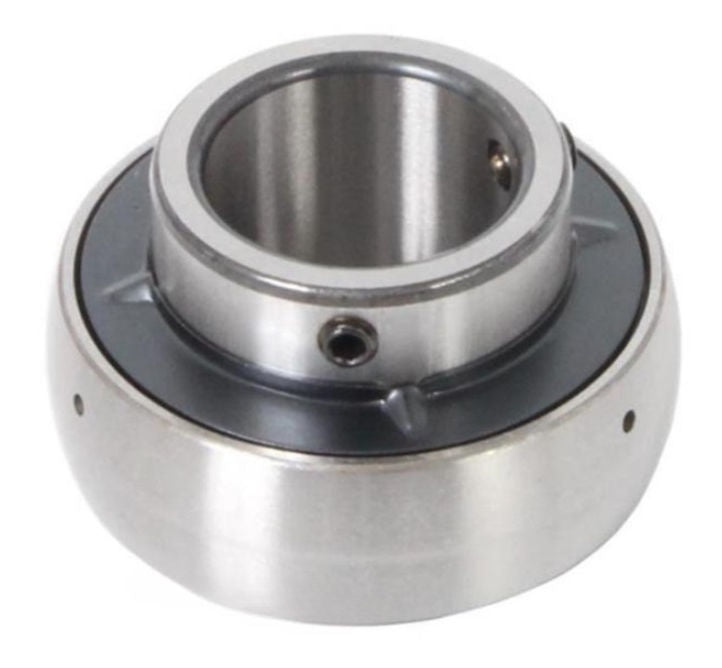

Spherical OD Bearings - 15.875x47x31 mm Suits Cast Iron Housings - Chrome Steel Bearing

UC202-10 (Each)

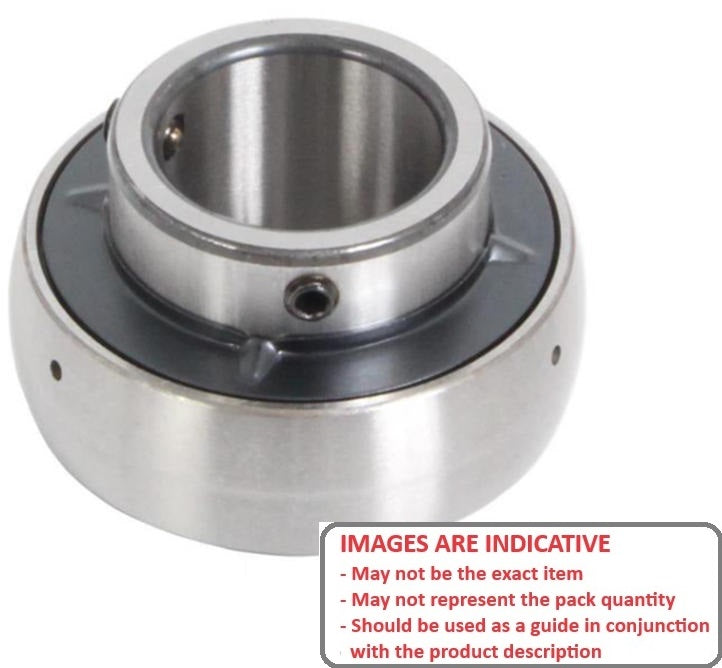

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spherical OD Bearings - 15.875x47x31 mm - Chrome Steel
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$17.86 AUD
$21.44 AUD $17.86 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now

Order 50 or more
for $16.07 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 12, 2026

5/8 inch Bearing - 15.875x47x31 mm Spherical OD Bearings - Chrome Steel - Sold Per Each:

Base Category: Bearings - Spherical OD

Top Level Category: Bearings - Spherical OD - Suits Cast Iron Housings

Product Details

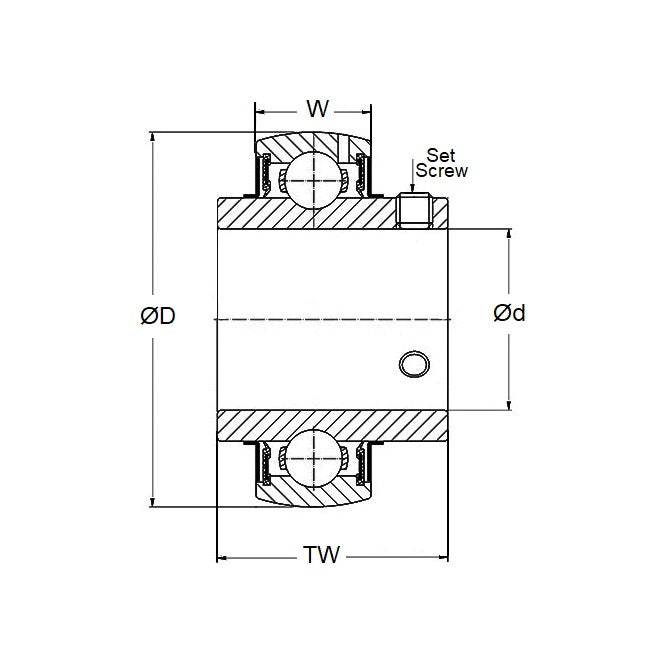

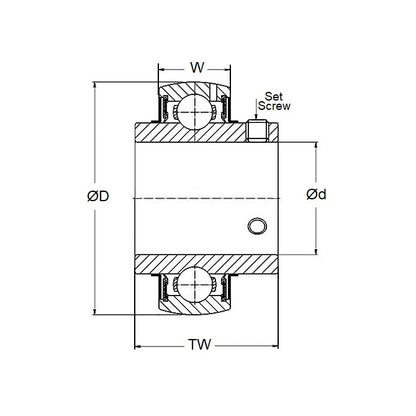

Inside Diameter: 15.875mm
(15.875mm is 0.625 in.)

Chrome Steel
  • Inside Diameter: 15.875mm
    (15.875mm is 0.625 in.)
  • Outside Diameter: 47.000mm
    (47.000mm is 1.85 in.)
  • Bearing Width: 31.000mm
    (31.000mm is 1.22 in.)
  • Suits Housing: P203, F204, FL204, FC204, FB204
  • Lubrication type: Grease Hole in Bearing

Brand: MBA
Country of Origin: JP

Product Compliance and Data


We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
UC20210, UC202
View full details
