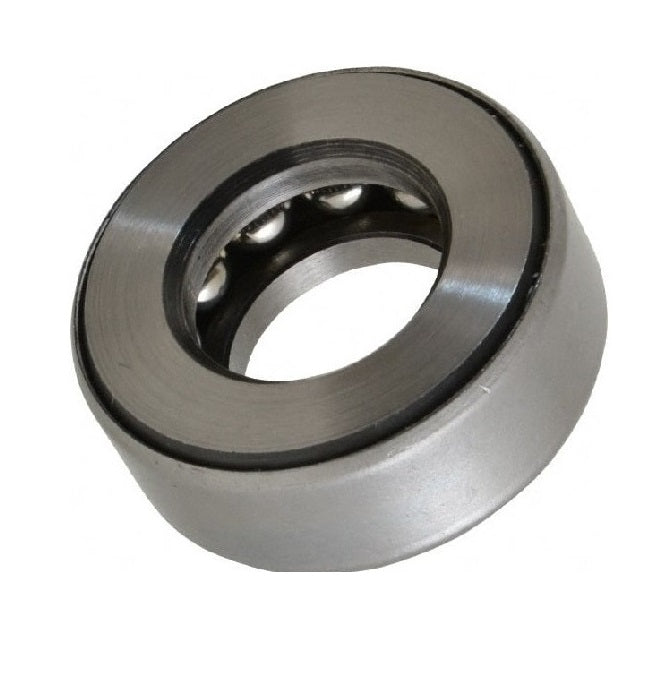

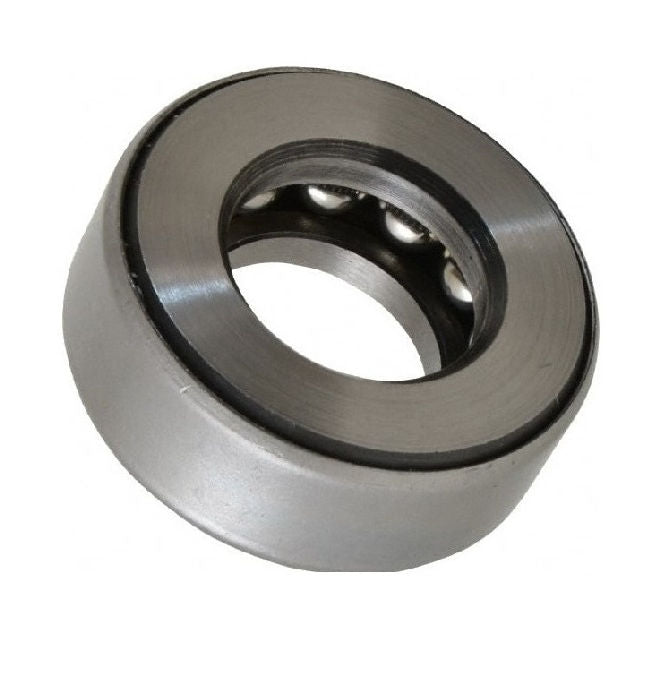

Thrust Ball Bearings - 15.875x36.119x11.506 mm / 16.662 mm - Carbon Steel

T-0159-0361-BND

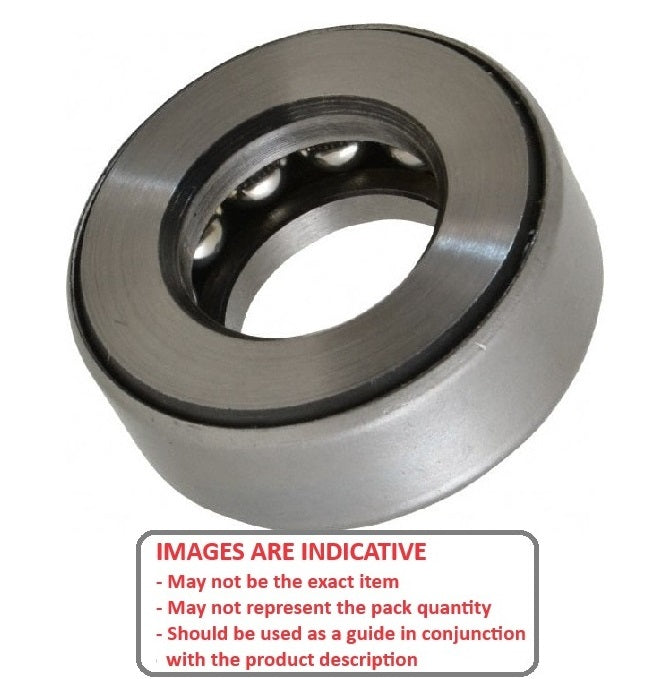

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Thrust Ball Bearings - 15.875x36.119x11.506 mm / 16.662 mm - Carbon Steel
1 4

MBA

Additional resources:
Thrust Bearings PDF Catalogue
Shafting
Price:
$40.95 AUD
$40.95 AUD
Each
Qty: 5 available now
Order 50 or more for $36.86 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 12, 2025

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Banded

Product Details:

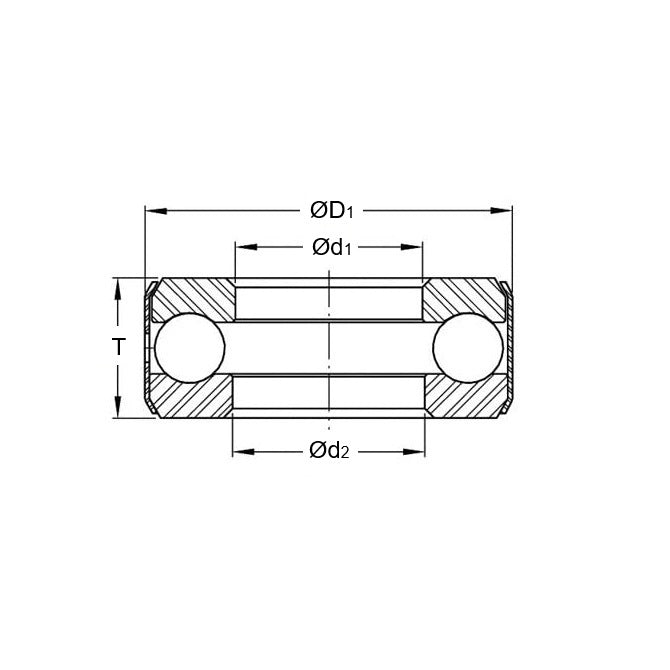

Shaft Diameter (A): 15.875mm
(15.875mm is 0.625 in.)

Carbon Steel
  • OD (D1): 36.119mm
    (36.119mm is 1.422 in.)
  • Thickness (T): 11.506mm
    (11.506mm is 0.453 in.)
  • Bore (d2): 16.662mm
  • Dynamic Load Capacity: 437kgf
  • Static Load Capacity: 616kgf
  • Max. Speed: 1000RPM

Brand: MBA
Country of Origin: US

Alternative Parts Include: 606V, 606-V, SKF9065, SKF-9065, NICE

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
