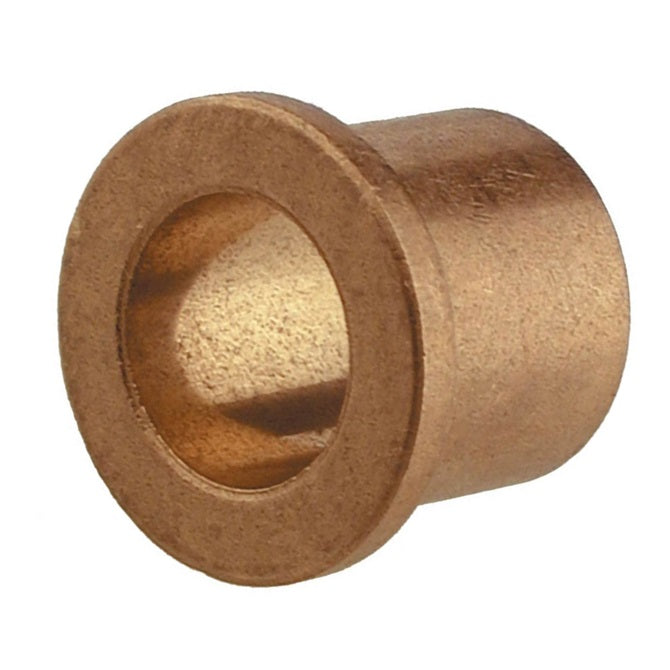

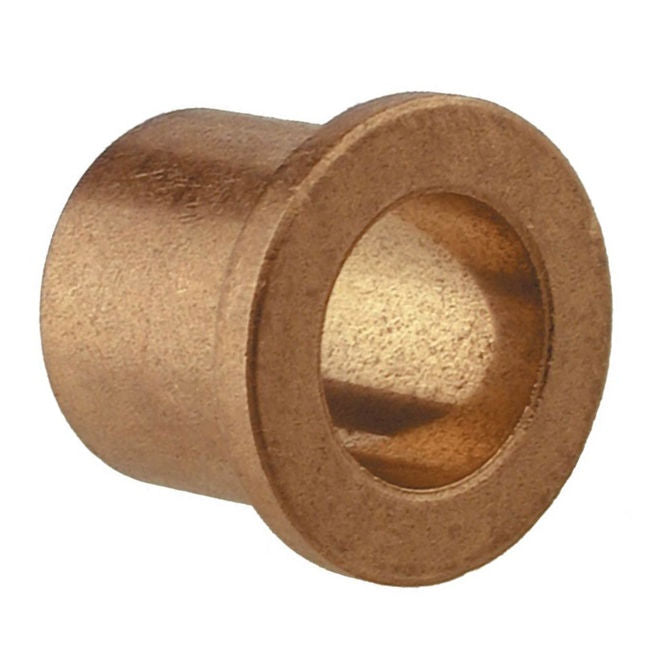

Flanged Bushes - 15.875x19.05x25.4 mm - Bronze SAE 841 Sintered

BF0159-0191-0254-BS2524LH

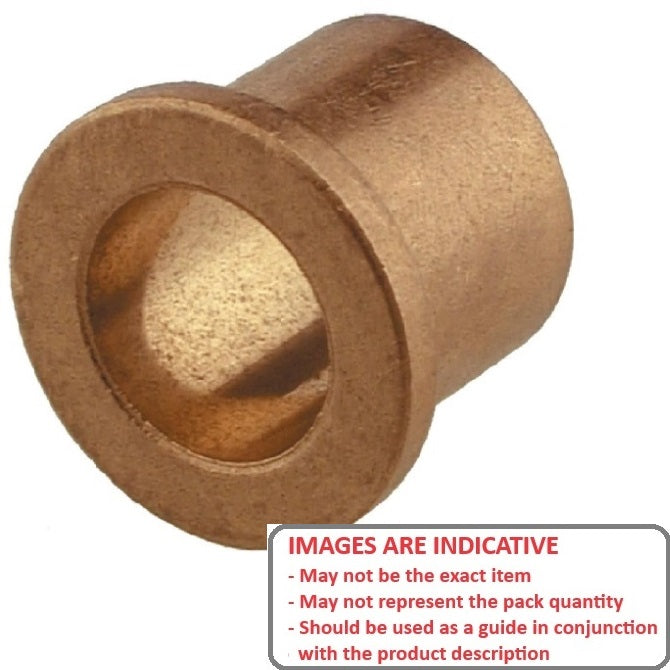

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged Bushes - 15.875x19.05x25.4 mm - Bronze SAE 841 Sintered
1 4

MBA

Additional resources:
Bushes PDF Catalogue
Price:
$5.23 AUD
$5.23 AUD
Each
Qty: 51 available now
Order 50 or more for $4.71 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 12, 2025

Base Category: Bushes - Flanged

Top Level Category: Bushes - Flanged - Bronze - Sintered

Product Details:

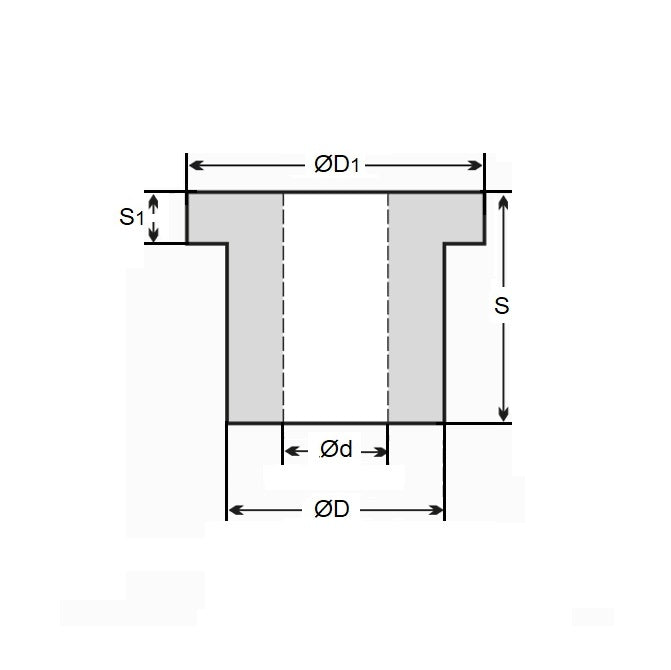

Nom. ID (d): 15.875mm
+ 0.012 / + 0.038
(15.875mm is 0.625 in.)

Bronze SAE 841 Sintered
  • Nom. OD (D): 19.050mm
    + 0.038 / + 0.063
    (19.050mm is 0.75 in.)
  • Length (s): 25.400mm
    +/- 0.127
    (25.400mm is 1 in.)
  • Flange OD (D1): 25.40mm
  • Flange Thickness (S1): 2.38mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: BF015901910254BS, 6338K471, FF7031, FF703-1, FF-703-1, ALTPART, Oilite, Oilube

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
