P-R10D-PKGL
Plastic Bearings - 15.875 mm x 34.925 mm x 11.112 mm
KMS
Tolerances
Plastic Bearings PDF Catalogue
Shafting
Out Of Stock
Order 50 or more for $137.91 AUD Each
Couldn't load pickup availability
Base Category: Bearings - Plastic
Top Level Category: Bearings - Plastic - PEEK - Glass Balls

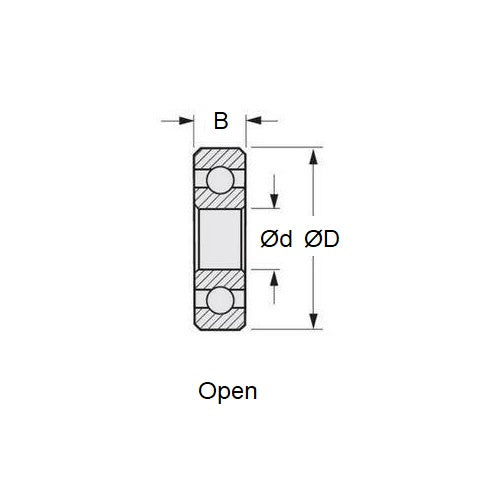

Product Details:ID (d): 15.875mm
+ 0.076 / - 0.000

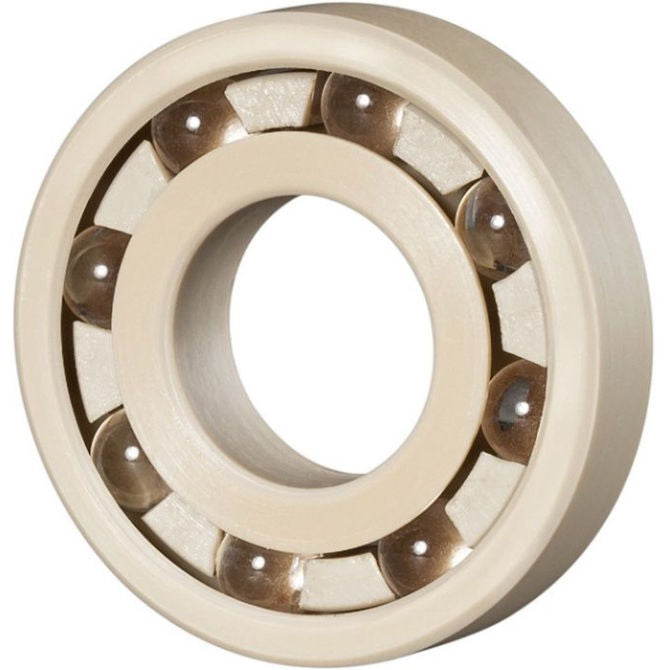

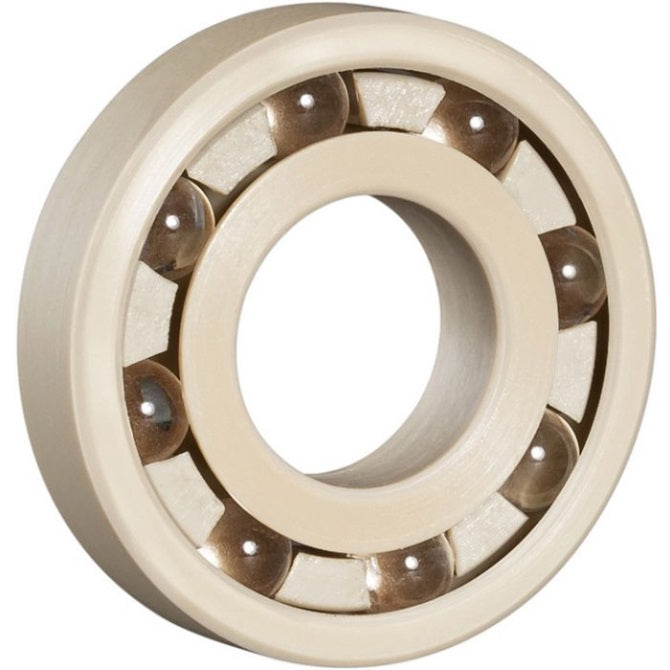

PEEK with Glass Balls
- OD (D): 34.925mm
+ 0.000 / - 0.102
- Width (B): 11.112mm
+ 0.127 / - 0.000
- Max RPM in Air: 1283
- Dynamic Load Rating: 38.8Kg
- Static Load Rating: 30.4Kg
Brand: KMS
Country of Origin: US
Alternatives: PKR10B-5/8B-G, PR10DPGL, R1
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
