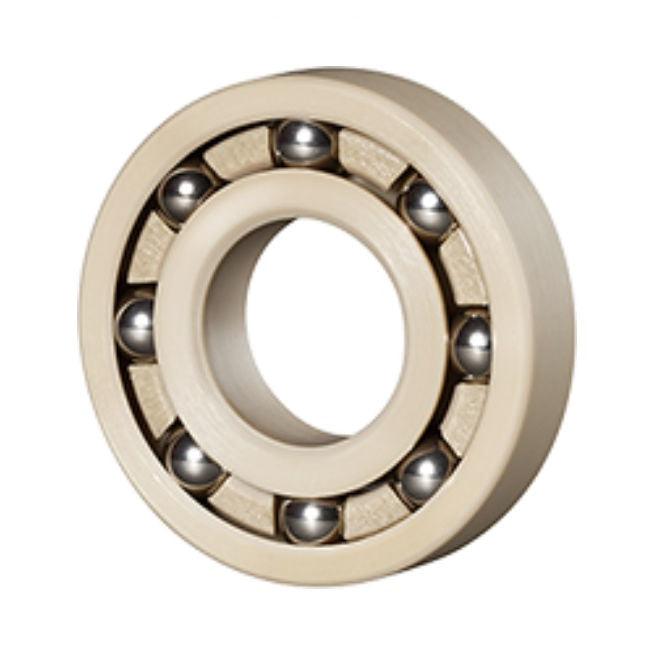

Plastic Bearings - 15.875x34.925x11.112 mm - PEEK with Stainless Steel 316 Balls Bearing

Name: 1118420 | P-R10D-PKS6 (Each) --- Plastic Bearings - 15.875x34.925x11.112 mm - PEEK with Stainless Steel 316 Balls Bearing
Rating: 5.0 (1 reviews)

P-R10D-PKS6 (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store Name: Small Parts & Bearings

Category: Bearings - Plastic - PEEK - 316 Stainless Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$193.50 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more
for $174.15 AUD Each

Product Details

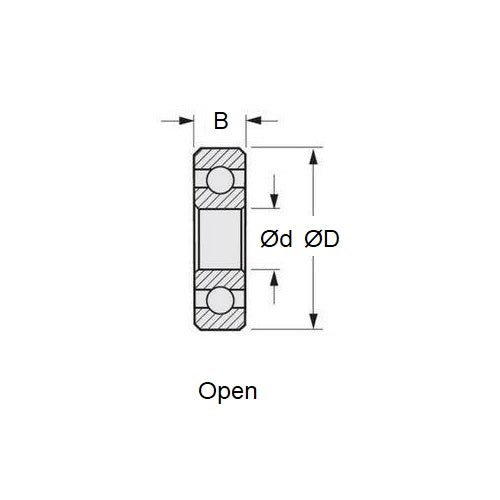

ID (d): 15.875mm
_{+ 0.076 / - 0.000}
_{(15.875mm is 0.625 in.)}

PEEK with Stainless Steel 316 Balls

ID (d): 15.875mm
_{+ 0.076 / - 0.000}
_{(15.875mm is 0.625 in.)}
O.D. (D): 34.925mm
_{+ 0.000 / - 0.102}
_{(34.925mm is 1.375 in.)}
Width (B): 11.112mm
_{+ 0.127 / - 0.000}
_{(11.112mm is 0.437 in.)}
Max RPM in Air: 1283
Notes: Unlubricated
Type: Radial
Dynamic Load Rating: 38.8Kg
Static Load Rating: 30.4Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

KMS PKR10B-5/8B-6
PKR10B5/8B6
PR10DPS6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PR10DPKS6, PR10D
