FK206
Housings - 130 mm x 78 mm x 40.2 mm
MBA
Out Of Stock
Order 50 or more for $31.05 AUD Each
Couldn't load pickup availability
Base Category: Housings - Flanged Offset
Top Level Category: Housings - Flanged Offset - Cast Iron

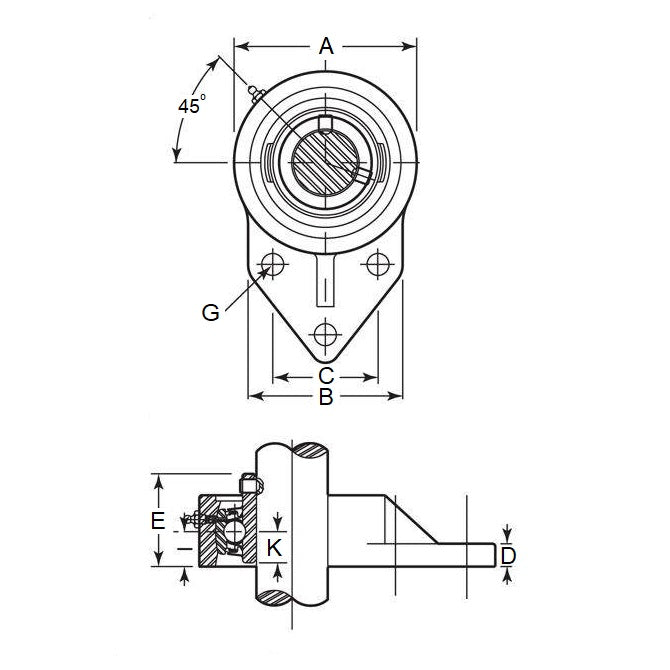

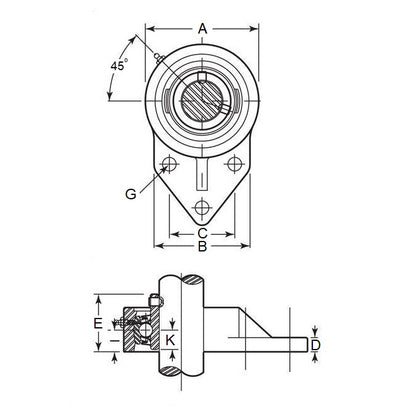

Product Details:Height (H): 130.000mm
- Length (L): 78.000mm
- Width - Assembled (W): 40.200mm
- Bolt Hole Centres (J): 40.000mm
- Base Width (A1): 13.000mm
- Bearing Width (B): 38.100mm
- To Suit Bearing: UC206
- Bolt Hole Size (s): 10.000mm
- Offset Width (Ow): 65.000mm
Brand: MBA
Country of Origin: DE
Alternatives: FK206J
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
