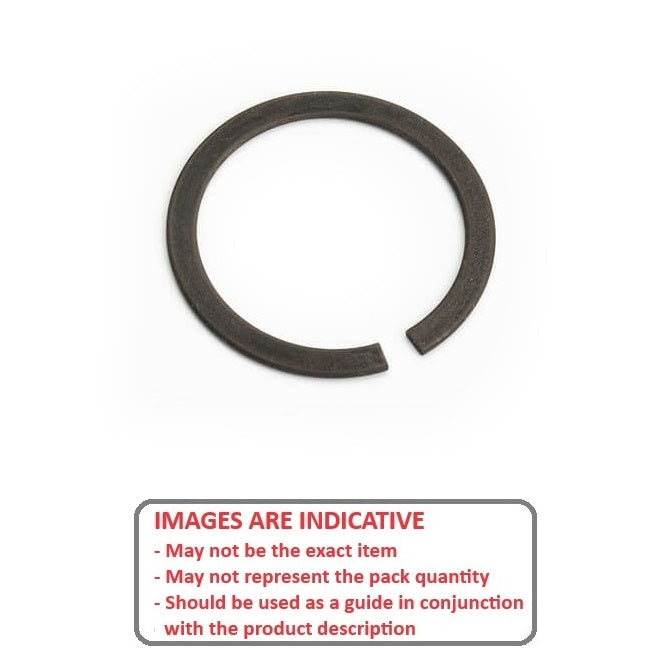

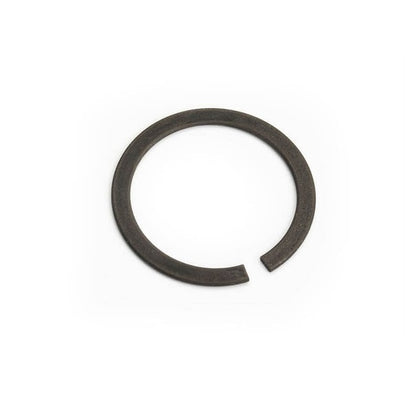

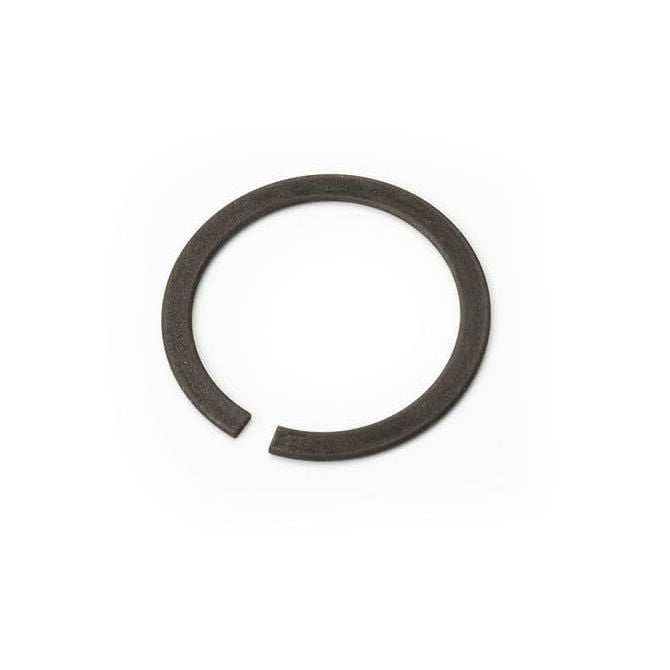

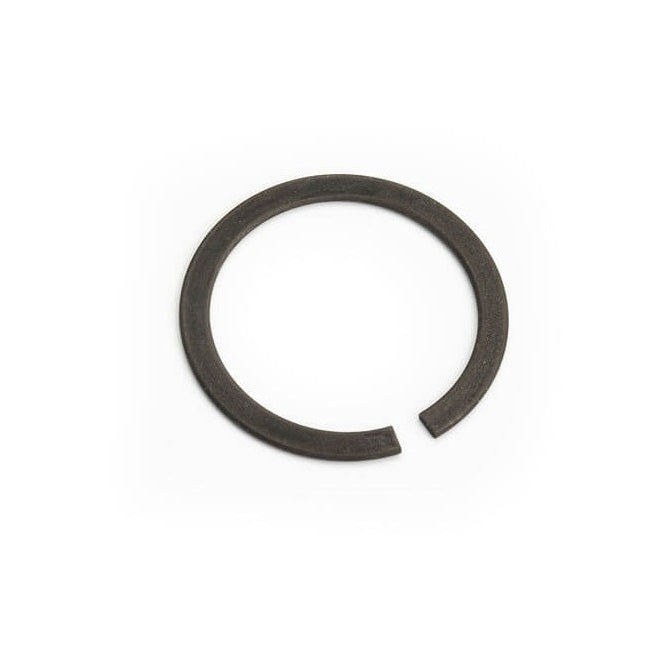

External Retaining Rings - 12x1x11.5 mm - Spring Steel

WRE-0120-LS (10 Pcs)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 12x1x11.5 mm - Spring Steel
1 4

MBA

Additional resources:
Snap Rings and Spiral Rings PDF
Price:
$3.49 AUD
$9.92 AUD $3.49 AUD
per 10
Qty: 229 available now (2290 pcs)
Order 50 or more (500 pcs) for $3.14 AUD per 10
Only 229 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 668

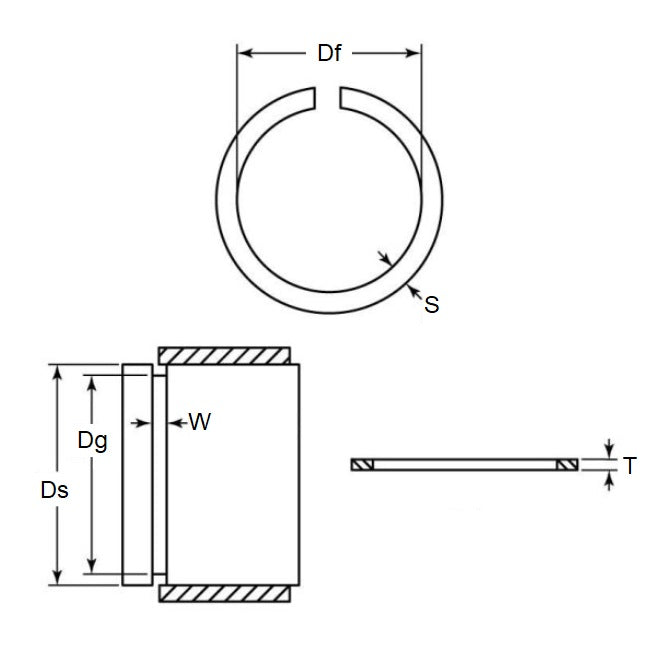

Shaft or Bearing OD (d1): 12.00mm
(12.00mm is 0.472 in.)

Spring Steel
  • Clip Thickness (T): 1.00mm
    + 0 / - 0.10
    (1.00mm is 0.039 in.)
  • Groove Dia. (Dg): 11.50mm
    + 0 / - 0.11
    (11.50mm is 0.453 in.)
  • Approx. Loose Circlip ID (A): 11.20mm
  • Radial Wall (S) min/max: 1.30mm
    + 0 / - 0.10
  • Groove Width (W): 1.10mm
  • Approx. Loose Clip OD: 13.8
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: USA

Alternative Parts Include: WRE0120SQ, SW12, SW12-BLS, SW12BLS, DSW012, DSW-012, NoCor, Nachi, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
