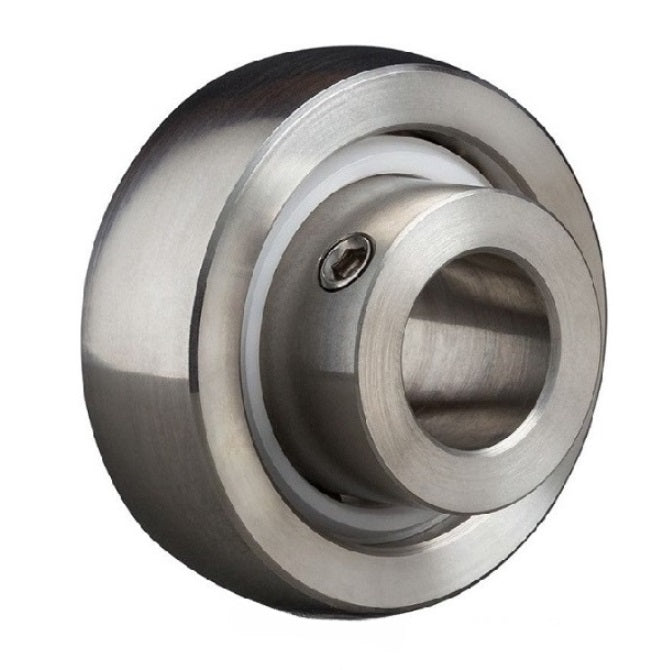

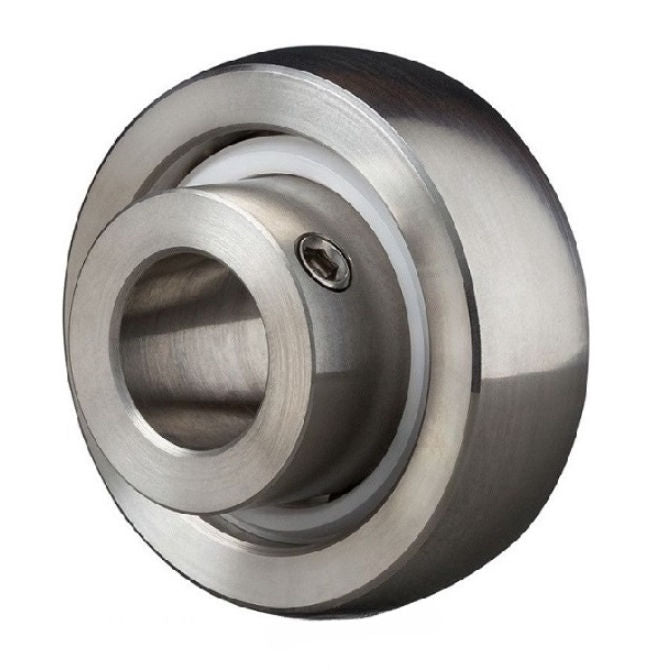

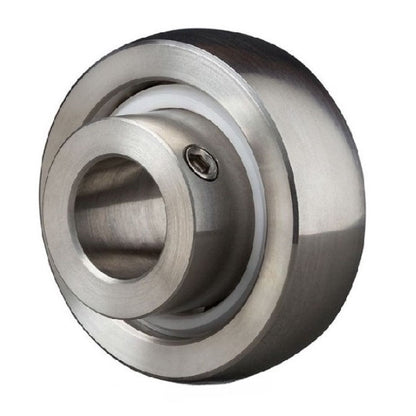

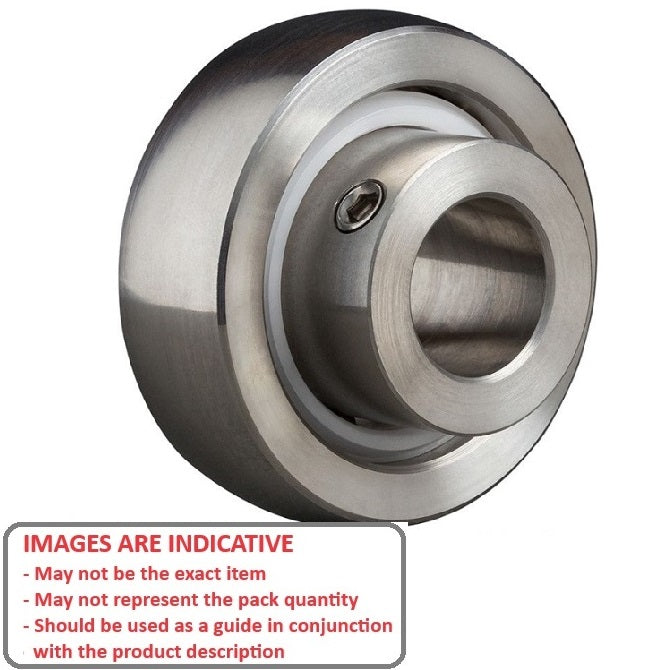

S6-UC204-8
Bearings - 12.7 mm x 47 mm x 15 mm
MBA
Qty: 1 available now
Order 50 or more for $145.35 AUD Each
Couldn't load pickup availability
Base Category: Bearings - Spherical OD For Plastic Housings
Top Level Category: Bearings - Spherical OD For Plastic Housings - 316 Stainless Steel

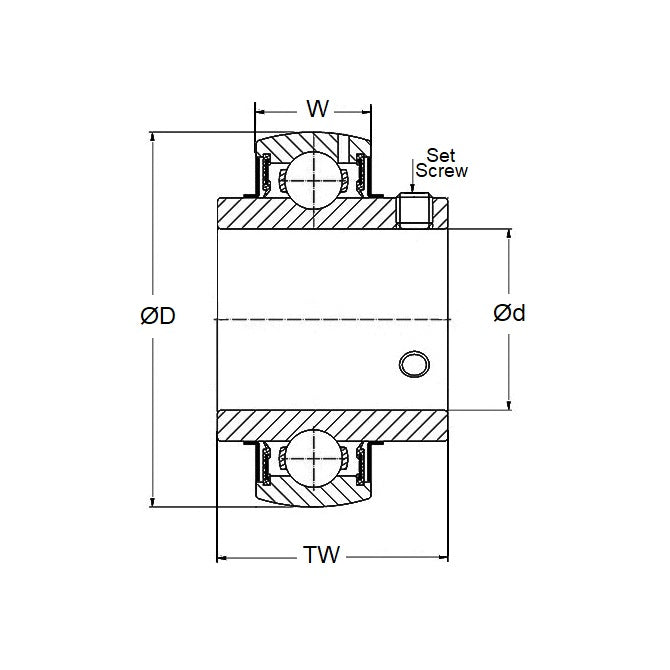

Product Details:Inside Diameter: 12.700mm
Stainless 316 Grade
- Outside Diameter: 47.000mm
- Bearing Width: 15.000mm
- Suits Housing: P204PE / F204PE / FL204PE / FB204PE
- Type: Single Row Ball
- Overall Width: 24.130mm
- Max RPM: 840
- Load Capacity (Dynamic): 104.5Kg
- Load Capacity (Static): 69.6Kg
Brand: KMS
Country of Origin: US
Alternatives: SSIB-1-2, SSIB204-1/2, SSIB204-1-2
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
