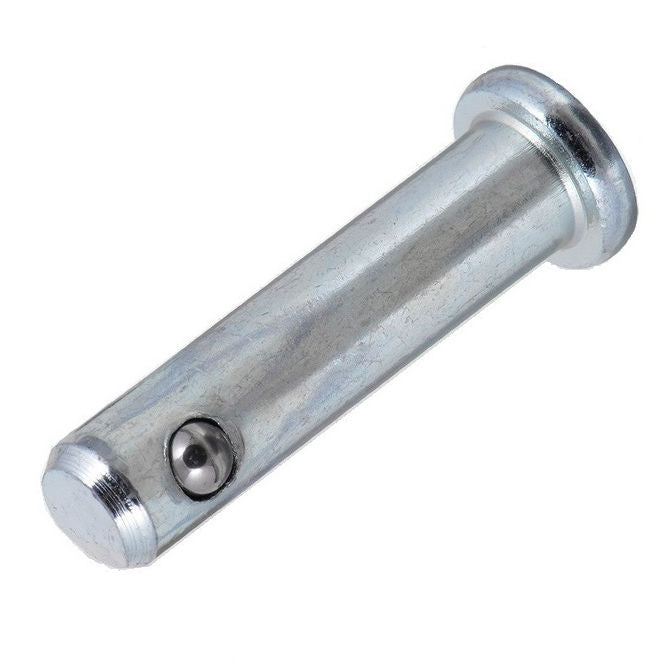

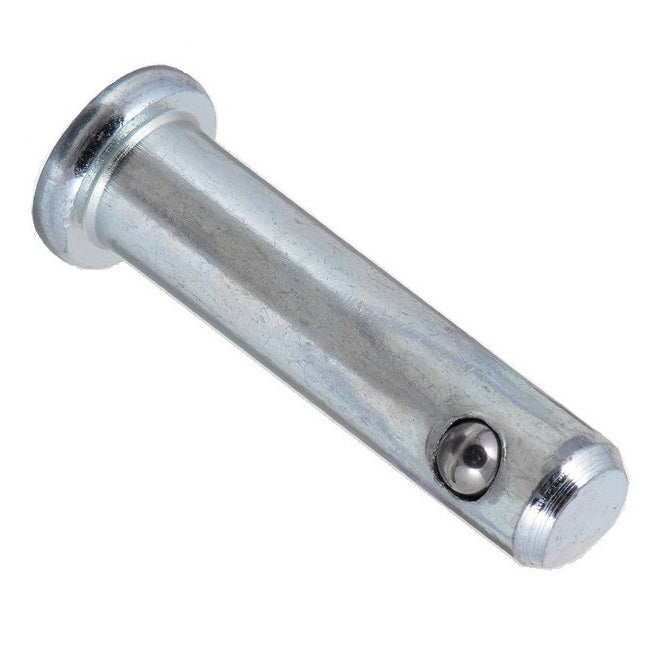

Clevis Pins - 12.7x38.1x50.8 mm - Zinc Plated Low Carbon Steel

BLP-127-0381-CZ

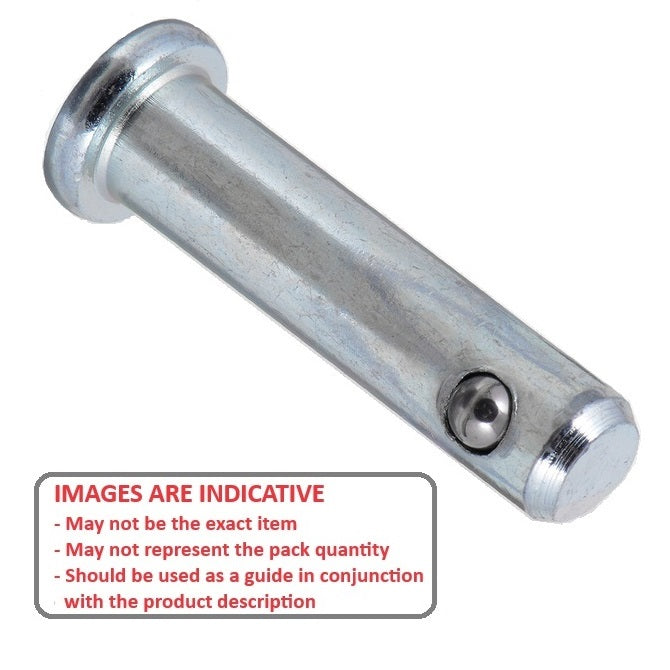

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Clevis Pins - 12.7x38.1x50.8 mm - Zinc Plated Low Carbon Steel
1 4

MBA

Additional resources:
Master Pins Catalogue PDF
Assortment Kits
Price:
$3.59 AUD
$8.10 AUD $3.59 AUD
Each
Qty: 20 available now
Only 20 may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Clevis

Top Level Category: Pins - Clevis - Self Locking Zinc Plated

Product Details:

Additional stock available from USA subject to Prior Sale = 523

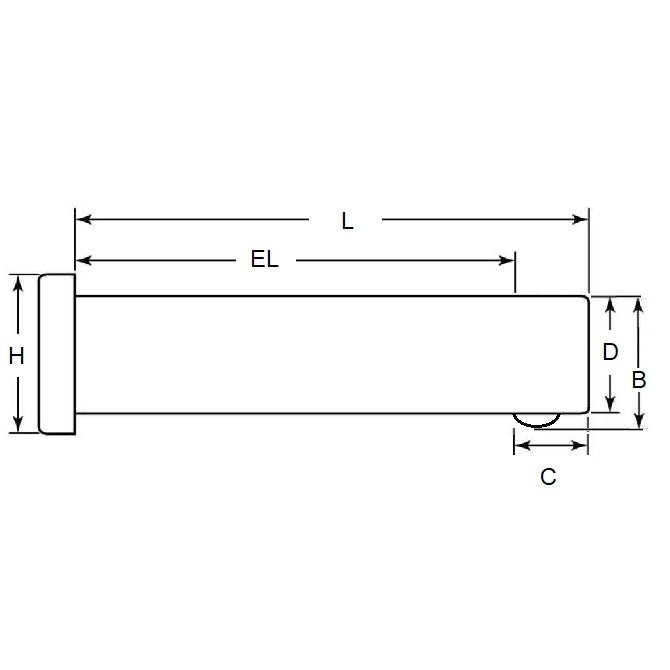

Nom. Pin Diameter (A): 12.70mm
- 0.10 / - 0.23
(12.70mm is 0.5 in.)

Zinc Plated Low Carbon Steel
  • Grip Length (EL): 38.10mm
    + 0.51 / - 0.00
    (38.10mm is 1.5 in.)
  • Nom. Length (L): 50.80mm
    + 0.51 / - 0.00
    (50.80mm is 2 in.)
  • Locking Ball to End (C): 12.7mm
  • Open Ball Distance (B): 1.27 to 1.5mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: 90156A387, CLPCZ-0500-2000, CLPCZ05002000, CLP1232, CLP-1232, BLP1270381Z, ALTPART, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
