Single Row Ball Bearings - 12.7x38.1x11 mm - Chrome Steel SAE 52100

R12416-2RS

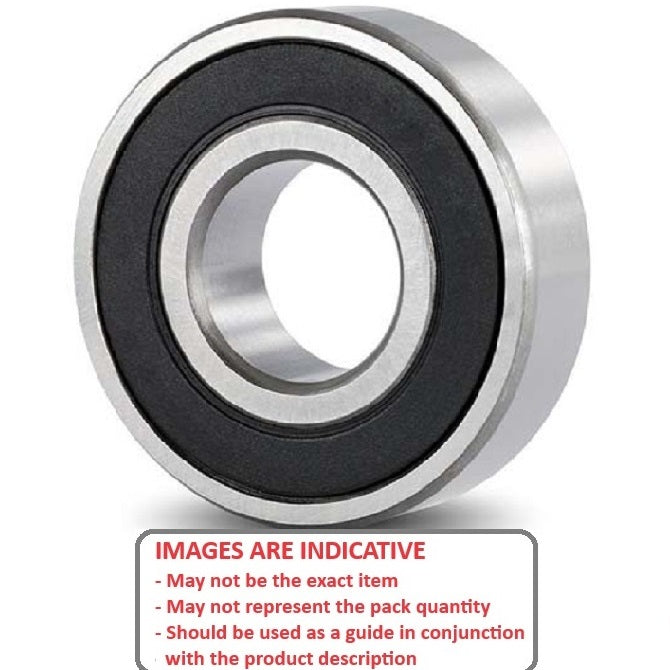

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

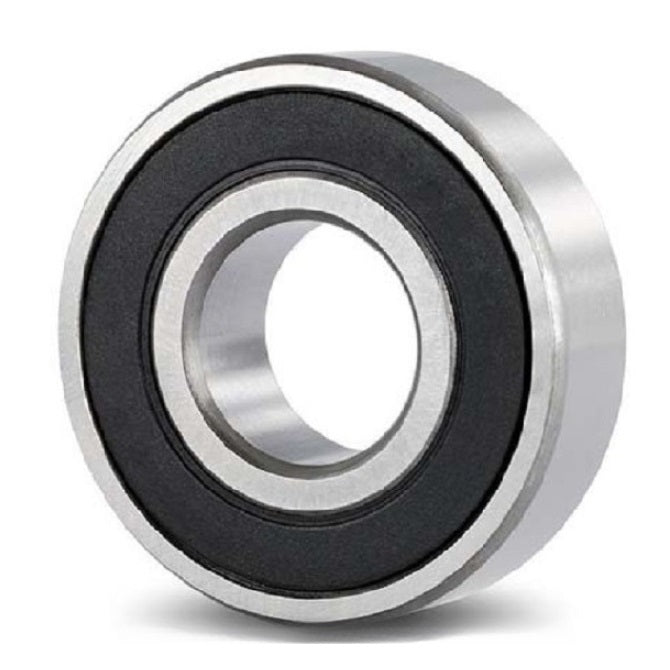

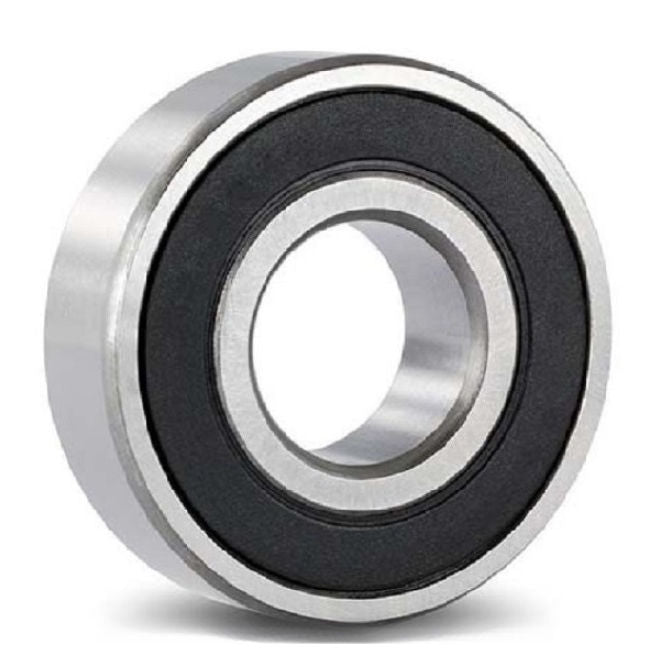

  • Single Row Ball Bearings - 12.7x38.1x11 mm - Chrome Steel SAE 52100
1 4

MBA

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$105.41 AUD
$105.41 AUD
Each
Out Of Stock
Order 50 or more for $94.87 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before May 29, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Product Details:

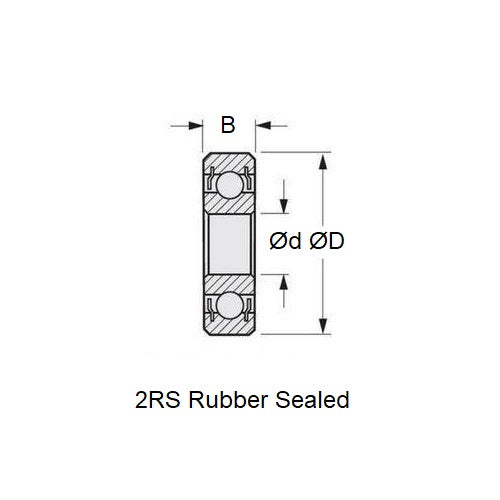

ID (d): 12.700mm
+ 0.000 / - 0.0075
(12.700mm is 0.5 in.)

Chrome Steel SAE 52100
  • OD (D): 38.100mm
    + 0.000 / - 0.011
    (38.100mm is 1.5 in.)
  • Width (B): 11.000mm
    + 0.000 / - 0.125
    (11.000mm is 0.433 in.)
  • Precision Grade: Abec 1
  • Closure Type: 2RS
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Alternative Parts Include: R12416 / 11, R12416, 202NPP9, FAFNIR, Torrington, Sealed, R12416BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
