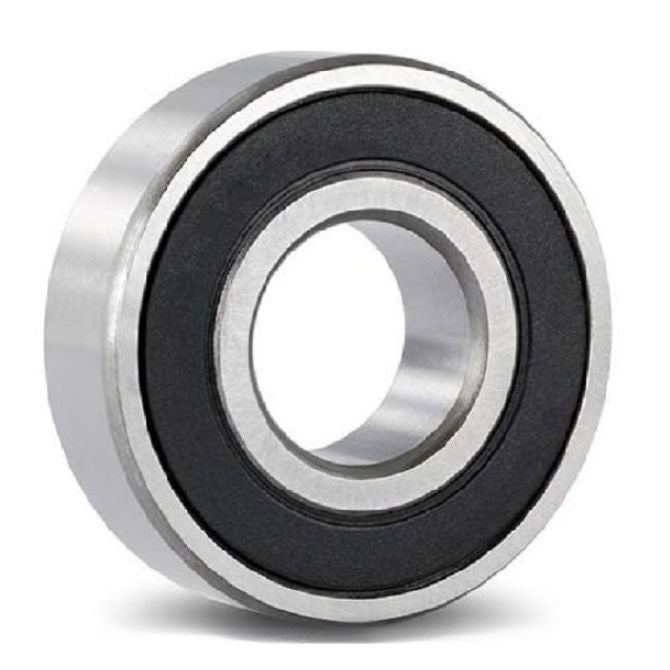

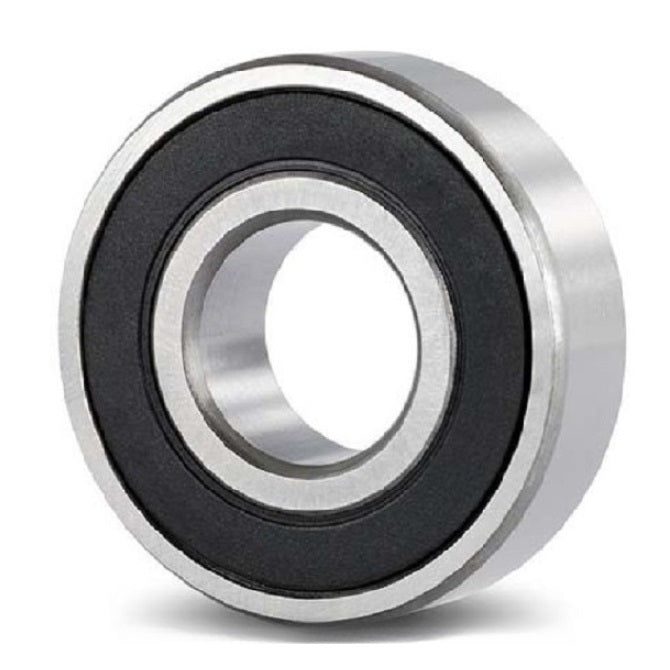

Single Row Ball Bearings - 12.7x32x10 mm Unflanged - Chrome Steel SAE 52100

6201-16-2RS

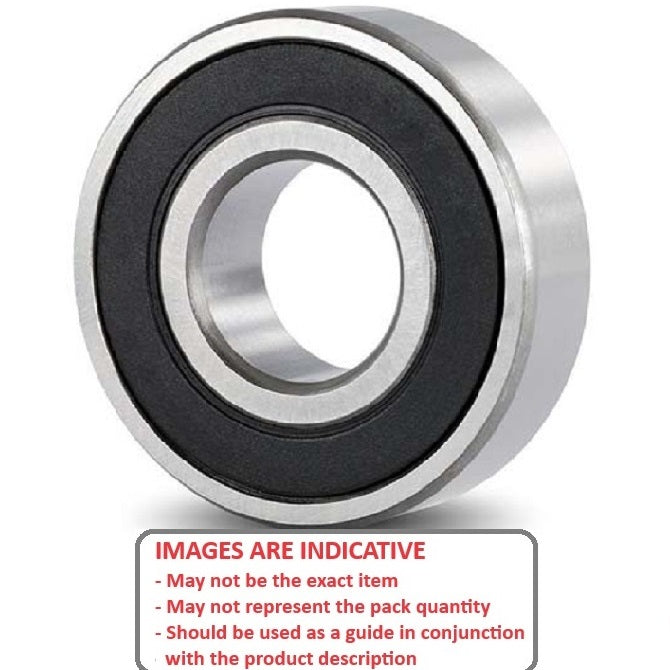

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 12.7x32x10 mm - Chrome Steel SAE 52100
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$4.95 AUD
$8.82 AUD $4.95 AUD
Each
Qty: 5 available now
Order 50 or more for $4.46 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 17, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

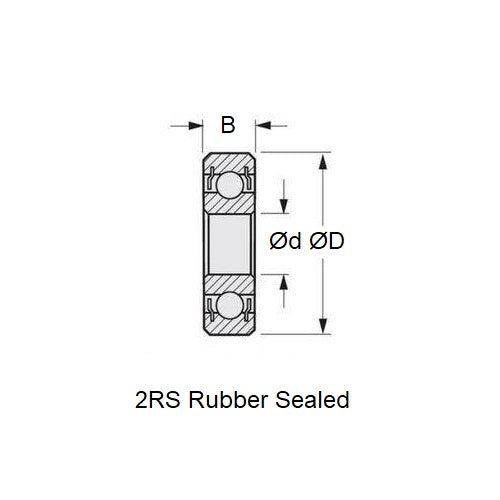

Product Details:

Non ISO Bore


ID (d): 12.700mm
+ 0.000 / - 0.0075
(12.700mm is 0.5 in.)

Chrome Steel SAE 52100
  • OD (D): 32.000mm
    + 0.000 / - 0.011
    (32.000mm is 1.26 in.)
  • Width (B): 10.000mm
    + 0.000 / - 0.125
    (10.000mm is 0.394 in.)
  • Precision Grade: Abec 1
  • Closure Type: 2RS
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Alternative Parts Include: 6201-16, 620116, 6201-08DDU, 62011RS, 620108DDU, 6201-1-2-RS, 6201 / 10, 620112RS, 6201-1-2-2RS, 6201122RS, LS3-RS, LS3RS, LS3-2RS, Sealed, KSK, WTW, Jesa, 6201-16BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
