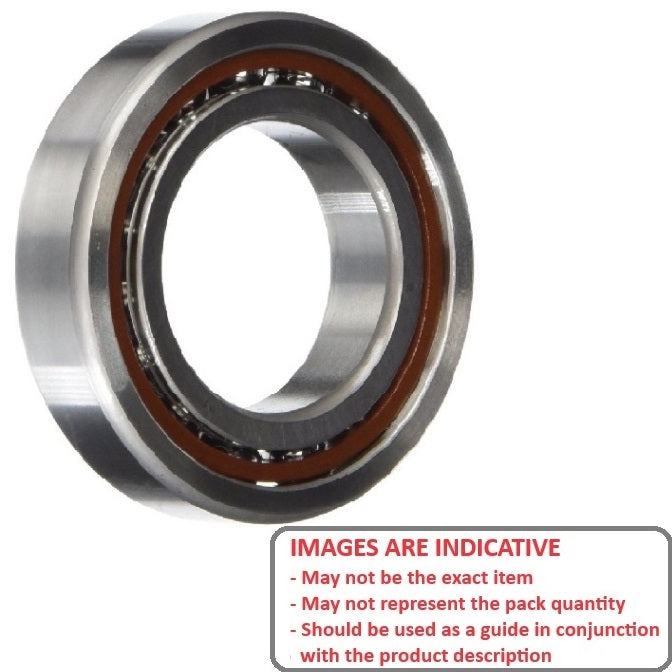

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

R8-C3-T9H (2 Pcs)

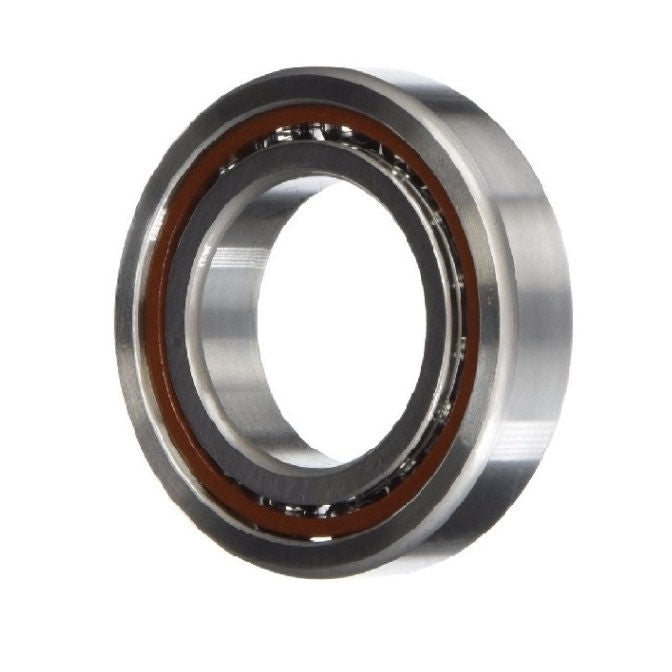

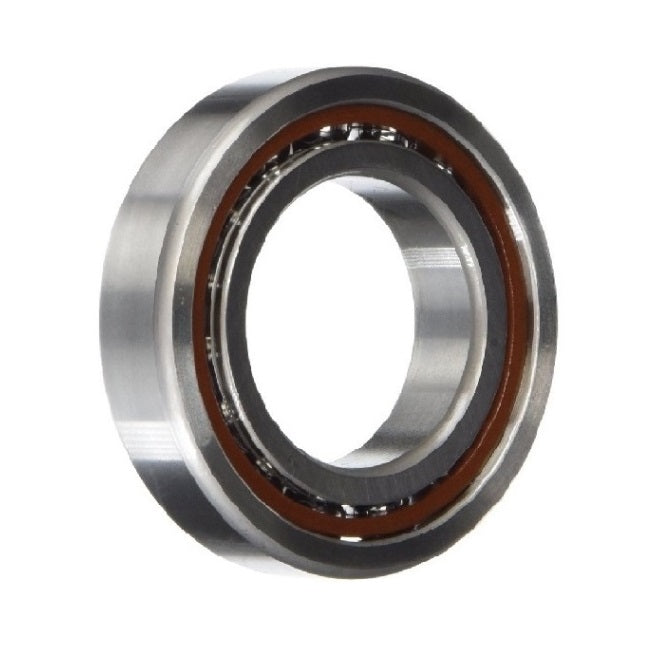

Bearings - 12.7 mm x 28.575 mm x 6.35 mm

Name: 1103732 | R8-C3-T9H (2 Pcs) --- Bearings - 12.7 mm x 28.575 mm x 6.35 mm
Brand: MBA
SKU: R8C3T9H
Price: 2.59 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$2.59 AUD

~~$0.00 AUD~~ $2.59 AUD

per 2
Qty: 63 available now (126 pcs)
Order 50 or more (100 pcs) for $2.33 AUD per 2

Similar Items

Only 63 packs may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Product Details:

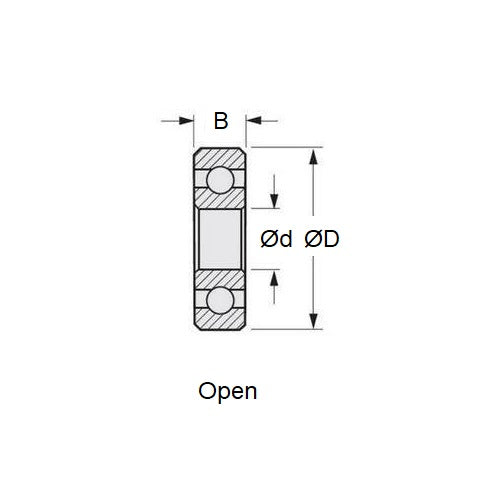

ID (d): 12.700mm
_{+0.000/-0.0075}

SAE52100 Chrome Steel / Polyamide Cage

OD (D): 28.575mm
_{+0.000/-0.010}
Width (B): 6.350mm
_{+0.000/-0.125}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: TW

Alternatives: EE4-TN9, R8SD-T9H-C3, R8T9HC3

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for RC Nitro Engine Parts. Brands: Enya, Fox, K.B, McCoy, Merco, OPS. Models: 16 All Models, 2.49 All Models, 3.5 21CC All Models, 35 III, 36, 36X Old Combat, 40, 40 -40-11 New, 40 All Models, 40 Four Spline Prop Drive Washer - 78, 40 With Tapered Collect - 0.17, 40-11, 45 All Models, 49 -50 -61, 49 All Models, 4C - 46, 4C - 60, .

View full details
