Flanged Bushes - 12.7x15.875x9.525 mm - Bronze SAE 841 Sintered

BF0127-0159-0095-BS1924TT

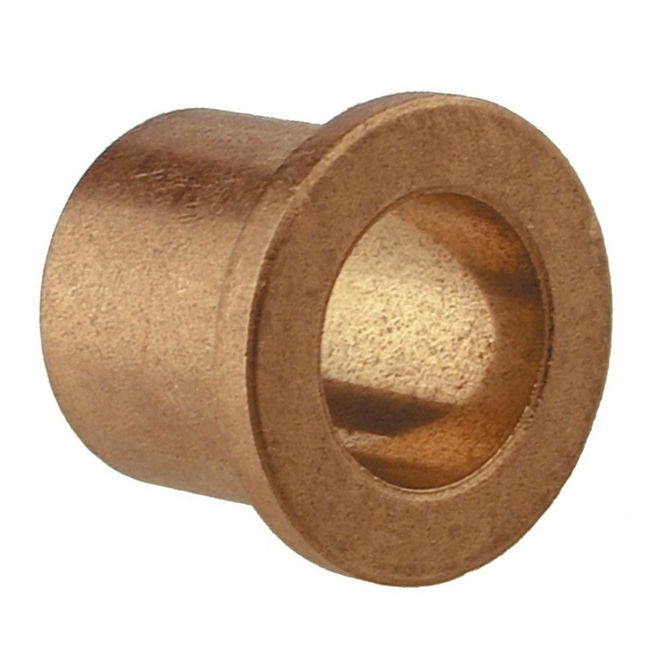

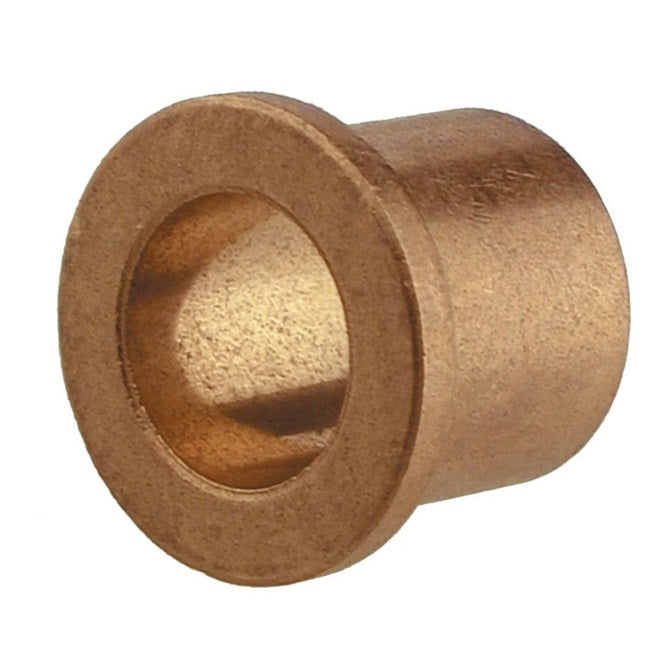

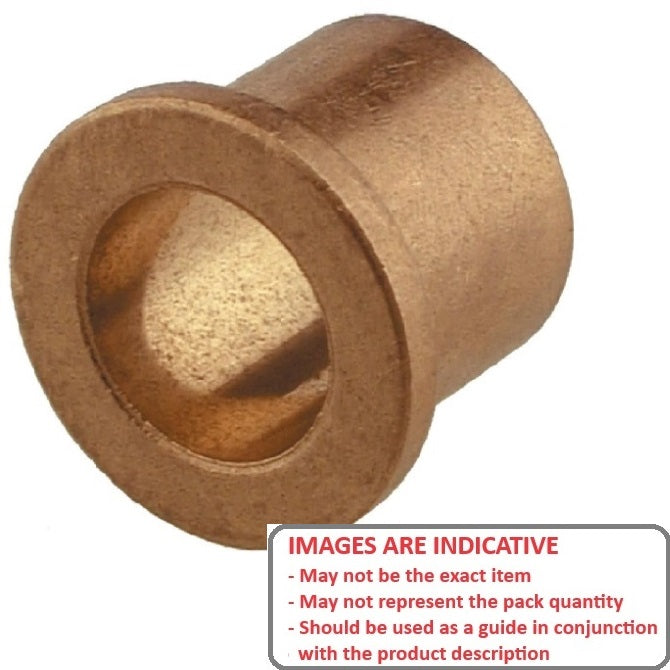

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged Bushes - 12.7x15.875x9.525 mm - Bronze SAE 841 Sintered
1 4

MBA

Additional resources:
Bushes PDF Catalogue
Price:
$13.50 AUD
$13.50 AUD
Each
Qty: 9 available now
Order 50 or more for $12.15 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 10, 2025

Base Category: Bushes - Flanged

Top Level Category: Bushes - Flanged - Bronze - Sintered

Product Details:

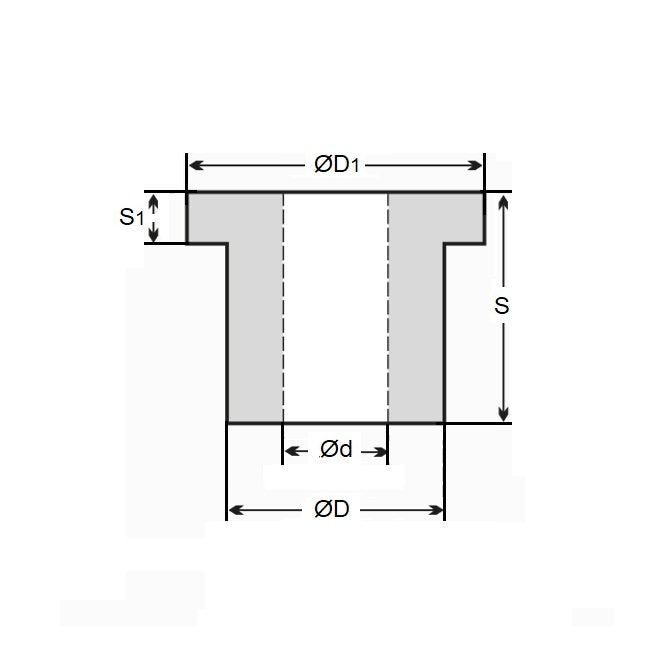

Nom. ID (d): 12.700mm
+ 0.025 / + 0.051
(12.700mm is 0.5 in.)

Bronze SAE 841 Sintered
  • Nom. OD (D): 15.875mm
    + 0.025 / + 0.051
    (15.875mm is 0.625 in.)
  • Length (s): 9.525mm
    +/- 0.127
    (9.525mm is 0.375 in.)
  • Flange OD (D1): 19.05mm
  • Flange Thickness (S1): 2.38mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: SF16206, SF-1620-6, BF012701590095BS1924, BF012701590095BSF1924, FF-636-2, FF636-2, FF6362, Oilite, Oilube, Symmco

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
