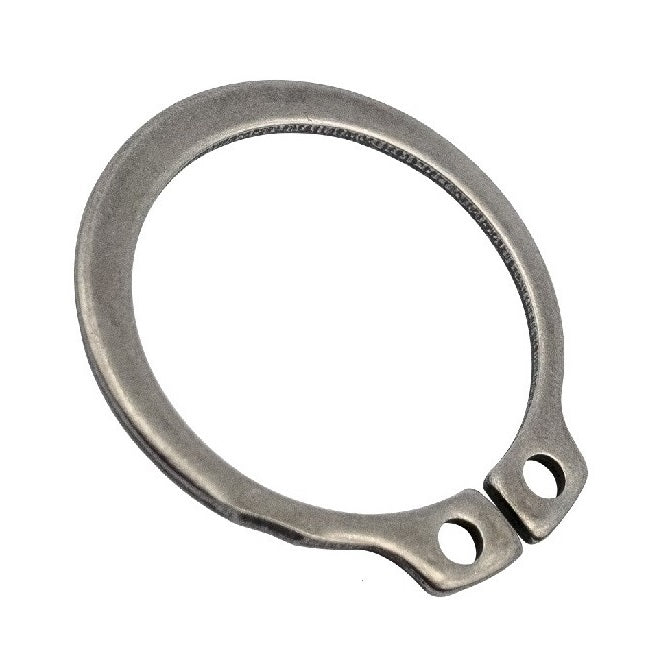

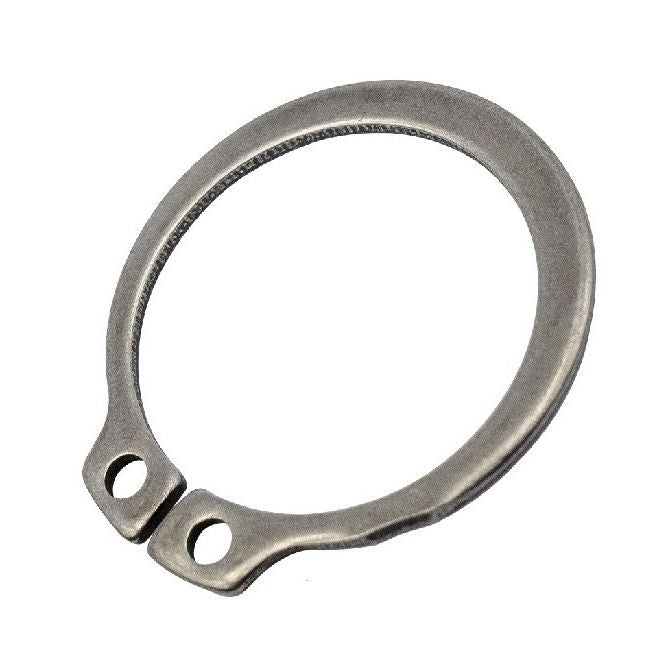

External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel Grade PH15-7 Mo

CCE-01270-S15 (2 Pcs)

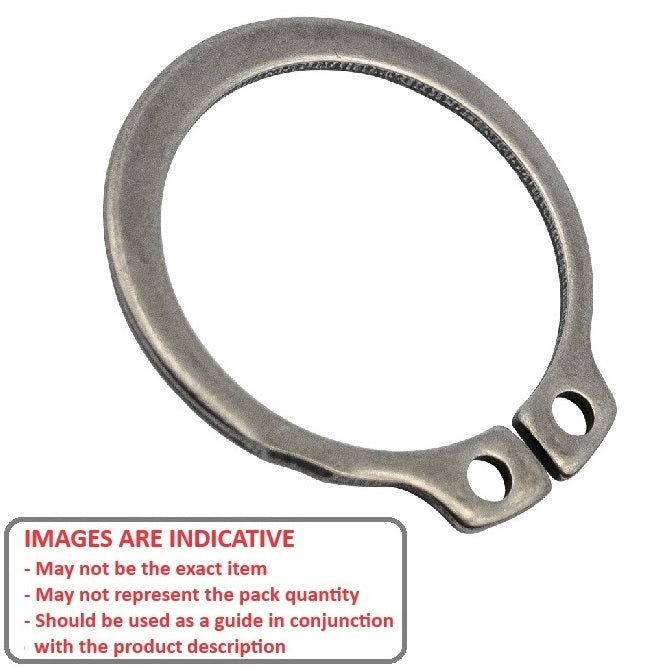

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel Grade PH15-7 Mo
1 4

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$5.86 AUD
$5.86 AUD
per 2
Qty: 7 available now (14 pcs)
Order 50 or more (100 pcs) for $5.27 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 17, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Stainless Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 18720

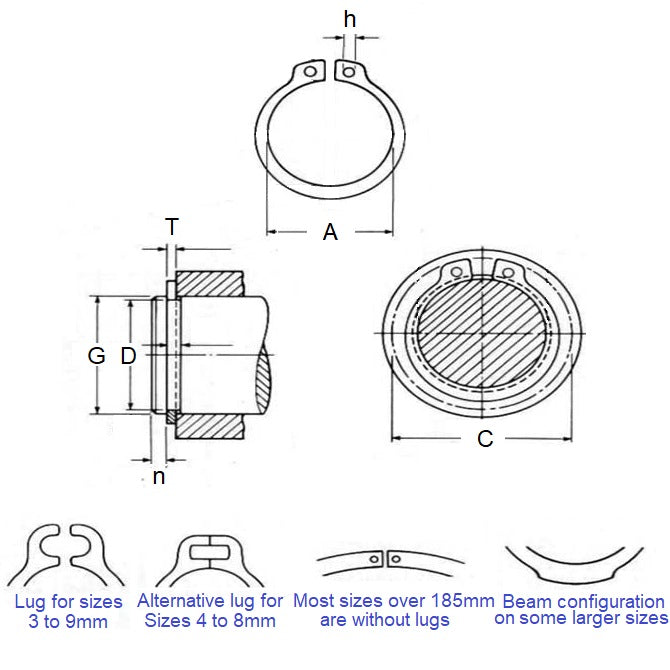

Shaft Diameter (Ds): 12.70mm
(12.70mm is 0.5 in.)

Stainless Steel Grade PH15-7 Mo
  • Clip Thickness (T): 0.89mm
    +/- 0.051
    (0.89mm is 0.035 in.)
  • Groove Dia. (Dg): 11.89mm
    +/- 0.051
    (11.89mm is 0.468 in.)
  • Approx. Loose Circlip ID (A): 11.71mm
  • Groove Width (W): 0.99mm
  • Clearance on Shaft (C1): 19.56mm
  • Clearance in Groove (C1): 18.80mm
  • Min. Lug Diameter (h): 1.14mm
  • Min. Extension (n): 1.30
  • Standard: MIL-16624

Brand: MBA
Country of Origin: US

Alternative Parts Include: N14000050KSF, N1400-0050KSF, 91590A122, REX8, REX-8, SH-050-SS, SH050SS, ALTPART, Small Parts, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
