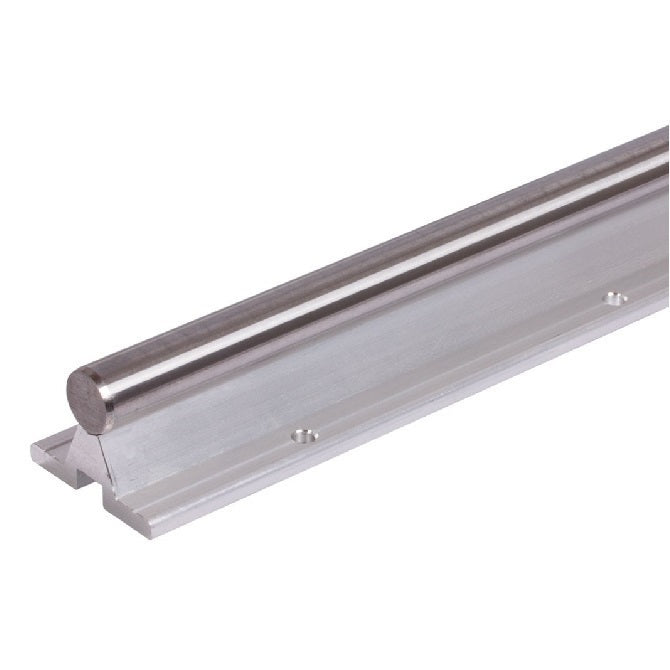

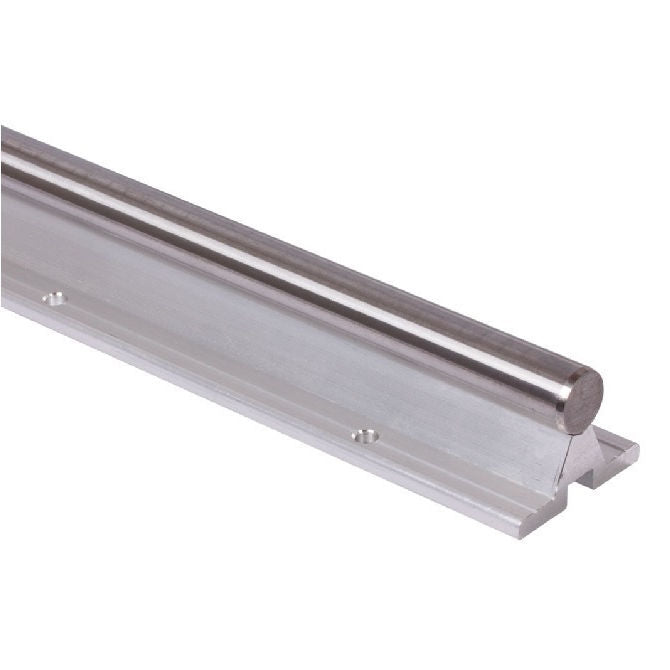

Rail Supports Linear - 12.7x28.58x609.6 mm With Shaft

TLM-1950RS (Each)

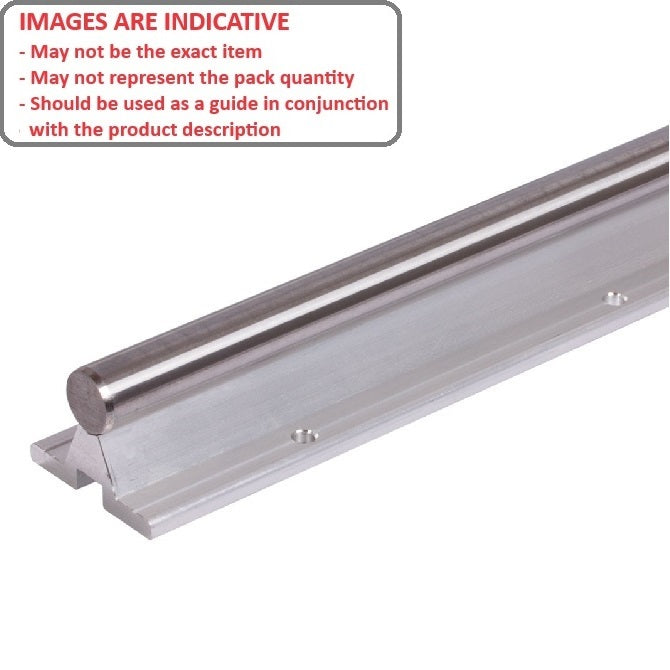

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Rail Supports Linear - 12.7x28.58x609.6 mm
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$752.77 AUD
$752.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $677.49 AUD Each
Backorder now! Backorders are expected before May 30, 2026

Base Category: Linear - Rail Supports

Top Level Category: Linear - Rail Supports - With Shaft - Standard

Product Details

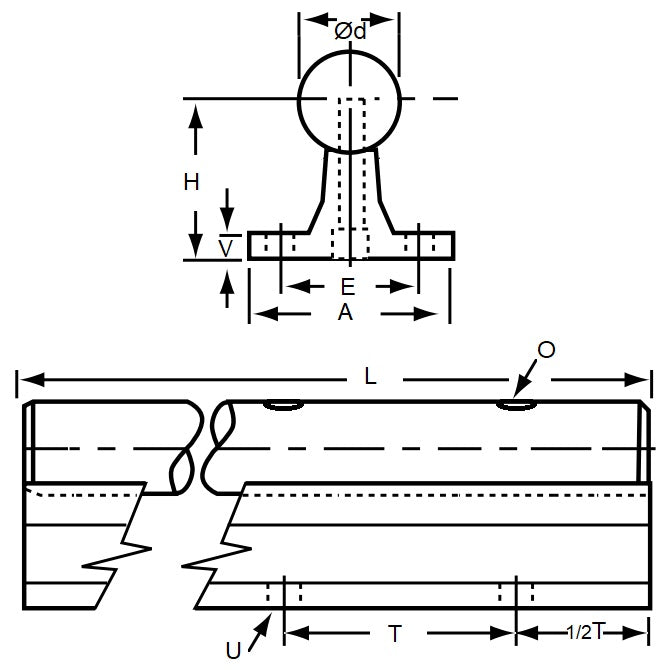

Suitable Shaft Size (d): 12.700mm
(12.700mm is 0.5 in.)
  • Suitable Shaft Size (d): 12.700mm
    (12.700mm is 0.5 in.)
  • Height to Shaft Centre (H): 28.58mm
    (28.58mm is 1.125 in.)
  • Length (+0/-1.59mm): 609.6mm
    (609.6mm is 24 in.)
  • Foot Height (V): 4.826mm
  • Base Width (A): 38.1mm
  • Support Angle (a): 20°
  • Hole Spacing (T): 101.6mm
  • Base Mtg. Hole (U): 4.318mm
  • Shaft Mtg. Hole (O): 4.318mm
  • Bolt Hole Centres (E): 25.4mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 59585K83

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
