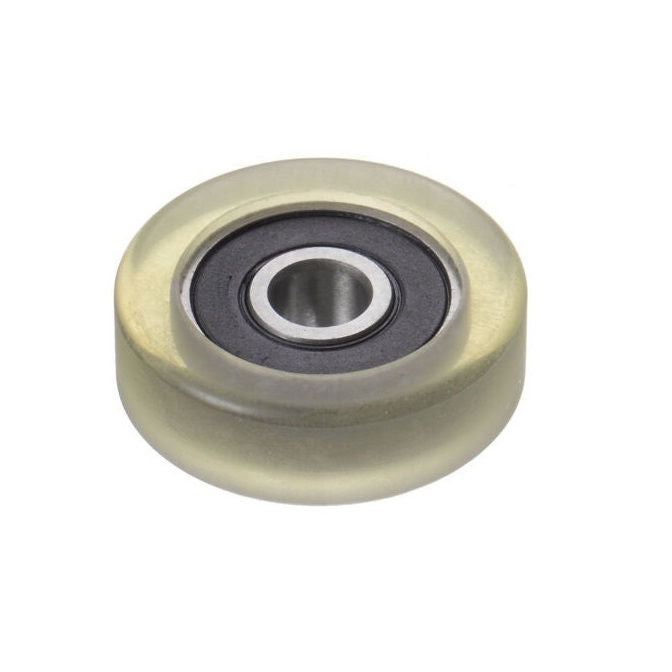

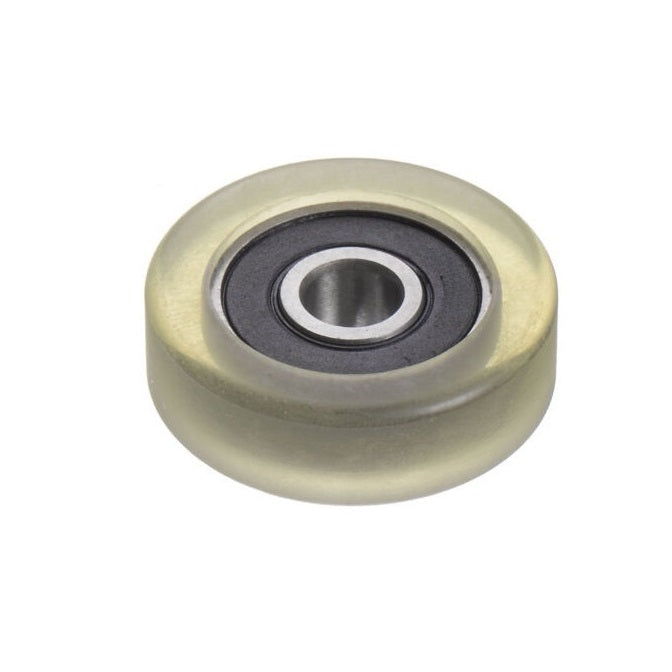

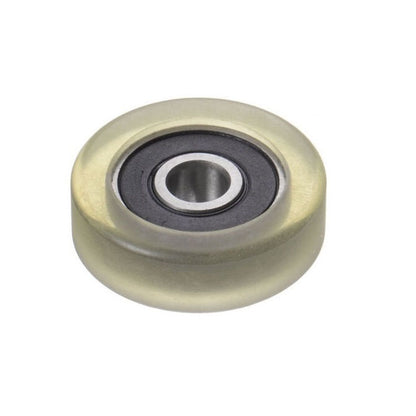

Pressure Roller with Bearing Rollers - 11x3x4 mm - Stainless Steel AISI 440C

PR-0110-030-ZZ-ET-90

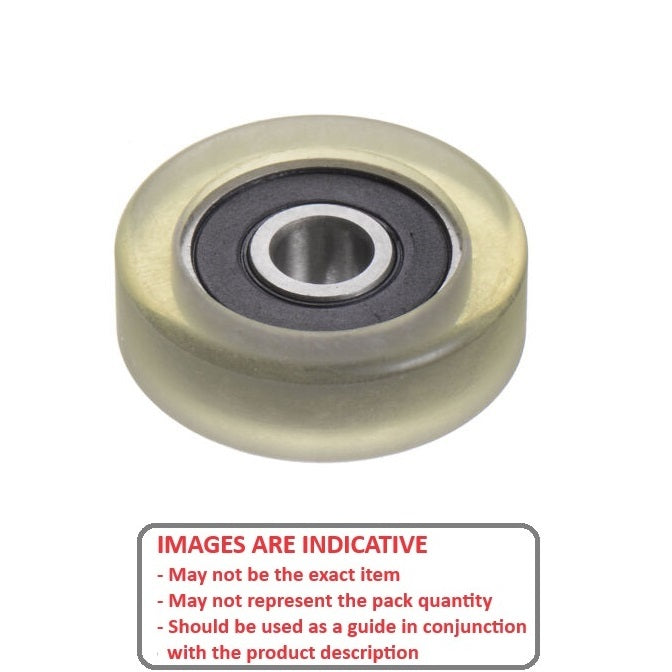

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Pressure Roller with Bearing Rollers - 11x3x4 mm - Stainless Steel AISI 440C
1 4

MBA

Additional resources:
Shafting
Price:
$11.14 AUD
$28.47 AUD $11.14 AUD
Each
Qty: 19 available now
Only 19 may be ordered online. If you need a large quantity, please contact us.

Base Category: Rollers - Pressure Roller with Bearing

Top Level Category: Rollers - Pressure Roller with Bearing - Urethane OD

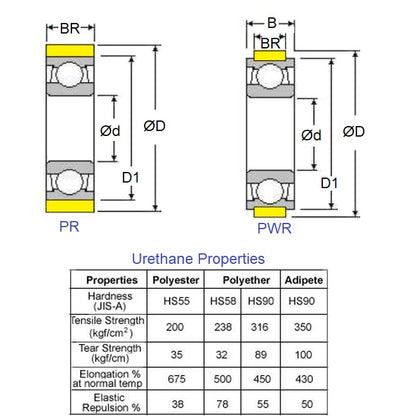

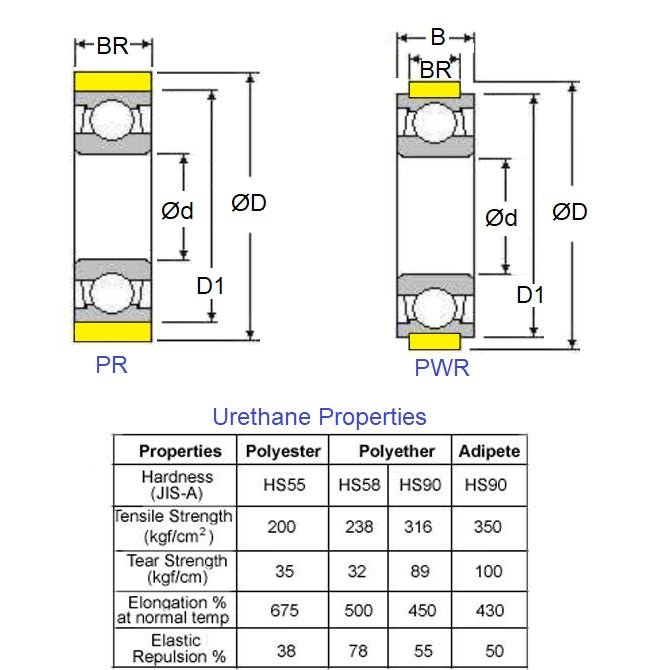

Product Details:

OD (D): 11.000mm
+/- 0.1
(11.000mm is 0.433 in.)

Stainless Steel AISI 440C
  • ID (d): 3.000mm
    (3.000mm is 0.118 in.)
  • Width (B): 4.000mm
    (4.000mm is 0.157 in.)
  • Roller Width (BR): 4.000mm
  • Bearing Outside Diameter (D1): 9.000mm
  • Roller Material: 90 Duro (JIS-A) Polyether Based Urethane - Natural
  • Closures: ZZ
  • Bearing Type: Pressure Roller

Brand: MBA
Country of Origin: JP

Alternative Parts Include: SS3-11RM-ZZ, SS311RMZZ, Origin

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
