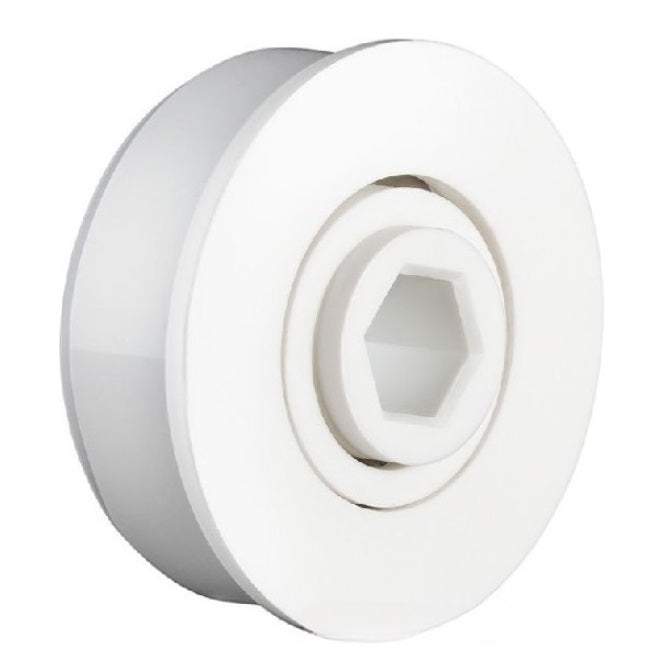

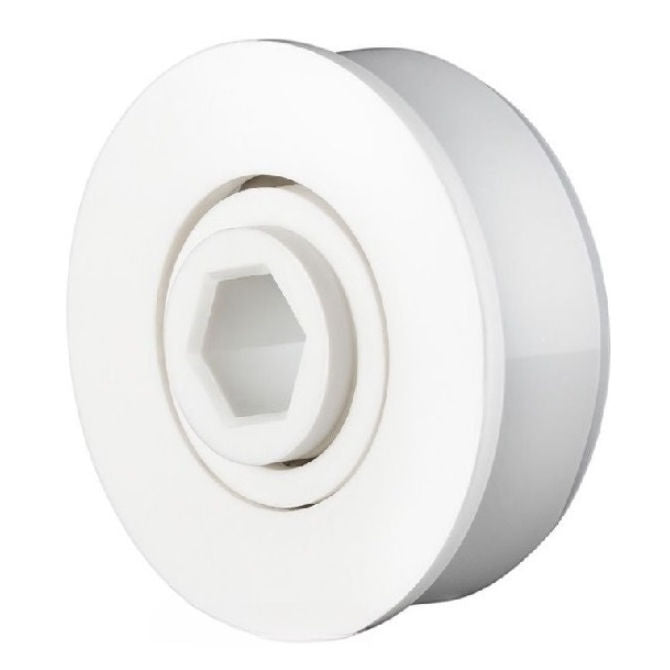

Conveyor Bearings - 11.11x57.4x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing

Name: 1101168 | CB-574-111H-18-PD (Pack of 10) --- Conveyor Bearings - 11.11x57.4x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing
Rating: 5.0 (1 reviews)

CB-574-111H-18-PD (Pack of 10)

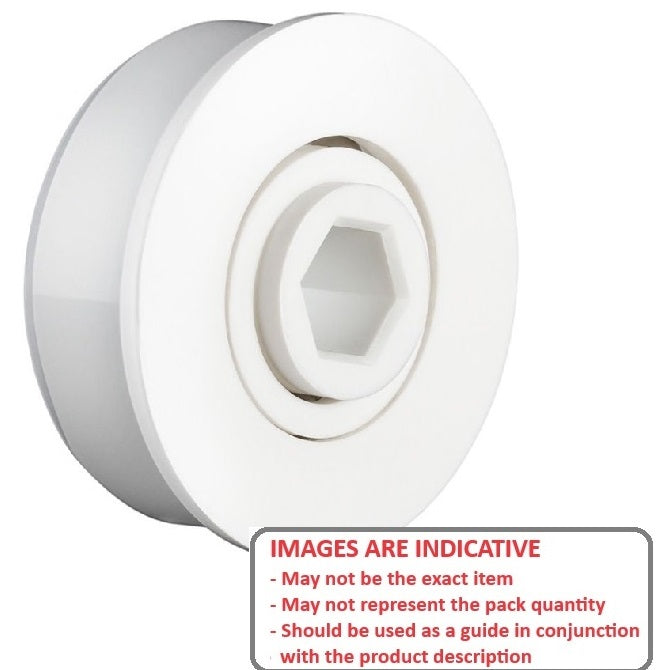

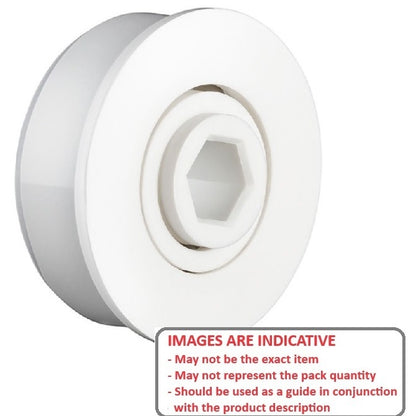

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store Name: Small Parts & Bearings

Category: Bearings - Conveyor - Double Row - Hex Bore Plastic

Price:

$308.23 AUD

Priced, Stocked and Sold Per pack of 10

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 10 (500 pcs)
for $277.41 AUD per 10 pack

Product Details

Hex Bore (A): 11.11mm
_{+ 0.30 / - 0.00}
_{(11.11mm is 0.437 in.)}

Polypropylene Races with Stainless Steel 316 Balls

Hex Bore (A): 11.11mm
_{+ 0.30 / - 0.00}
_{(11.11mm is 0.437 in.)}
O.D. (B): 57.40mm
_{+/- 0.080}
_{(57.40mm is 2.26 in.)}
Width (C): 17.78mm
_{(17.78mm is 0.7 in.)}
Width (D): 23.62mm
Flange Dia. (E): 60.20mm
Flange Width (F): 2.54mm
Max Speed Unloaded: 672RPM
Dynamic Load: 45Kg
Static Load: 37Kg

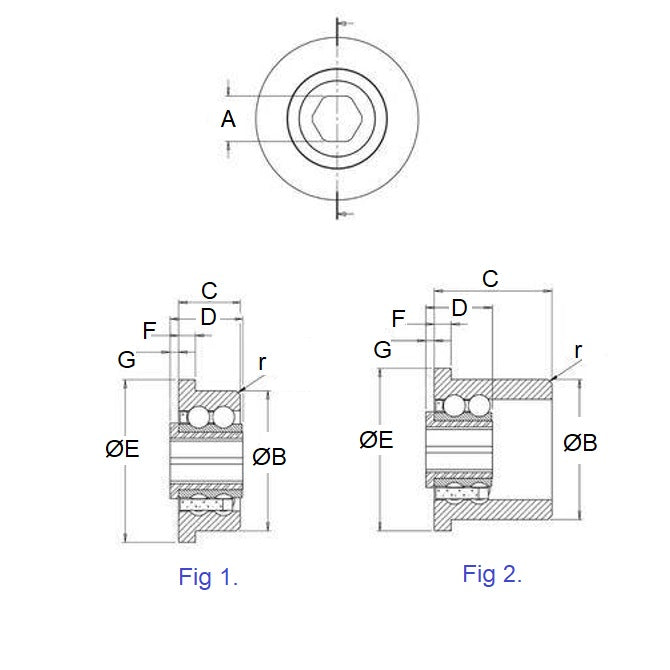

Figure: Fig 1

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

KMS CB437-2.26DR
KMS CB437-2.26DR-6
CB437226DR
CB437226DR6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CB574111H18PD, CB574111H
