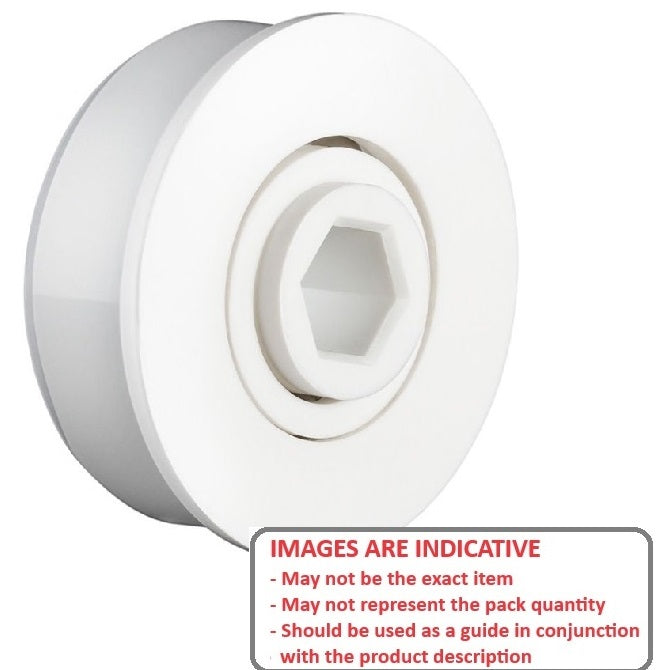

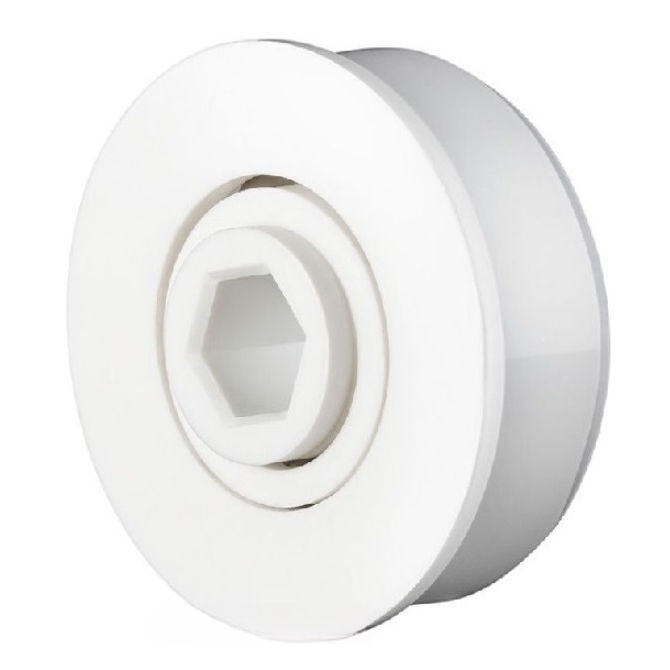

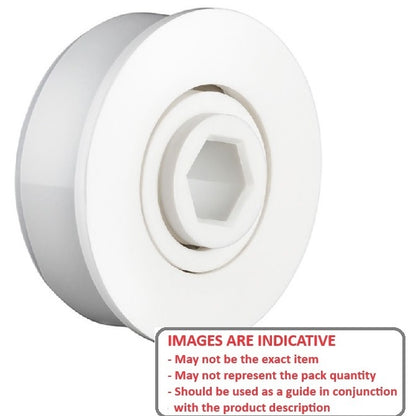

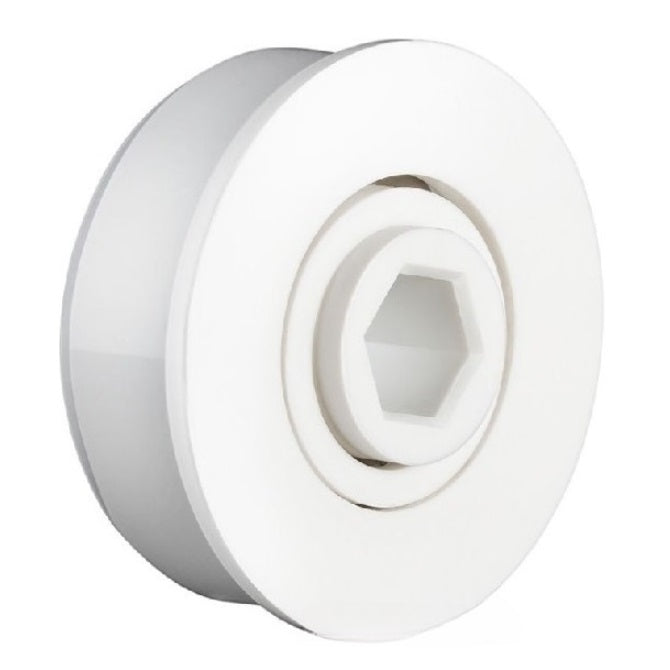

Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm - Polypropylene Races with Stainless Steel 316 Balls

CB-381-111H-18L-PS

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm - Polypropylene Races with Stainless Steel 316 Balls
1 4

KMS

Price:
$15.23 AUD
$15.23 AUD
Each
Qty: 1 available now
Order 50 or more for $13.71 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 04, 2025

Base Category: Bearings - Conveyor

Top Level Category: Bearings - Conveyor - Single Row - Hex Bore Plastic

Product Details:

Hex Bore (A): 11.11mm
+ 0.30 / - 0.00
(11.11mm is 0.437 in.)

Polypropylene Races with Stainless Steel 316 Balls
  • OD (B): 38.10mm
    +/- 0.080
    (38.10mm is 1.5 in.)
  • Width (C): 17.78mm
    (17.78mm is 0.7 in.)
  • Width (D): 23.62mm
  • Flange Dia. (E): 39.62mm
  • Flange Width (F): 2.54mm
  • Max Speed Unloaded: 1069RPM
  • Dynamic Load: 30Kg
  • Static Load: 20Kg

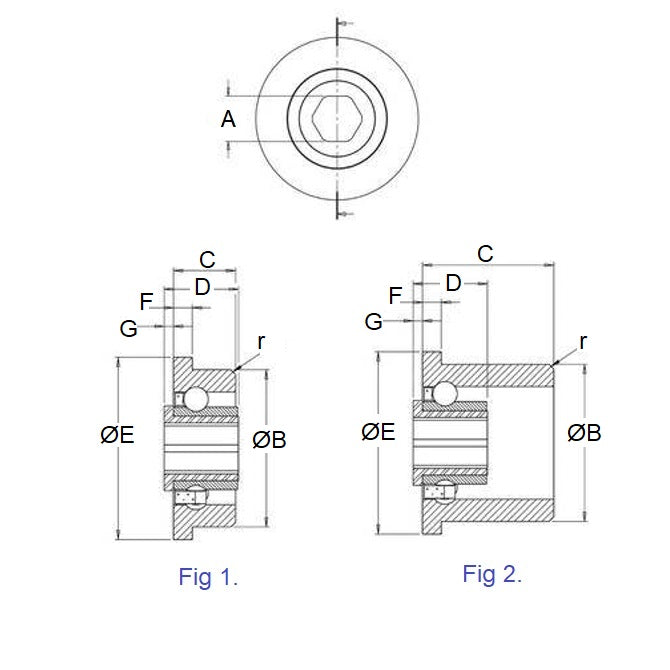

  • Figure: Fig 1

Brand: KMS
Country of Origin: US

Alternative Parts Include: CB43715LSR6, CB437-1.5LSR-6, KMS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
