Spring Washers - 10x16x1.02 mm Wave - Stainless Steel 302/304 Similar to A2, 18-8 Washer

W0100-T-016-010-W3-S2 (Pack of 2)

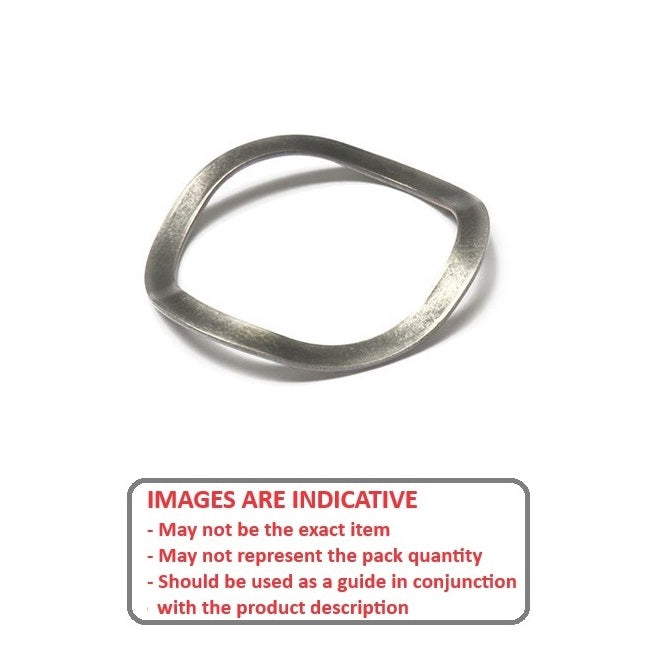

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 10x16x1.02 mm - Stainless Steel 302/304 Similar to A2, 18-8
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Assortment Kits
Screws
Price:
$2.50 AUD
$2.50 AUD
Priced, Stocked and Sold Per pack of 2
Excludes GST and overseas Taxes & Duties
 Qty: 275 packs (550 pcs) available now

Order 50 or more packs of 2 (100 pcs)
for $2.25 AUD per 2 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 16, 2026

10x16x1.02 mm Spring Washers - Stainless Steel 302/304 (Similar to A2, 18-8) - Sold Per 2:

Base Category: Washers - Spring

Top Level Category: Washers - Spring - Wave - 302 Stainless Steel

Product Details


Additional stock available from USA subject to Prior Sale = 12052

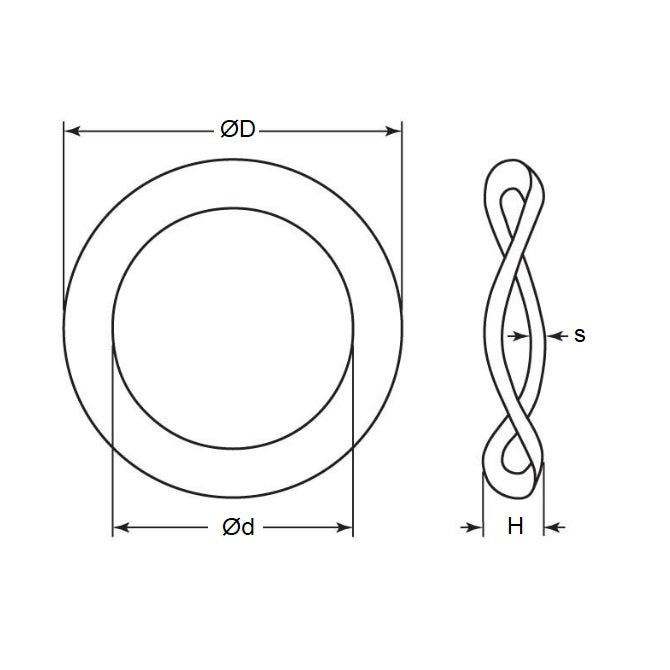

Nominal Inside Diameter (d): 10.00mm
+ 0.50 / + 1.20
(10.00mm is 0.394 in.)

Stainless Steel 302/304 (Similar to A2, 18-8)
  • Nominal Inside Diameter (d): 10.00mm
    + 0.50 / + 1.20
    (10.00mm is 0.394 in.)
  • Nominal Outside Diameter (D): 16.00mm
    - 0.10 / - 0.30
    (16.00mm is 0.63 in.)
  • Nom. Height (H): 1.02mm
    (1.02mm is 0.04 in.)
  • Thickness (s): 0.20mm
  • Info: Suits OD of 625, and 634 Bearings
  • Type: 3 Wave
  • Nominal Screw Size: M10, 3/8
  • Actual ID (Ref): 11.2mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Huyett® WW3-0618-008-SS
  • NoCor® WW3-0618-008-SS
  • WW30618008SS
  • A7X9-3W06108
  • A7X93W06108

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0100T016010W3S2, W0100T016
