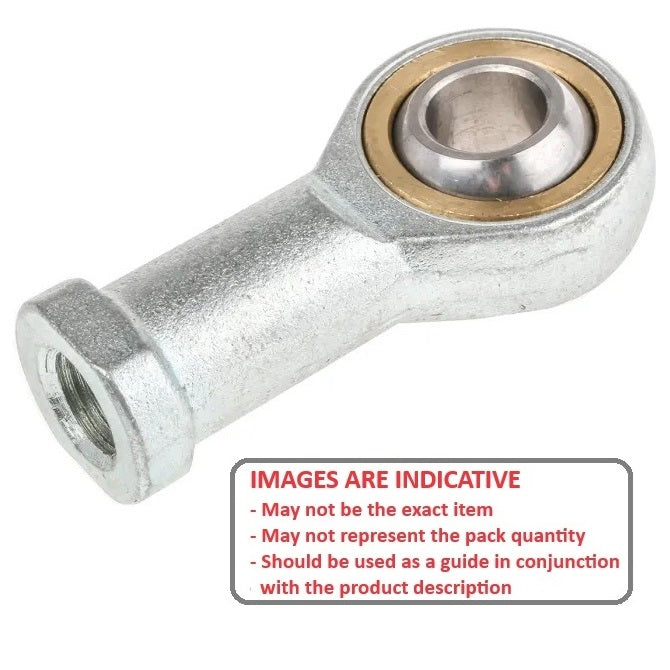

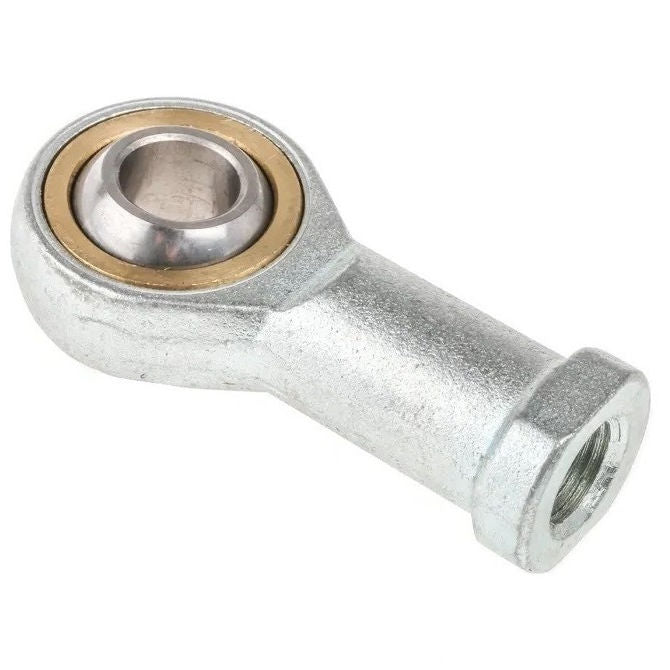

Female Rod Ends - 10x56 mm - M10x1.5 Left - Bronze Lined Steel Rod End

REF-100-L-CB (Pack of 10)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

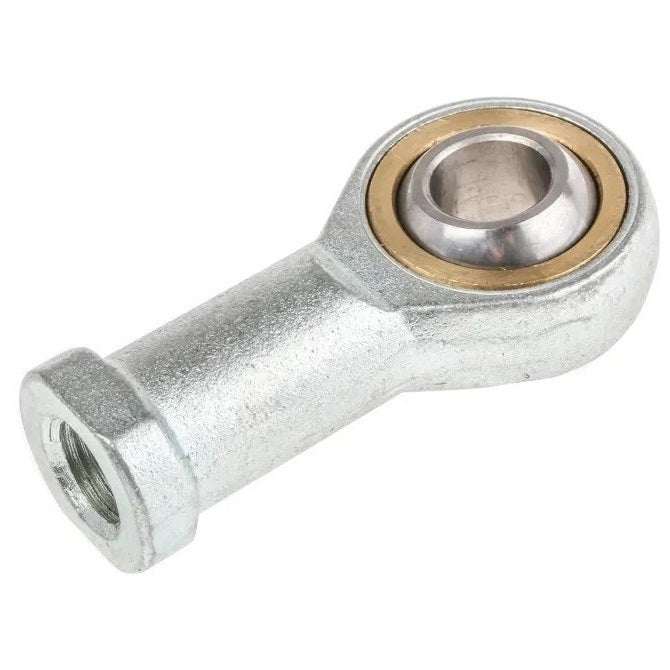

  • Female Rod Ends - 10x56 mm - M10x1.5 Left - Bronze Lined Steel
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$123.05 AUD
$123.05 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more packs of 10 (500 pcs)
for $110.75 AUD per 10 pack
Backorder now! Backorders are expected before Nov 12, 2026

10x56 mm - M10x1.5 Left Female Rod Ends - Bronze Lined Steel - Sold Per 10:

Base Category: Rod Ends - Female

Top Level Category: Rod Ends - Female - Steel - Plain - Bronze Lined

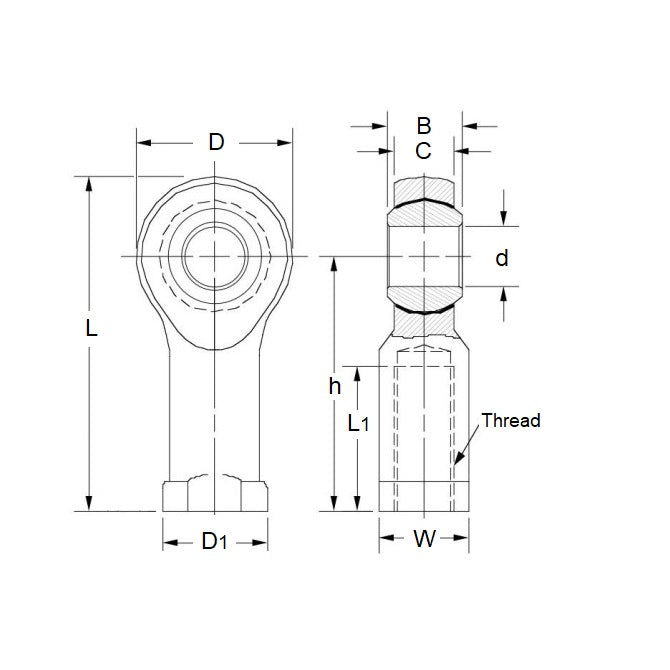

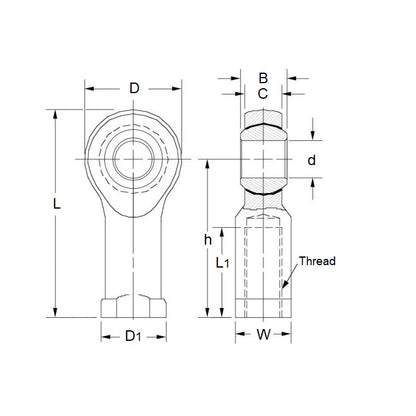

Product Details

Eye Size (d1): 10mm
(10mm is 0.394 in.)

Bronze Lined Steel
  • Eye Size (d1): 10mm
    (10mm is 0.394 in.)
  • Overall Length (L): 56.00mm
    (56.00mm is 2.205 in.)
  • Thread Size (T): M10x1.5 Left
  • Thread Length (l2): 21.00mm
  • Head Width (W): 10.50mm
  • Eye Width (W1): 14.00mm
  • Head Diameter (D): 26.00mm
  • Centre Height (l1): 43.00mm
  • Grease Nipple: Yes
  • Body Width/Flange Width(W2/D3): 17.00 / 19.00mm

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • RINO® BEF-10-LH
  • MTR BNF10-L
  • Misumi® E-GYNL10
  • IKO PHS10L
  • EGYNL10
  • BNF10L
  • BEF10LH

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REF100LCB, REF100
