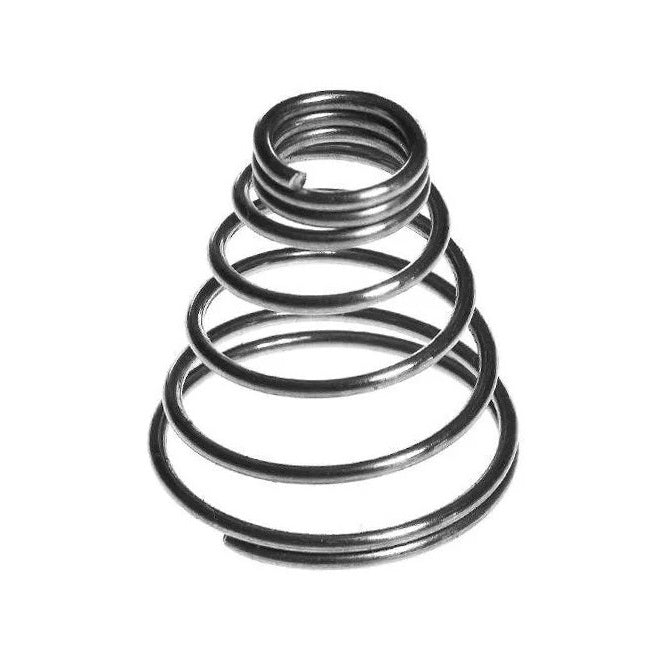

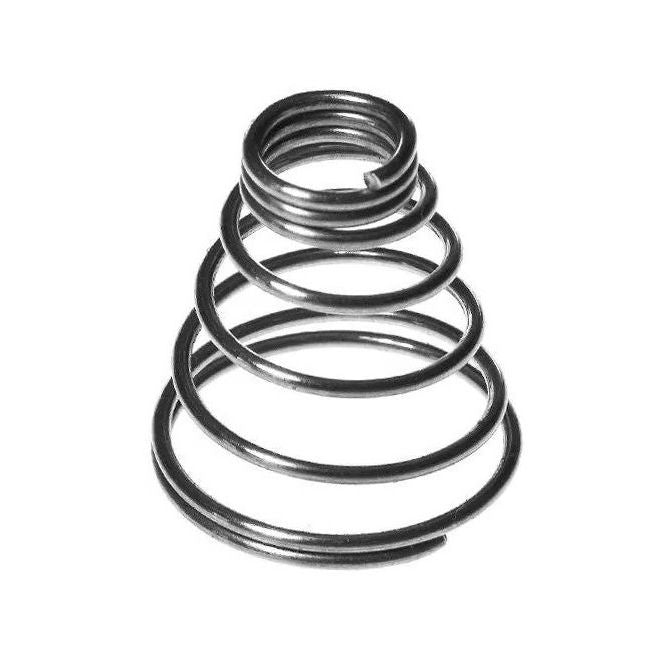

Conical Springs - 10.3x19.1x7.5 mm - Carbon Spring Steel Music Wire

CSC-103-019-07-M

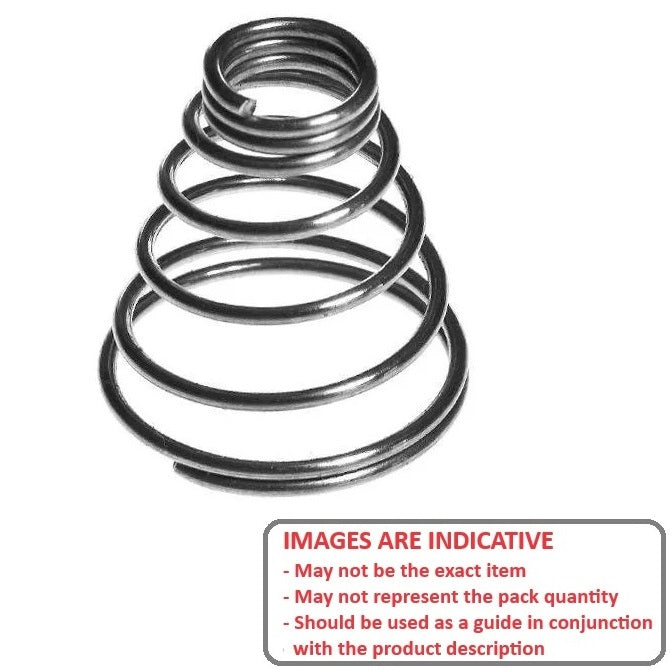

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Conical Springs - 10.3x19.1x7.5 mm - Spring Steel Music Wire
1 4

MBA

Store Name: Small Parts & Bearings

Category: Springs - Conical
Additional resources:
Spings Catalogue PDF
Price:
$6.50 AUD
$6.50 AUD
Each
Qty: 7 available now
Order 50 or more for $5.85 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 08, 2025

Base Category: Springs - Conical

Top Level Category: Springs - Conical

Product Details:

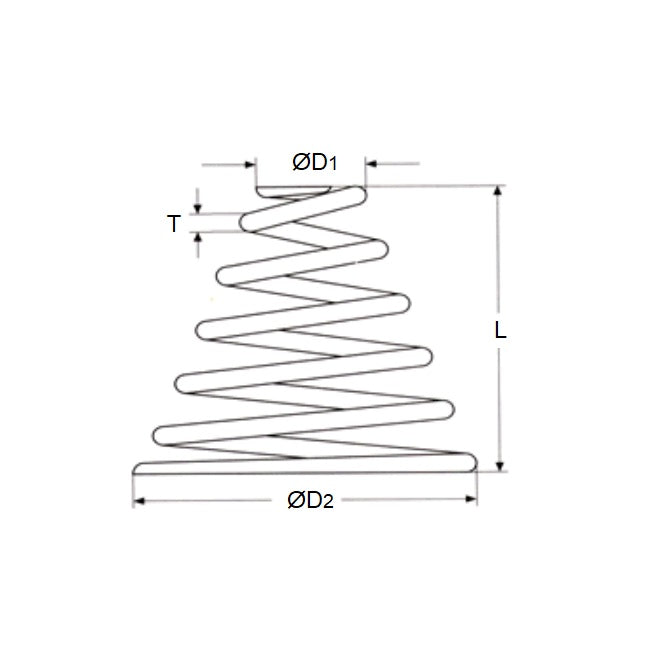

Large End OD: 10.30mm
(10.30mm is 0.406 in.)

Carbon Spring Steel Music Wire
  • Free Length: 19.1mm
    (19.1mm is 0.752 in.)
  • Small End OD: 7.5mm
    (7.5mm is 0.295 in.)
  • Inside Diameter Clearance: 6.1mm
  • Wire Thickness: 0.71mm
  • Rate: 0.0kg/mm
  • Inside Diameter: 6.1mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

  • CX16
  • CX-16

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
