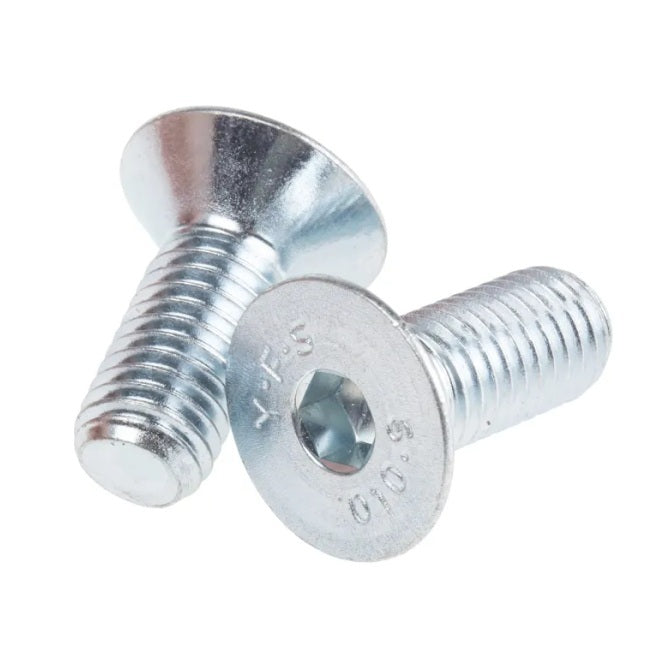

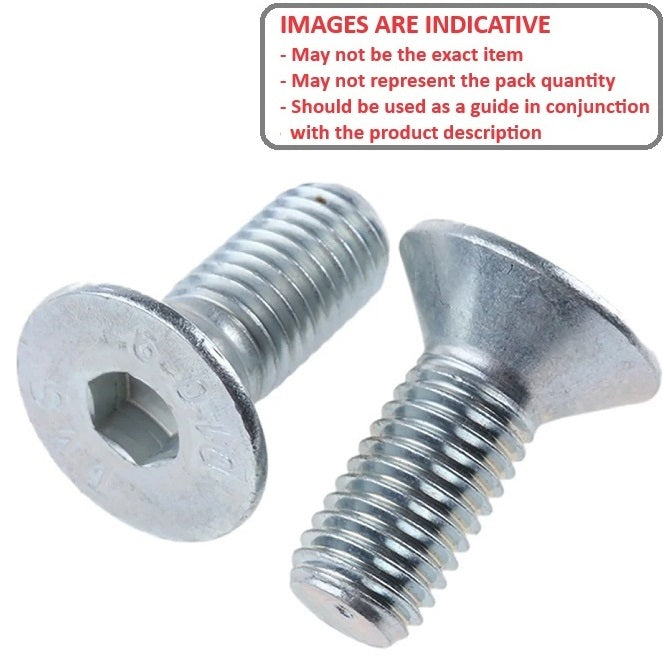

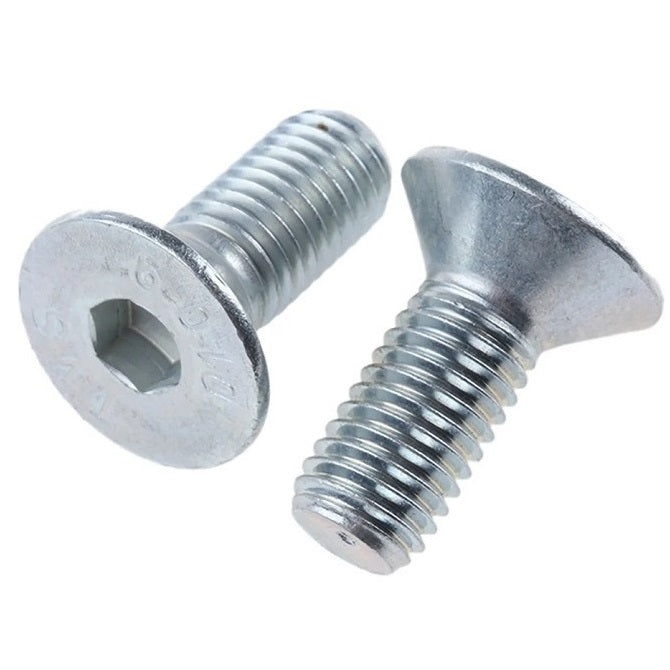

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

SK048F-010-SK-CZ (50 Pcs)
Countersunk Screws - 10-32 UNF (4.76mm) x 9.5 mm

MBA

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$33.68 AUD
$33.68 AUD
per 50
Out Of Stock
Order 50 or more (2500 pcs) for $30.31 AUD per 50
Pre-Order now! Backorders for more than the stock quantity are expected before Apr 30, 2025

Base Category: Screws - Countersunk

Top Level Category: Screws - Countersunk - Socket - Steel - Zinc Plated

Product Details:

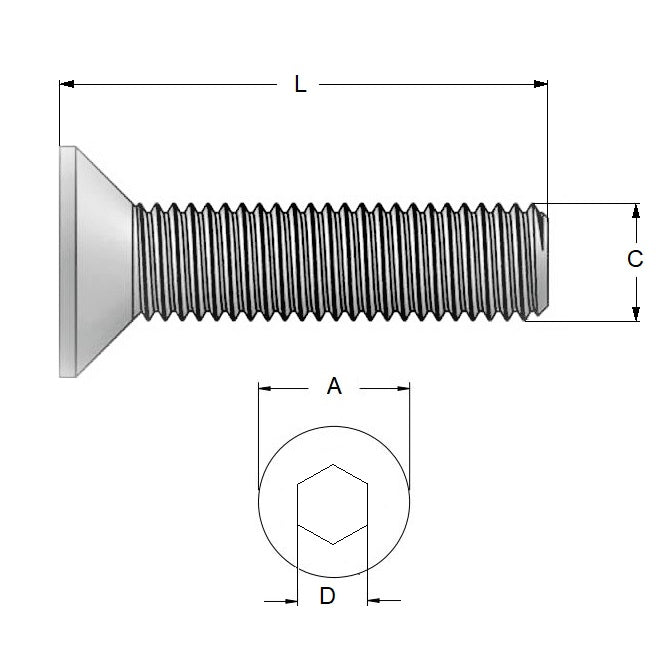

Thread Size (C): 10-32 UNF (4.76mm)
  • Overall Length (L): 9.5mm
    + 0.0 / - 0.76
  • Material: Zinc Plated Steel
  • Max Head Diameter: 10.4mm
  • Max Head Height: 3.2mm
  • Minimum Thread Length (l): Not Specifiedmm
  • Hex Key (s): 3.18 (1/8)mm
  • Countersunk Angle: 82°
  • Pitch: 0.794mm
  • Threads Per Inch: 32TPI

Brand: MBA
Country of Origin: TW

Alternatives: 875075, 91263A542

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
