Countersunk Screws - 10-32 UNF - 4.76mm - 44.5 mm - High Tensile Steel / Black Oxide Socket

SK048F-045-SK-C (10 Pcs)

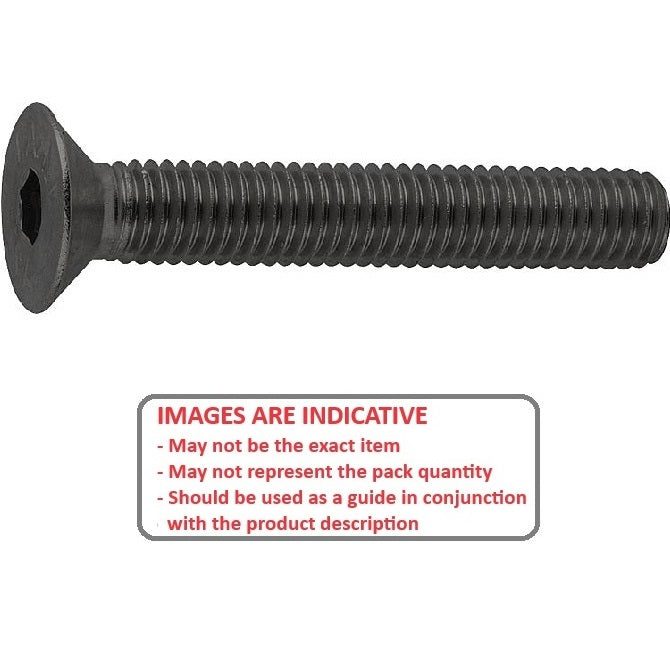

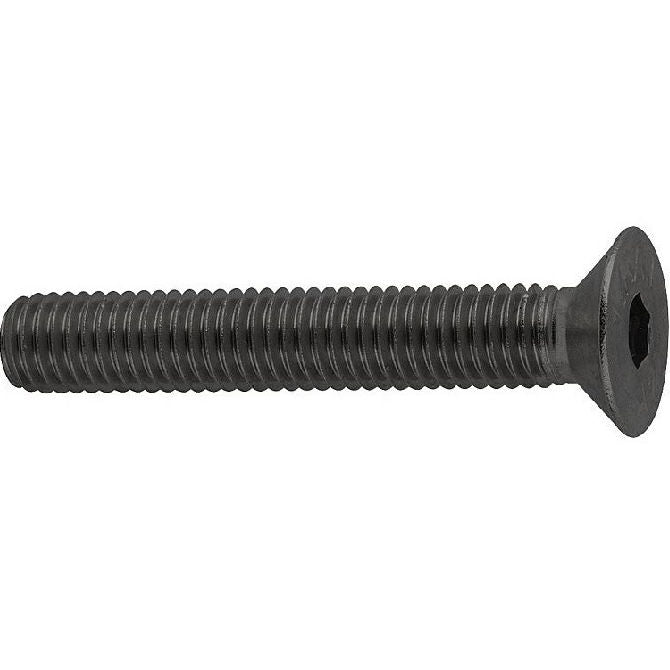

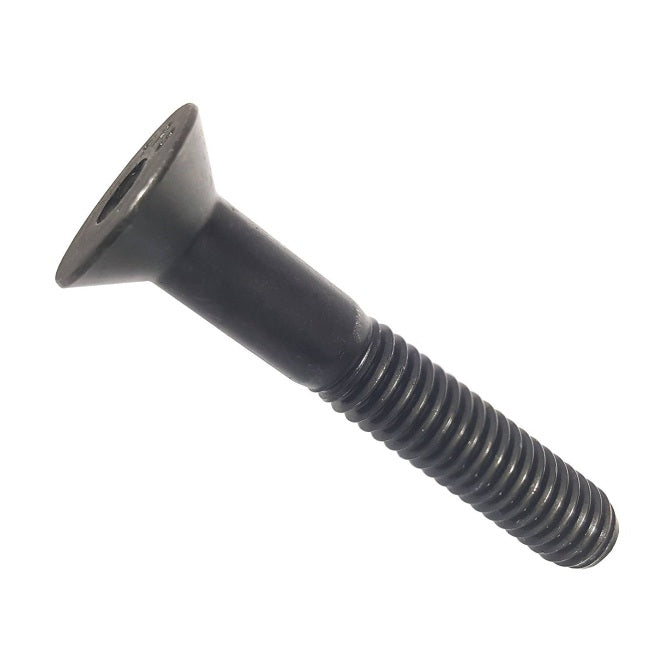

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Countersunk Screws - 10-32 UNF - 4.76mm - 44.5 mm - High Tensile Steel / Black Oxide Socket
1 4

Brighton Best

Store Name: Small Parts & Bearings

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$2.89 AUD
$14.68 AUD $2.89 AUD
per 10
Qty: 8 packs (80 pcs) available now
Only 8 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Screws - Countersunk

Top Level Category: Screws - Countersunk - Socket - Steel - Standard

Product Details:

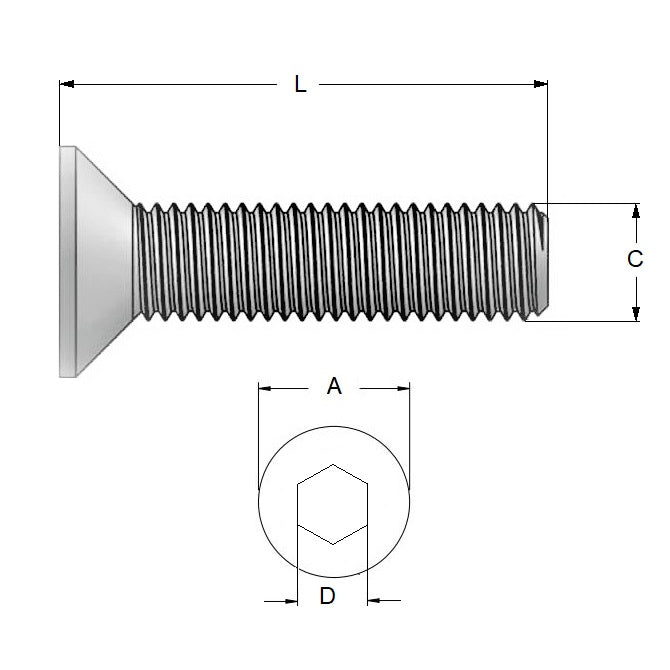

Thread Size (C): 10-32 UNF (4.76mm)

High Tensile Steel Black Oxide
  • Overall Length (L): 44.5mm
    + 0.0 / - 1.02
    (44.5mm is 1.752 in.)
  • Material: High Tensile Steel / Black Oxide
  • Max Head Diameter: 10.4mm
  • Max Head Height: 3.2mm
  • Minimum Thread Length (l): Not Specifiedmm
  • Hex Key (s): 3.18 (1/8)mm
  • Countersunk Angle: 82°
  • Pitch: 0.794mm
  • Threads Per Inch: 32TPI

Brand: Brighton Best
Country of Origin: TW

Product Compliance and Data

Alternative Parts Include:

  • Brighton Best 721132
  • ALTPART 91253A016

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
