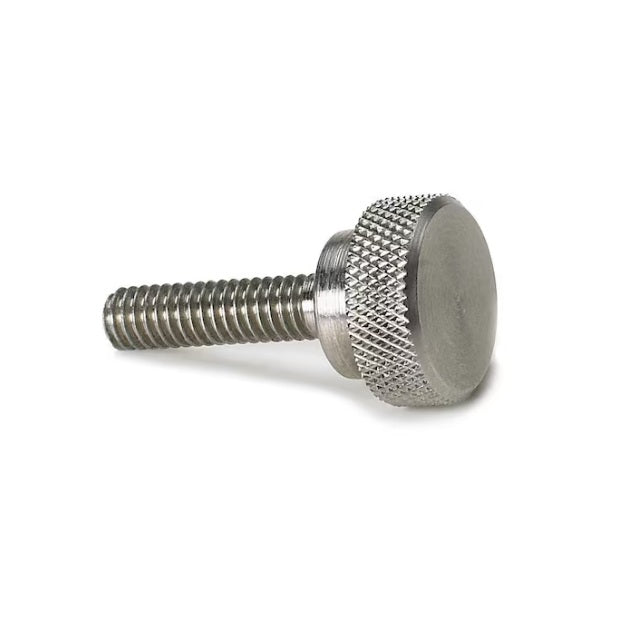

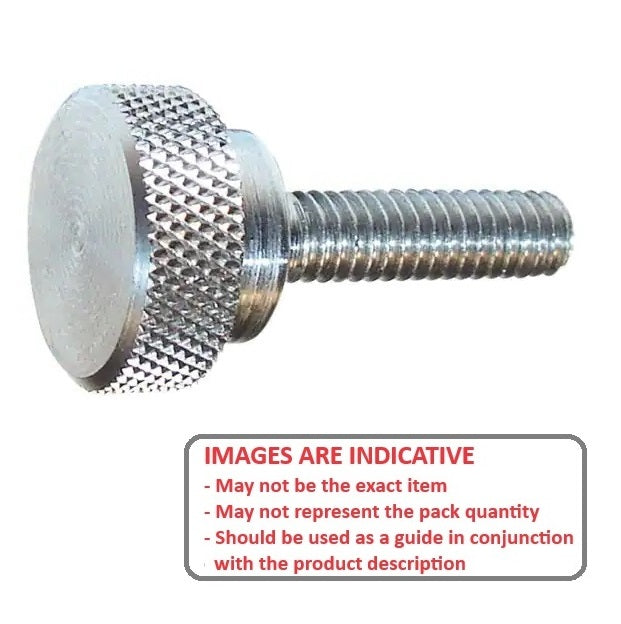

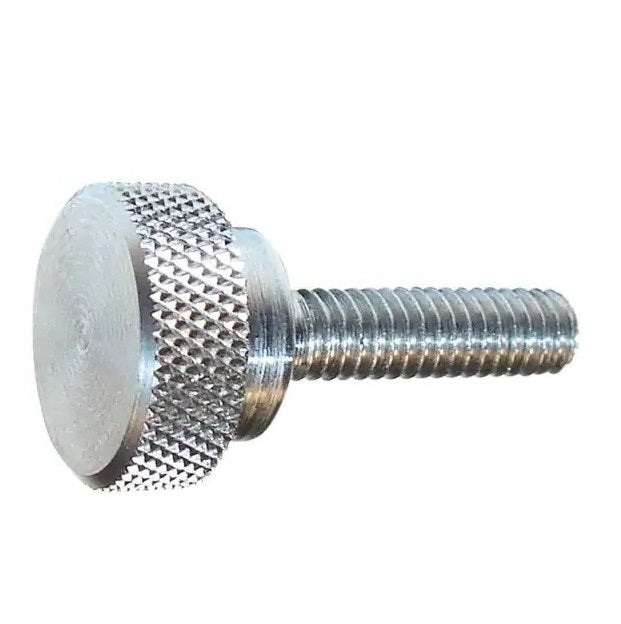

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

THS048F-022-K-3-SHL
Thumb Screws - 10-32 UNF (4.76mm) x 14.29 mm x 22.23 mm

MBA

Additional resources:
Thumb Screws and Nuts PDF Quick Guide
PDF Screws Catalogue
Nuts
Price:
$18.77 AUD
$18.77 AUD
Each
Out Of Stock
Order 50 or more for $16.89 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Apr 03, 2025

Base Category: Screws - Thumb

Top Level Category: Screws - Thumb - Shoulder

Product Details:

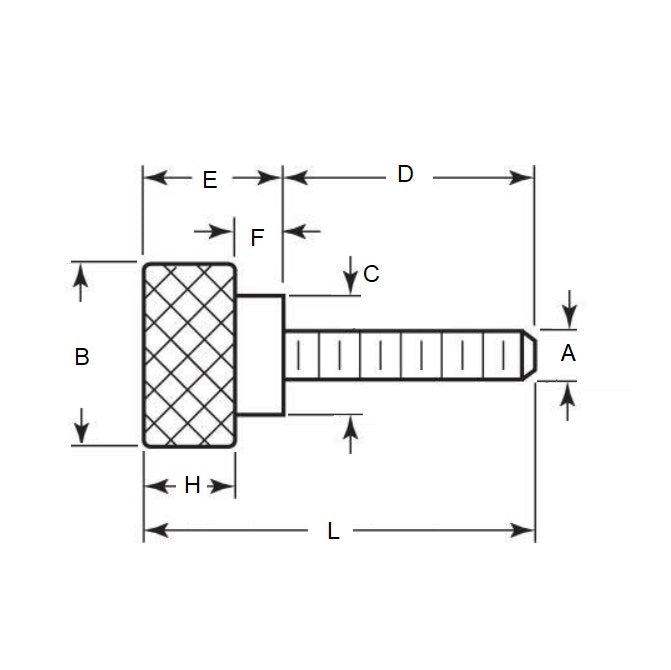

Thread Size (A): 10-32 UNF (4.76mm)
Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Thread Length (D): 14.29mm
  • Overall Length (L): 22.23mm
  • Head Diameter (B): 12.70mm
  • Shoulder Diameter (C): 9.53
  • Shoulder Length (F): 2.38
  • Head Height incl Shoulder (E): 7.94mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: 91830A405, KTS-4405

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
