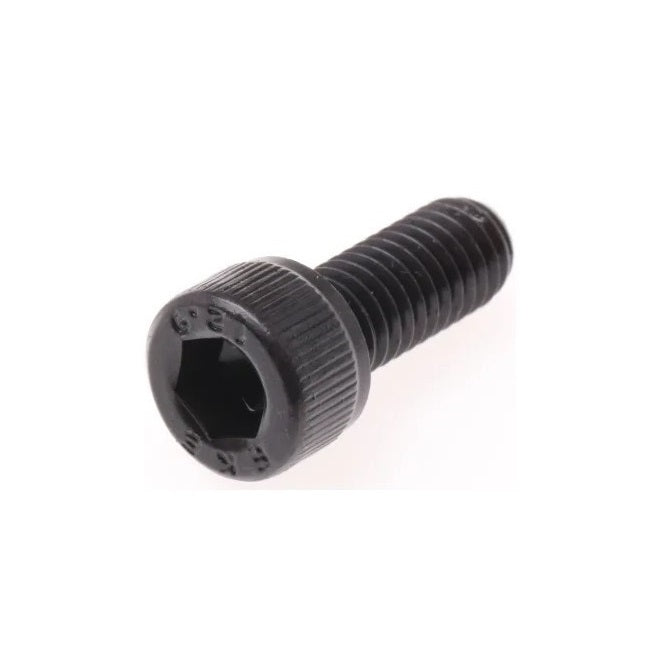

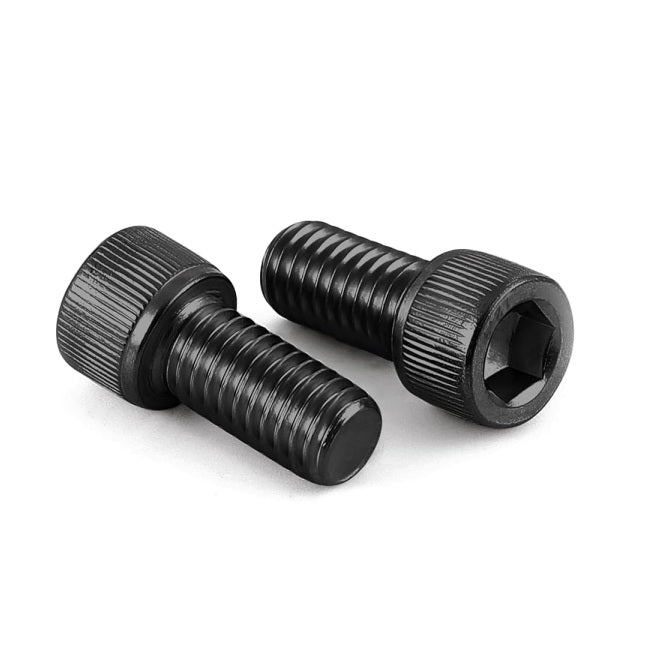

Socket Cap Screws - 10-24 UNC - 4.76mm - 6.4 mm - High Tensile Steel / Black Oxide Alloy Steel

SC048C-006-C-SK-C (10 Pcs)

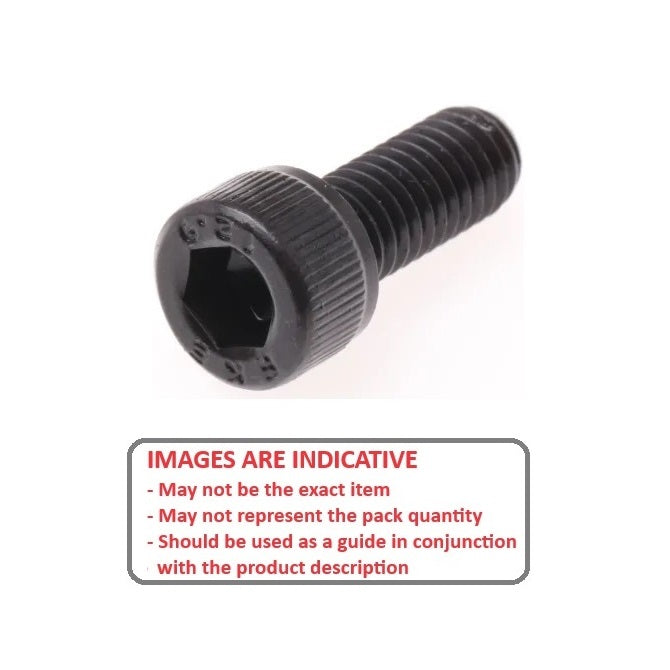

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Socket Cap Screws - 10-24 UNC - 4.76mm - 6.4 mm - High Tensile Steel / Black Oxide Alloy Steel
1 4

Brighton Best

Store Name: Small Parts & Bearings

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$2.05 AUD
$3.74 AUD $2.05 AUD
per 10
Qty: 10 packs (100 pcs) available now
Order 50 or more packs (500 pcs) for $1.85 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 30, 2025

Base Category: Screws - Socket Cap

Top Level Category: Screws - Socket Cap - Alloy Steel - Black Oxide

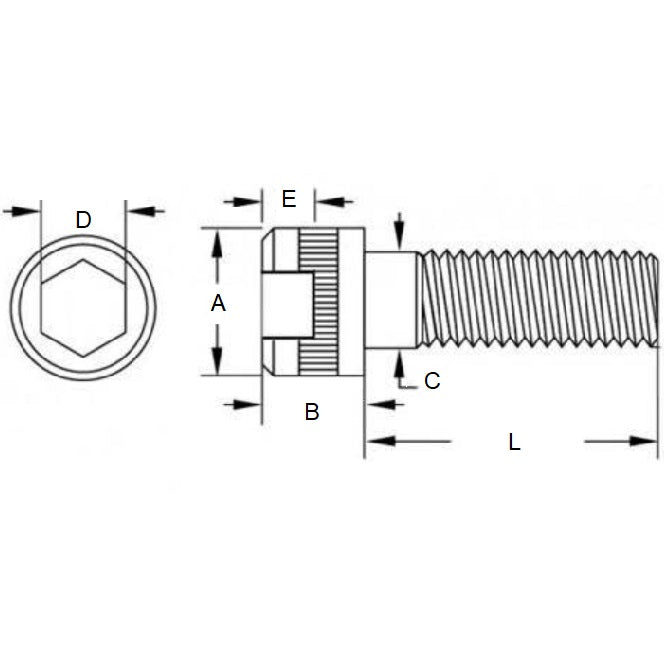

Product Details:

Thread Size (C): 10-24 UNC (4.76mm)

High Tensile Steel Black Oxide
  • Thread Length (L): 6.4mm
    (6.4mm is 0.252 in.)
  • Material: High Tensile Steel / Black Oxide
  • Head Length (B Max.): 4.8mm
  • Head Diameter (A Max.): 7.9mm
  • Drive Depth (E): 2.29mm
  • Shank Diameter (C): 4.67 - 4.83mm
  • Hex Key (D): 3.97 (5/32)mm
  • Pitch: 1.058mm
  • Threads Per Inch: 24TPI
  • Min thread Length: 6.4mm

Brand: Brighton Best
Country of Origin: TW

Product Compliance and Data

Alternative Parts Include:

  • Brighton Best 581283
  • ALTPART 91251A083

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
