Socket Cap Screws - 10-24 UNC - 4.76mm - 31.8 mm - Zinc Plated Steel

SC048C-032-C-SK-CZ (50 Pcs)

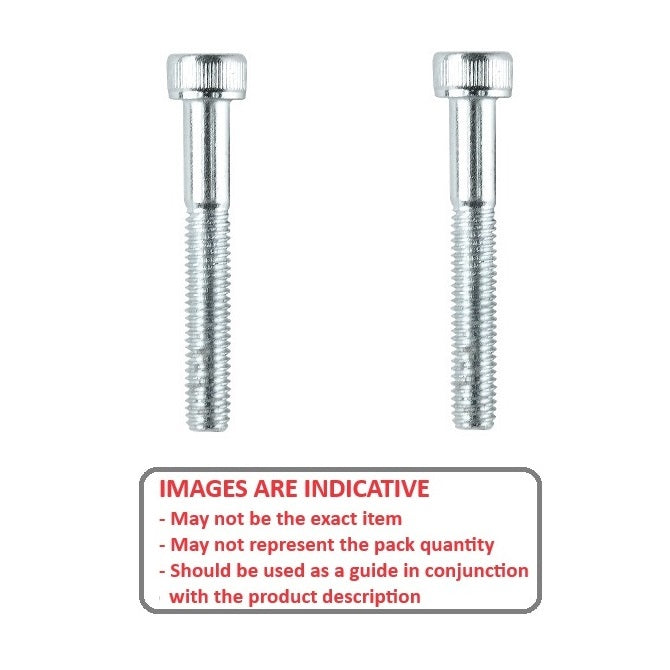

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Socket Cap Screws - 10-24 UNC - 4.76mm - 31.8 mm - Zinc Plated Steel
1 4

Brighton Best

Store Name: Small Parts & Bearings

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$41.05 AUD
$41.05 AUD
per 50
Backorder
Order 50 or more pack (2500 pcs) for $36.95 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Aug 02, 2025

Base Category: Screws - Socket Cap

Top Level Category: Screws - Socket Cap - Zinc Plated

Product Details:

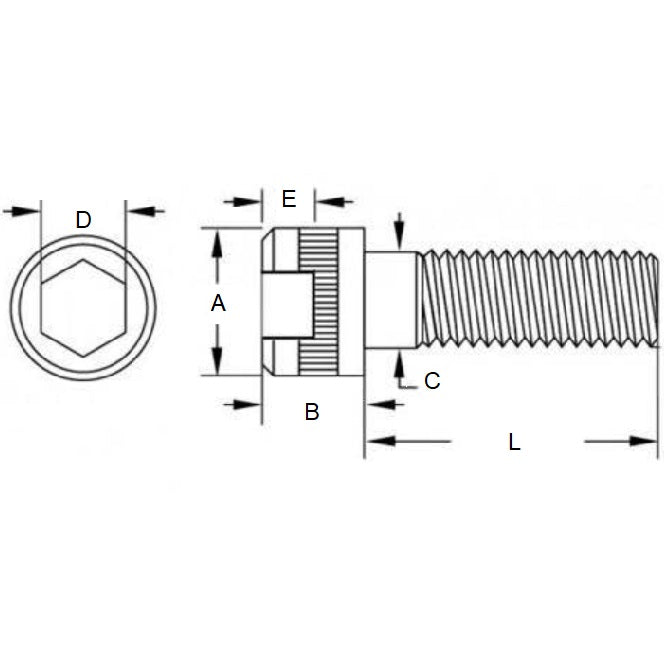

Thread Size (C): 10-24 UNC (4.76mm)
  • Thread Length (L): 31.8mm
    (31.8mm is 1.252 in.)
  • Material: Zinc Plated Steel
  • Head Length (B Max.): 4.8mm
  • Head Diameter (A Max.): 7.9mm
  • Drive Depth (E): 2.29mm
  • Shank Diameter (C): 4.67 - 4.83mm
  • Hex Key (D): 3.97 (5/32)mm
  • Pitch: 1.058mm
  • Threads Per Inch: 24TPI
  • Min thread Length: 22.3mm

Brand: Brighton Best
Country of Origin: TW

Product Compliance and Data

Alternative Parts Include:

  • Brighton Best 872113
  • ALTPART 90128A225

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
